EAVISION E-A2020 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Intelligent Multi-rotor Plant Protection UAV
User Manual
2020.04
V1.0
E-A2020 Economic Version
Suzhou Eavision Robotic Technology Co.,Ltd.
Address: Unit 1-A, No.3 Workshop, 28 Xiasheng Road, SIP, Suzhou, China
Website:
www.eav.top
Tel：4008002872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-A2020 and is the answer not in the manual?

Questions and answers

Related Manuals for EAVISION E-A2020

Summary of Contents for EAVISION E-A2020

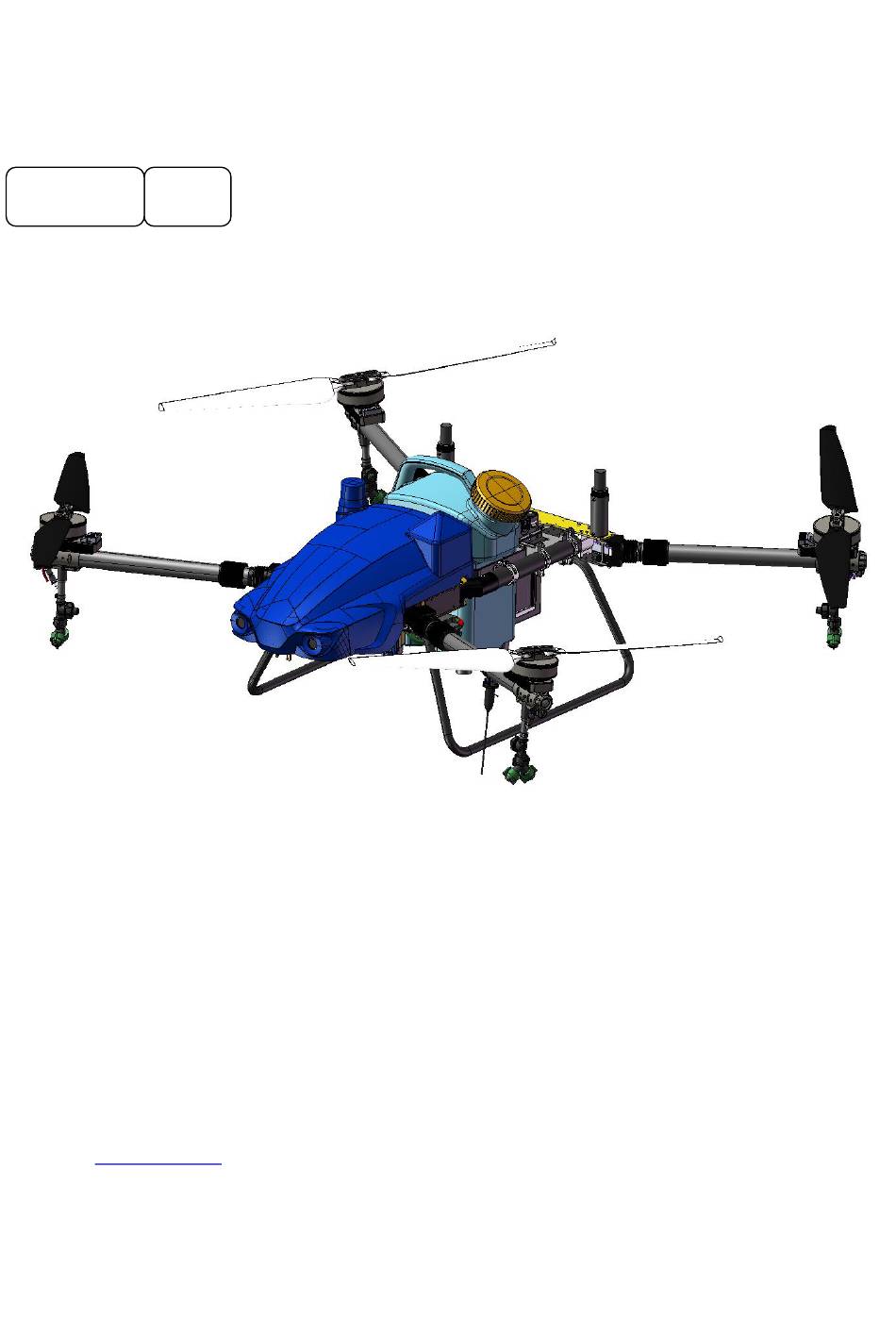

  • Page 1 Intelligent Multi-rotor Plant Protection UAV User Manual 2020.04 V1.0 E-A2020 Economic Version Suzhou Eavision Robotic Technology Co.,Ltd. Address: Unit 1-A, No.3 Workshop, 28 Xiasheng Road, SIP, Suzhou, China Website: www.eav.top Tel：4008002872...
  • Page 2 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 3: Table Of Contents

    Content 1. Product Overview ....................1 2. Disclaimer ......................3 3. UAV System ....................... 4 3.1 UAV Composition ....................5 3.2 UAV Parts Composition ..................6 4. Technical Parameters .................... 7 4.1 Frame Parameter ....................7 4.2 Spray Parameter ....................7 4.3 Battery Parameter .....................
  • Page 4 8.2 Team Management ..................45 8.3 Employee Management ................... 46 8.4 Plot Management ..................... 48 8.5 Work Detail ....................... 52 8.6 Task Management .................... 53 9. Offline Operation Procedure ................55 9.1 Connect to the Remote Control ..............57 9.2 Mapping ......................57 9.3 Operating ......................

  • Page 5: Product Overview

    1. Product Overview E-A2020 Series full-scope perception intelligent plant protection UAV is an intelligent multi-rotor plant protection UAV released by Suzhou Eavision Robotic Technologies Co., Ltd. Based on the industry-leading stereovision technology, the UAV can complete plant protection services of various fields crops and cash crops. It has...
  • Page 6 Data Management: The supporting agricultural data management system can help ▪ improve operation management efficiency and increase economic value. Intelligent Battery: 3C fast-charging is available, and the battery can be maintained ▪ autonomously. Battery charging and maintenance more convenient than the previous generation.

  • Page 7: Disclaimer

    EAVision. The excellent performance of this product depends on the original accessories of EAVision. EAVision shall not be liable for any loss or injury caused by not using the original accessories.

  • Page 8: Uav System

    Once you use this product, you will be deemed to have read the relevant regulations and documents. EAVision will not be responsible for any legal liability arising from the use of this product in violation of the laws and regulations.

  • Page 9: Uav Composition

    3.1 UAV Composition E-A2020 Series full-scope perception intelligent plant protection UAV can plan the flight route in real time through intelligent algorithm, and it can operate with high efficiency. With GPS/RTK positioning technology, the positioning precision of E-A2020 series can reach centimeter-level. The structure of the UAV is as follows:...

  • Page 10: Uav Parts Composition

    Figure 3 UAV Parts Spray Nozzle Antenna 2.4G Holder 3.2 UAV Parts Composition The integrated remote control is a UAV intelligent data link system integrating the functions of high-definition digital image transmission, remote control data transmission and centimeter-level positioning. It integrates ESC calibration, voice broadcast, one- button parameter-setting and other practical functions to improve work efficiency and reduce complex setting.

  • Page 11: Technical Parameters

    Figure 4 Integrated Remote Control 4. Technical Parameters 4.1 Frame Parameter Wheelbase：1085mm@front & ➢ back Dimensions（exclude ➢ 1340mm@left & propeller）： right Φ1820*510（mm） Arm Length：506mm Size (folded)：920*650*510 ➢ ➢ Weight (no load)：24.1kg （mm） ➢ (including 8 spray nozzles) 4.2 Spray Parameter Chemical Tank Capacity：...

  • Page 12: Battery Parameter

    Operating Height：1-4m Spray Range：1~5（m） ➢ ➢ Nozzle Quantity：8（double- Operating Area Per Time: 1.3 Ha ➢ ➢ nozzle） 4.3 Battery Parameter Suitable for EAVision E-A2020 temperature） ➢ Battery Type: Lithium Battery 13S Charging Temperature：0-- ➢ ➢ Voltage：48.75V 45℃（environment ➢ Power：975Wh temperature）...

  • Page 13: Battery

    Battery Capacity：8000mAh ➢...

  • Page 14: Check List Before Use

    5. Check List before Use 5.1 Materials ⚫ Integrated Remote Control ⚫ E-A2020 Series Full-scope Perception Intelligent Plant Protection UAV ⚫ EAVISION Agriculture APP ⚫ Battery ⚫ Charger（remote control charger，main battery charger） 5.2 Remote Control ⚫ Check whether the remote control antenna is damaged and whether the screws are loose.

  • Page 15: Operating Instructions

    6. Operating Instructions 6.1 APP Installation The EAVISION Agriculture APP can run in Android 4.2 version and above. Scan the QR code to download the APP and install it. Figure 5 QR Code for APP Installation...

  • Page 16: Function Check

    VK-fly, you can set it on the remote control APP). Enter EAVISION Agriculture APP, tap Settings → Controller → Bluetooth. Select the Bluetooth of the remote control (start with 300) and the operation model (left throttle model).
  • Page 17 6.2.2 Remote Control Calibration Compare with the amount of rudder travel of the remote control channels on the APP and confirm whether the amount of rudder travel of the remote control channels need to be reversed. If the definition of pros and cons of the channel is not in accordance with what the APP displays, then the amount of rudder travel need to be reversed in the debug software of the remote control.
  • Page 18 ➢ Put the rocker and the key in the middle position, tap “Calibrate Controller” in the “Calibration” page on the APP or toggle Channel 7 for 6 times to enter calibration mode, the LED light will become purple and it will flash 3 times, which means that it has entered calibration mode.
  • Page 19 6.2.3 Motor Check ESC Calibration 1） Remove the blades, push the aileron and accelerator of the remote control to the maximum at the same time, and then power on the flight control and the ESC concurrently, the flight control will enter the ESC calibration mode, purple light flashes 4 times.
  • Page 20 6.2.4 Flight Settings Complete plant protection and flight settings as the figures below. Figure 9 Plant Protection and Flight Settings...
  • Page 21 6.2.5 Firmware Check Check the firmware version. Make sure the firmware is the latest version. Figure 10 Firmware Version Check 6.2.6 Water Pump/Flowmeter Test In order to achieve precise spray, the flowmeter and water pump should be calibrated before use.
  • Page 22 Before calibrating the water pump / flowmeter, check the spray system first. For example, add 10L chemical into the chemical tank first, turn on the water pump, and check whether the spray system works normally. If there is air bubble in the water pipe, check whether the pipeline joint is loose.
  • Page 23 6.2.7 Flight Calibration 1）Voltage Calibration The main battery voltage detected by the flight control system may deviate from the actual battery voltage. At this time, you need to calibrate the voltage. Fill in the real battery voltage on the “Real Voltage” of “Flight Calibration” page, and then tap “Calibrate”...
  • Page 24 6.2.8 Preliminary Parameter Setting Parameter setting is very important, setting error will directly lead to crash accident. Enter “Advanced”, select the four-axis X-shaped plant protection UAV model on the machine model setting page; enter “Algorithm”, and ensure that the flight control installation mode is consistent with the actual installation.
  • Page 25 Figure 12 Parameter Setting Deviation of GPS Installation...

  • Page 26: Debug During Flight

    6.3 Debug during Flight 6.3.1 Magnetic Compass Calibration After finishing the installation check, the UAV can be tested in the field. Magnetic compass calibration should be completed before the flight. The calibrating method is as follows: ➢ Toggle the Channel 5 of the remote control for 8 times consecutively or enter the “Flight Calibration”...
  • Page 27 ➢ Rotate the UAV with the head points up. If the indicator light (blue) flashes, it means calibration succeeded; if the indicator light turns red, it means calibration failed, and the UAV needs to be calibrated again. 6.3.2 Debug of Sensitivity For the first flight, please confirm whether the angle of the UAV is correct.
  • Page 28 ① R / P Gain: adjust the gain in the attitude mode first. The default value of 120 can be adopted (please set this parameter to 100 for the UAV whose blades are more than 30 inches). In the attitude mode, don’t move the bar, observe the self-stability ability of the UAV.
  • Page 29 vibration of the UAV to a certain extent. If the gain in the basic parameters can’t restrain the shake of the UAV, try to set this parameter to 0. Generally, 3 or 4 can meet the flight requirements. This value can be increased steadily only after slight shaking occurs in the middle position when turning the angle back in the attitude mode.

  • Page 30: Task-Setting

    6.3.3 Debug of UAV Type Figure 14 Debug UAV Type 6.3.4 Horizontal Calibration Figure 15 Horizontal Calibration 6.4 Task-setting Figure 16 Display of Flight Information...
  • Page 31 The current status of UAV is displayed in the front of the operation interface. The button functions are: battery power, flight altitude, flight speed, distance from HOME point, GPS signal, flight time, flow rate, area that has been sprayed, dosage that has been used, and remote control signal strength.
  • Page 32 hovering mode, record the coordinates of point B. After the point B is recorded successfully, the LED will flash twice with purple light. ➢ When the recording is completed, toggle Channel 5 switch to AB mode, and then the roll channel gives a left / right full stroke action. At this time, the UAV starts to execute AB mode, and it will fly left / right continuously.
  • Page 33 Figure 17 Operating along AB Point Left Right 6.4.1.2 Real-time Adjustment during the Flight in AB Mode Adjust the Length 1） In order to meet the need of irregular plots, the length of AB point can be adjusted in real time through the pitch rocker during the flight. The operation is as follows: ➢...
  • Page 34 ➢ Shorten of AB Point: when the UAV flies to the place that is close to the shorten position, move the pitch rocker (push or pull, push at the far end, pull at the near end), and the UAV will fly forward slowly at the speed of 2m / s. When it reaches the extended position, return the pitch rocker to zero, the UAV will stop, and then start to copy the corresponding route.
  • Page 35 Take off manually. Turn the Channel 5 switch to AB mode when the UAV is in GPS hovering mode, the UAV will hover at a certain position. Push the pitch channel forward, the UAV will enter the breakpoint resuming mode of AB mode and fly to the place where the UAV exits the AB mode and continue to execute AB mode.
  • Page 36 6.4.1.4 Obstacle Avoidance in AB Mode Avoid Obstacle Manually 1） When the UAV is operating in AB mode, if it encounters obstacles in front, move the roll bar, the UAV will stop. Then move the roll bar horizontally to a safe value, you can operate the pitch bar.
  • Page 37 4 planning methods, including mobile phone / remote control / UAV / RTK base station / map are available in EAVision Agricultural System, among which remote control / UAV can use RTK high-precision dotting (if the UAV is configured with RTK).
  • Page 38 Exit “Controller”, enter “Mapping” page, tap the “Settings” button in the lower right corner, and then select “Controller” , the Qianxun SI RTK high-precision mapping is available. During the mapping, you can enter the fine-tuning mode to adjust mapping point / obstacle point / calibration point by tapping the boundary point icon, as shown in the following figure: Figure 23 Fine-tuning of Mapping Point...
  • Page 39 After completing the mapping point, obstacle point (not necessary) and calibration point (not necessary), tap the “Upload” button to upload the plot to the server. 6.4.2.2 Flight Route Planning Flight Route Parameters 1） ➢ After planning the plot, edit it to generate a flight route. The flight route can also be edited.
  • Page 40 ➢ Select different sides (side 1 / side 2...), the planned route will be parallel to the selected edge (orange light on). A safe distance can be set in each side, and the safe distance can be set by tapping the increase and decrease buttons, or by entering numbers directly.
  • Page 41 Figure 25 Intelligent Planning Mileage...
  • Page 42 Delete Waypoints 2） In the actual operation process, there may be several routes in the middle of a plot that do not need to be operated. You can delete the routes that do not need to be operated by deleting the waypoints. The specific operation is: tap to delete the starting point of the route, enter the ending point of the route to be deleted in the pop-up, and then tap “Confirm”, as shown below: Figure 26 Delete Waypoints...
  • Page 43 again or tap “Clear Help Point” to clear the help point. Figure 27 Set Help Point 6.4.2.3 Fly Autonomously After setting the flight height and uploading the flight route in the “Flight Monitoring” page, tap “Takeoff” - > “Work”, the UAV will fly to waypoint 1 for operation.

  • Page 44: Data Management

    operation. ➢ The flow rate can be set as fixed water pump output or automatic adjustment of flow rate per hectare. 7. Data Management 7.1 Data Downloading and Firmware Upgrading The storage device in the flight control system will record the flight data in real time, and one-time unlocking and locking constitute the starting and ending of a complete sortie.

  • Page 45: Account Management

    8. Account Management Here is the detailed introduction to the management of enterprise operator account. Figure 28 Management Page of Enterprise Operator The content of account management of the enterprise operator includes: device management, team management, employee management, plot management, plot operation record, task management and orders. 8.1 Device Management...
  • Page 46 8.1.1 Activate Process A new UAV must be activated before the device can be bound to a specific account. The specific steps are: power on the UAV, connect to the APP, enter “Management” - > “Device Management”, tap “Activate New Device”, and the following page will display the flight control ID information of the UAV.
  • Page 47 Tap any UAV in the list to view the details of the UAV. Figure 30 Basic Details 8.1.2 Lock and Unlock For the UAV under the account authority, tap the lock / unlock button in “Details” to lock or unlock the UAV remotely. Please note that if the UAV is...
  • Page 48 locked, flight operation will be unavailable even if the UAV is powered on. Figure 31 Lock/Unlock the Device 8.1.3 Transfer Tap “Transfer” in “Details”, a transfer dialog box will pop up. Tap “Confirm” to scan the QR code of the transferee’s account, and the UAV will be transferred to the transferee.

  • Page 49: Team Management

    in the figure to zoom in the track view; tap to replay the UAV status in flight; tap to adjust the playback speed, which can be as fast as 8 times. 8.2 Team Management In order to better manage the plant protection service team and optimize the data statistics, we have established the team management mode.

  • Page 50: Employee Management

    In the figure, the role of the operator account in “商丘中原植保队1队” is administrator and team leader. ➢ The plot planned by team members can be seen by the whole team. ➢ Team leader can view the detailed operation information of anyone in the team ➢...
  • Page 51 Employee” at the bottom of the page. Figure 35 Employee Management Name：Name of the employee Account：Phone number of the employee Account Enablation: Turn on the button, input the phone number of the employee to get the verification code, and then input the verification code and login the APP.

  • Page 52: Plot Management

    Tap the employees in “Employee List” to enter “Edit Employee Info” page (as Figure 37), and then you can edit “Name”, “Account”, “Account Enablation” and “Position” again. Authority Level: Enterprise Administrator > Business Administrator > Ordinary Employee Figure 36 Edit Employee Information 8.4 Plot Management Tap “Plot Management”...
  • Page 53 1）New Plot: Tap “New Plot”, select a team. After confirming the team, enter the mapping page and walk to the turning point of the plot boundary with the mapping device. on the page, a boundary point will be displayed on the map, as shown in the following figure: Figure 38 Mapping the Plot...
  • Page 54 After determining all the boundary points and boundary lines, tap , and the icon will turn to . Then you can mark the obstacle. Move to the obstacle with the mapper, tap , the obstacle point will appear on the map, as shown in the following figure.
  • Page 55 Figure 40 Mapping the Calibration Points Enter the plot in the list, such as “巴西”. Enter the “Plot Detail” of “巴西”, as shown in the figure below. Figure 41 Plot Detail...

  • Page 56: Work Detail

    Modify: Modify the plot shape and add calibration points and obstacles. Delete: Delete plot information. Share: Share a plot to another account. Cut: Unavailable at the moment. 8.5 Work Detail Tap the “Work Detail” to enter the list of plot operation records. Select any plot to view the operation information of the plot, as shown in the following figure.

  • Page 57: Task Management

    8.6 Task Management Tap to enter “Task Management” page, and then tap “Create a New Task” to create a new task, as shown in the following figure. Figure 43 Create a New Task...
  • Page 58 Start Time: the time to start the task (sufficient preparation time); Task Name: It can be edited according to your needs; Location: Select the scope of province, city and district; Detailed Information: Detailed location information in the district; Estimated Area: fill in the estimated area according to the actual situation; Crops: Field crops (such as wheat, rice and corn) and cash crops can be selected according to the actual situation;...

  • Page 59: Offline Operation Procedure

    9. Offline Operation Procedure 9.1 Connect to the Remote Control Enter the EAVISION Agriculture APP first, then tap “Settings”, select the device whose number starts with “300” (remote control), tap “Connect”, then your phone will be connected to the remote control.

  • Page 60: Mapping

    9.2 Mapping Enter EAVISION Agriculture APP, search for the base station. Find the base station which the device name starts with “HC”, tap “Connect” to connect your phone to it. After it is connected, choose “Enter Location Mode”. Tap “Mapping” in the interface and then go to the plot with your phone, remote control and the base station.

  • Page 61: Maintenance Instructions

    10. Maintenance Instructions In order to ensure flight safety and keep the UAV in the best status, users should regularly maintain the plant protection UAV. 10.1 Content and Cycle of Maintenance ⚫ Every 5～10 Sorties Check whether the strainer and pipe are blocked. If there are, please ➢...

  • Page 62: Battery Maintenance And Cautions

    ⚫ Main Battery: Replace it when the charge and discharge cycles exceed 560 or the battery has been used for 12 months. ⚫ Water Pump: Replace it when the total operating area reaches 120 Ha. ⚫ Pressure Spray Nozzle: Replace it when the total operating area reaches 120 ⚫...
  • Page 63 ⚫ Don’t use any unofficial charger for charging. ⚫ Don’t use or store the battery near fire, heat source, inflammable, explosive, corrosive and other articles. ⚫ For long-term storage, please fully charge the battery and charge it every 3 months to maintain the stability of the battery. ⚫...

  • Page 64: Warranty Services

    11. Warranty Services 11.1 Application Range of Warranty Services 1. Products with free warranty service must meet the following conditions: ⚫ Function well within the specified product warranty period; ⚫ Product performance failure and other quality reasons; ⚫ The UAV code, factory label and other marks are consistent with the information in the order confirmation sheet, and there is no sign of tear or alteration;...

  • Page 65: Part List Of Warranty Services

    operators beyond normal use conditions; ⚫ Users or operators modify or add equipment that does not meet the requirements of official instructions and guidance; ⚫ Any manmade reason or external force reason that is not Party A's responsibility; ⚫ Direct or indirect fault or loss caused by flight under unseaworthy conditions (such as equipment alarm, bad weather, etc.);...

  • Page 66: Nameplate

    Part Name Warranty Period FC Module 12 months Chemical Tank 12 months Remote Control （including receiver） 12 months Frame 12 months 560 cycles or 12 months, whichever comes Main Battery first Main Battery Charger 12 months ESC Module 12 months 200 hours（total working hours）or 6 Motor months, whichever comes first...
  • Page 67 Thank you for using our products. Published by Suzhou Eavision Robotic Technologies Co., Ltd Suzhou Eavision Robotic Technologies Co., Ltd All rights reserved. Version：202004V1.0 EAVision Official Wechat Account...
