RCA RDR1520 Quick Start Manual

RDR1520
Digital Radios
Communications Systems
What's Included:
RDR1520
TM

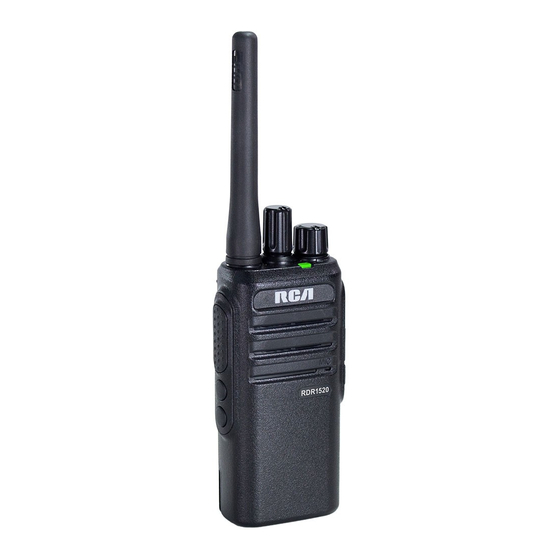

Handheld Radio
Antenna
ANH1520U - UHF models
ANH1520V - VHF models
PS1521
Power Supply
All manuals and user guides at all-guides.com
TM
B1520LI
Li-Ion Battery
(2000 mAh)
BC1520
Belt Clip
CH1521
Desktop Rapid Charger
QUICK START GUIDE
Attaching the Battery:
Line up battery guide slots and
slide into place until it locks in.
Attaching Belt Clip:
Align the screw
holes and use a
small screwdriver
to fasten screws.
ATTENTION:
• Remove Battery
• Do Not Use
Power Tool
• Use Screwdriver
Only
Charging the Battery:
Slide battery into the
charging base with or
without the radio attached.
Secure battery in place,
Red LED will be on when
charging.
Note: Charge a new battery 12 to 14 hours before initial use for
best performance. Maximum battery capacity is normally achieved
after two or three full charge / discharge cycles.
Attaching the Antenna:
Be sure radio is
off, line up screw
threads and twist
antenna clockwise
until it is secure.
Connecting the Charger:
Plug power supply into the outlet
and connect the other end to
charger base.
