Radio flooding detector
Description
This device generates an alarm signal when the contacts of the corresponding sensor
make contact with water.
The signal is then processed by the alarm central unit, which activates the siren and the
Telephone communicator (if installed), for sending a telephone message.
Better protection can be ensured by installing a relay actuator within the Burglar-Alarm
system, which will order an electrovalve to shut off the main water supply in case of
flooding.
Two front pushbuttons can be used to interrupt the alarm signalling and to test the
operation of the sensor.
Technical data
- Power supply: Battery 3 V type CR2032
- Operating temperature: 5 – 40°C
- Minimum battery duration: 2 years
- Radio frequency: 868 MHz
- Range: 100 metres free field
(metal, concrete walls and metal plates reduce coverage)
- Modulation: FSK
CONFORMITY DECLARATION
Items HA/HB4619 and L4619 comply with the essential requirement of directive 1999/5/
CE as they meet the following standards:
- ETSI EN301 489-3
- ETSI EN300 220-3
Year of approval of the CE mark in accordance with the above directive: 2007
Dimensional data Dimensional data
4
100
4
115
MQ00056-c-EN
HA4619

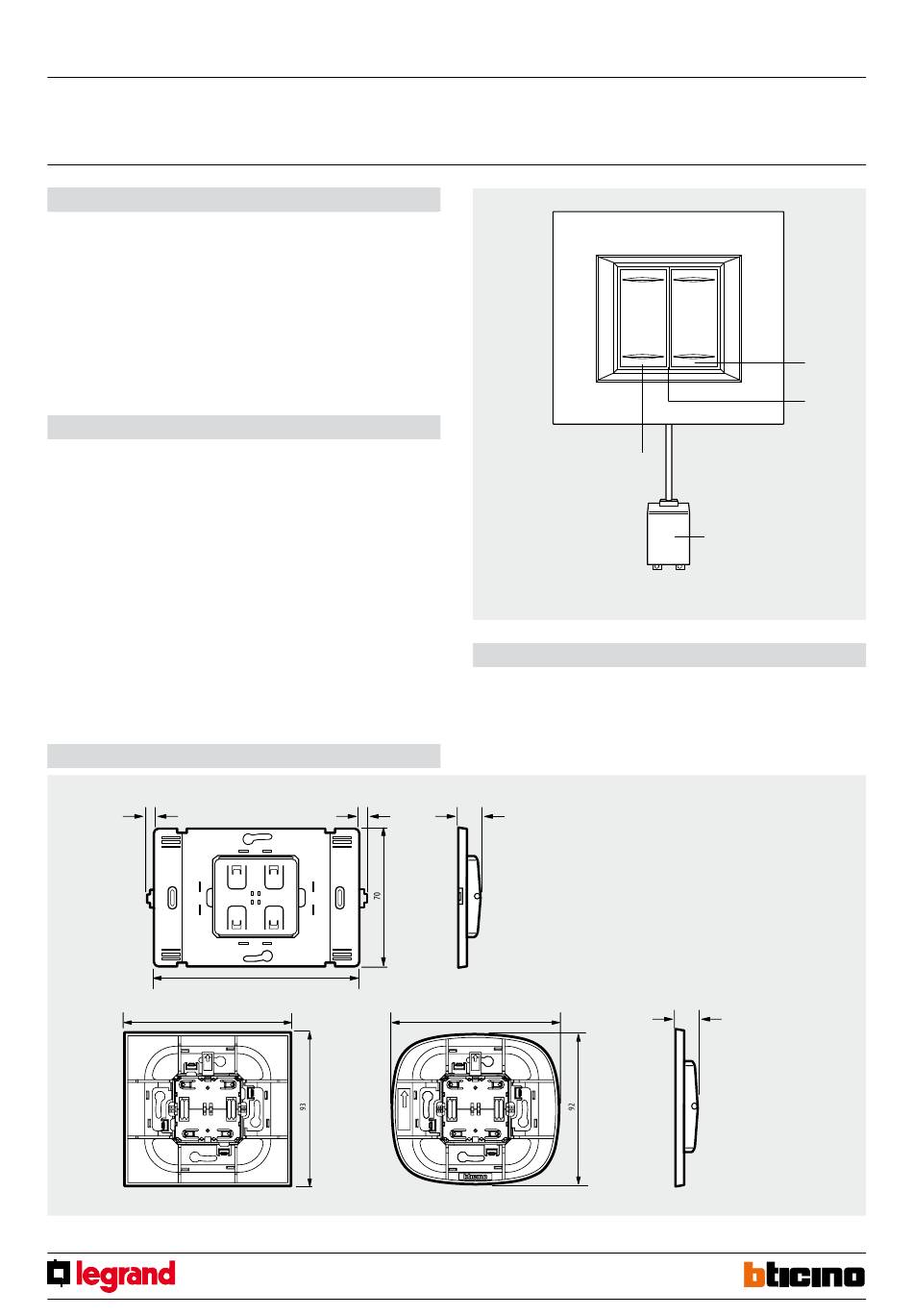

Front view
Flooding detector item HA4619 with front cover plate
Legend
1 - Reset key;
2 - LED: If the TEST or RESET pushbutton is press for 1 second, the LED will normally flash
twice; if the battery is exhausted the LED will only flash once;
3 - Flooding probe;
4 - TEST pushbutton.
10
item L4619
100
19/05/2014
HB4619
1
2
4
3
10
item HA/HB4619
L4619
