1. Introduction
ZL-6x0A series thermostat are suitable for control of cold storage, seafood storage, water heater, and
so on.
2. Main Function
Cooling or heating mode
Periodic or intellectual defrost
Fan control
Temperature calibration
High/low over temp. warning
3. Models
4. Model
ZL-610A
ZL-620A
Cooling/heating
ZL-630A
4. Main Specification
Sensor wire: 2 meters
=5K, B
Sensor: NTC(R
25℃
Setting range: -40~120℃
Display range: -50~130℃
Power supply: 185~245Vac, 50/60Hz
Terminal wire: ≤ 2*1.5mm
Load: 3A, 10A, 250Vac (resistance)
5. Operation

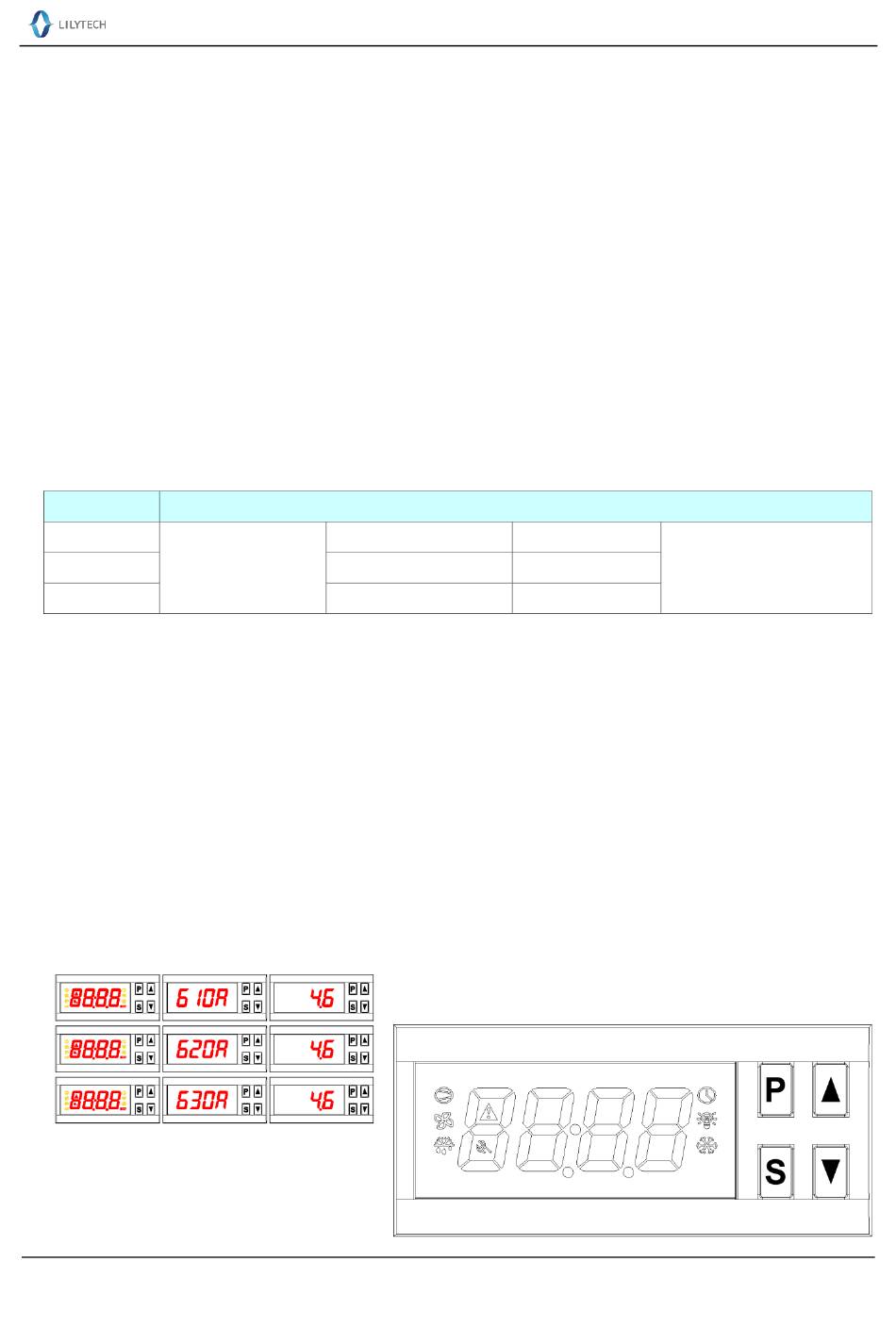

5.1 Power-On Display
After power on, all LED unit will be on, then model name, and firmware version:
5.2 Display Icon
ZL-6x0A Temperature Controller
Instruction Manual,
Periodic defrost
Intellectual defrost
Intellectual defrost
=3470K)
25/50℃
2
2
, or 1*2.5mm
P
P
Page 1, Total 8 Pages
V4.6b
Temp. output delay protection
Sensors failure warning
Buzzer warning
External warning input
Function
Fan control
Storage: -30~70℃
Working: -10~45℃
Working: 5~85%RH without dew
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Dimension: L78 x W34.5 x D71 (mm)
Installation drilling: L71 x W29 (mm)
Suzhou Lily Tech. Co., Ltd.
External warning input
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lilytech ZL-6 0A Series
Summary of Contents for Lilytech ZL-6 0A Series
- Page 1 Suzhou Lily Tech. Co., Ltd. ZL-6x0A Temperature Controller Instruction Manual, V4.6b 1. Introduction ZL-6x0A series thermostat are suitable for control of cold storage, seafood storage, water heater, and so on. 2. Main Function Cooling or heating mode Temp. output delay protection Periodic or intellectual defrost Sensors failure warning Fan control...
- Page 2 Suzhou Lily Tech. Co., Ltd. Icon Function Blink Temp. Output Energized Deenergized Delay protecting Defrost Defrosting Not defrosting Dripping water Mode Cooling mode ---- ---- Mode Heating mode ---- ---- Maintenance Need maintenance No failure found ---- Warning Has warning No warning ---- 5.3 Digital Display...
- Page 3 Suzhou Lily Tech. Co., Ltd. Parameter Code Table Function Range Remark U10 Temp. output stop protection time 0~100 min ● ● ● U11 Temp. output run protection time 0~100 min ● ● ● U12 Temp. output run frequency Only for cooling mode, 0 = disable ●...
- Page 4 Suzhou Lily Tech. Co., Ltd. U61 External warning delay 0~120 min ● ● ● U62 Buzzer warning 0 = disable, 1 = enable ● ● ● 0: Room temperature 1: Room temperature before defrost U70 Display during defrosting ● ● ●...
- Page 5 Suzhou Lily Tech. Co., Ltd. 6.4 Fan Control Mode (for ZL-630A) *. U43 = 0: Controlled Mode When cooling, if Tpipe < U40, and Temp._output has run for U41, fan energized; If U41 = 0, fan will be energized right after the Temp._output energized. After Temp._output has de-energized for U42, fan de-energized.
- Page 6 Suzhou Lily Tech. Co., Ltd. Dripping Water: after defrost finished, the device will be dripping for U33, then start cooling again. Note: No dripping function: when the manual forced defrost finished, or when the pipe sensor fails. Check for Tpipe, Left Time of Defrosting, Left Time of Dripping Water: When Troom displayed, press〖▲〗will show Tpipe.
- Page 7 Suzhou Lily Tech. Co., Ltd. 12. Checking Controller Information Keep〖S〗and〖▲〗depressed simultaneously for 5 sec, the controller’s model and version will display. 13. Installation Warning！ Avoid to install controller in the following environment: ⚫ More wet than 90%RH, or easily dew; ⚫...
- Page 8 Suzhou Lily Tech. Co., Ltd. Electrical Wiring Page 8, Total 8 Pages...
