Lilytech ZL-1000 Instruction Manual

Introduction

ZL-6290A (ZL-1000) has two outputs, one for cooling, one for heating, to regulate temperature to a set-point.
It will judge heating or cooling mode automatically.

Main Specification

Sensor: NTC
R = 10K, B = 3435K; R
25 ℃ 25/85 ℃
Setting range: -50.0 ~ 99.0℃, or -58.0 ~ 210.2℉
Display range: -50.0 ~ 99.9℃, or -58.0 ~ 211.8℉
2
Terminal: 2*1.5mm or 1*2.5mm
Outputs: 10A * 2, 250Vac (under pure resistance load)

Keypad and Display

Key
Key
On/off
S
Set
Down
Up
LED lamp
LED Function
Set Set parameter
Cool Cooling
Heat Heating
LED digit
Display the information, 2Hz blinking.
Warning
E1 Sensor Failure (Short or open)
Temperature over the sensing up limit (
HH
Power up (reset) display
Display the following information consecutively: all LED units, model name, software version

Operation

On/off line
Keep key depressed for 5 seconds to switch online/offline.
Fast check parameters
When not in parameter setting status:
to display heating hysteresis (HYS-H) for 2 seconds, and the Set LED blinks in 2 Hz.
Short press
to display cooling hysteresis (HYS-C) for 2 seconds, and the Set LED blinks in 2 Hz.
Short press
S
" key to display temperature Unit (Fahrenheit or Celsius) for 2 seconds, and the Set LED blinks in 2 Hz.
Short press "
to display set-point (SP) for 2 seconds, and the Set LED blinks in 2 Hz.
Short press

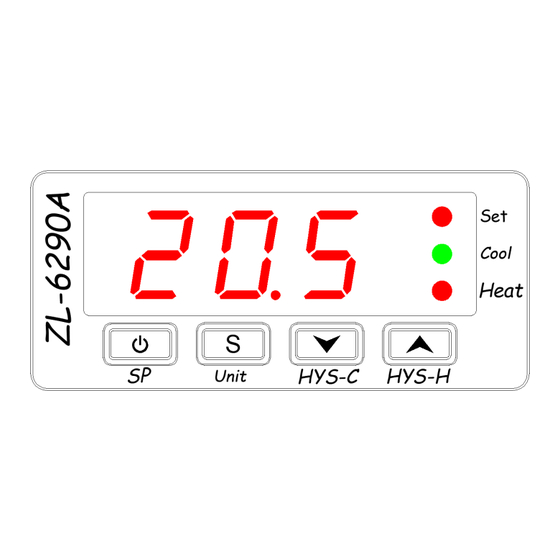

ZL-6290A (ZL-1000) Temperature Controller
= 5K, B
25 ℃ 25/50 ℃
2
Function
Fast check Set-point
Fast check Temperature Unit
Fast check Hysteresis for Cooling
Fast check Hysteresis for Heating
On
Setting status
R1 is energized
R2 is energized
Instruction Manual A1.3
Working: -10~45℃, 5~85%RH without dew
Case materials: PC + ABS fire proof
= 3470K
Protection level: IP65 (Front side only)
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Off
R1 is de-energized
R2 is de-energized
Remark
99.9℃ or 211.8℉)
Page 1, Total 3 Pages
Suzhou Lily Tech. Co., Ltd.
Blinking
Display fast check result (
Delay protection for R1 (keep de-energized)
SP, Unit, Hysteresis )
