Lilytech ZL-7850R Manual

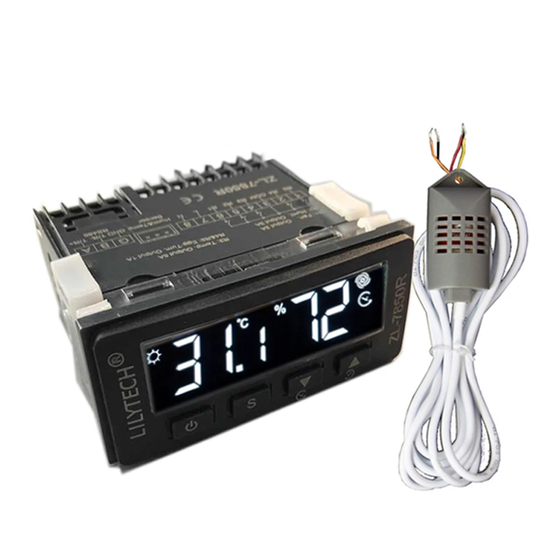

ZL-7850R Temperature and Humidity Controller
Feature
Sensor cable could be extended to 50 meters.
Supper high humidity control with the optional sensor ZL-SHr05P.
High absolute temperature accuracy.
Output R1: Could be energized when over hot and/or over wet. Could drive an air exhausting fan, or an alarming indicator.
Two timers: One timer output is R1, could drive an air exhausting fan periodically.
Another timer outputs R4 and R5 could drive such as incubator egg tray.
RS485 communication.
Function
Besides the function introduced in
Heating / Cooling mode option.
Humidifying / de-humidifying mode option.
R4 and R5 could be energized by keys, suitable for control the egg tray to any angle.
Hight / low temperature / humidity alarm.
Sensor failure alarm and outputs protection.
Running status saving for power supply failure.
Calibration for temperature and humidity.
Temperature and humidity output delay protection.
Specification
Power supply: 100 ~ 240Vac, 50/60Hz
Sensor: Factory provided cable length is 2 meters
Accuracy: Temperature: 1% / 25℃
Humidity: ±3% (with the sensor ZL-SHr05J)
±2% (with the sensor ZL-SHr05P)
Setting range: Temperature: 0.0 ~ 65.0℃
Humidity: 0 ~ 80%RH (when U9 = 0 for ZL-SHr05J)
0 ~ 99%RH (when U9 = 1 for ZL-SHr05P)
Display range: Temperature: -20. ~ 80.0℃
Humidity: 0 ~ 99%RH
Outputs: Temperature control: R3 ≤ 5A
Humidity control: R2 ≤ 3A
Multi-function: R1 ≤ 3A
Timer outputs: R4 and R5 ≤ 1A
Working environment:
-10 ~ 45℃, no more than 85%RH, without dew
Case dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS, fireproof
Protection level: IP65 (Front side only)
Display
Model and version display

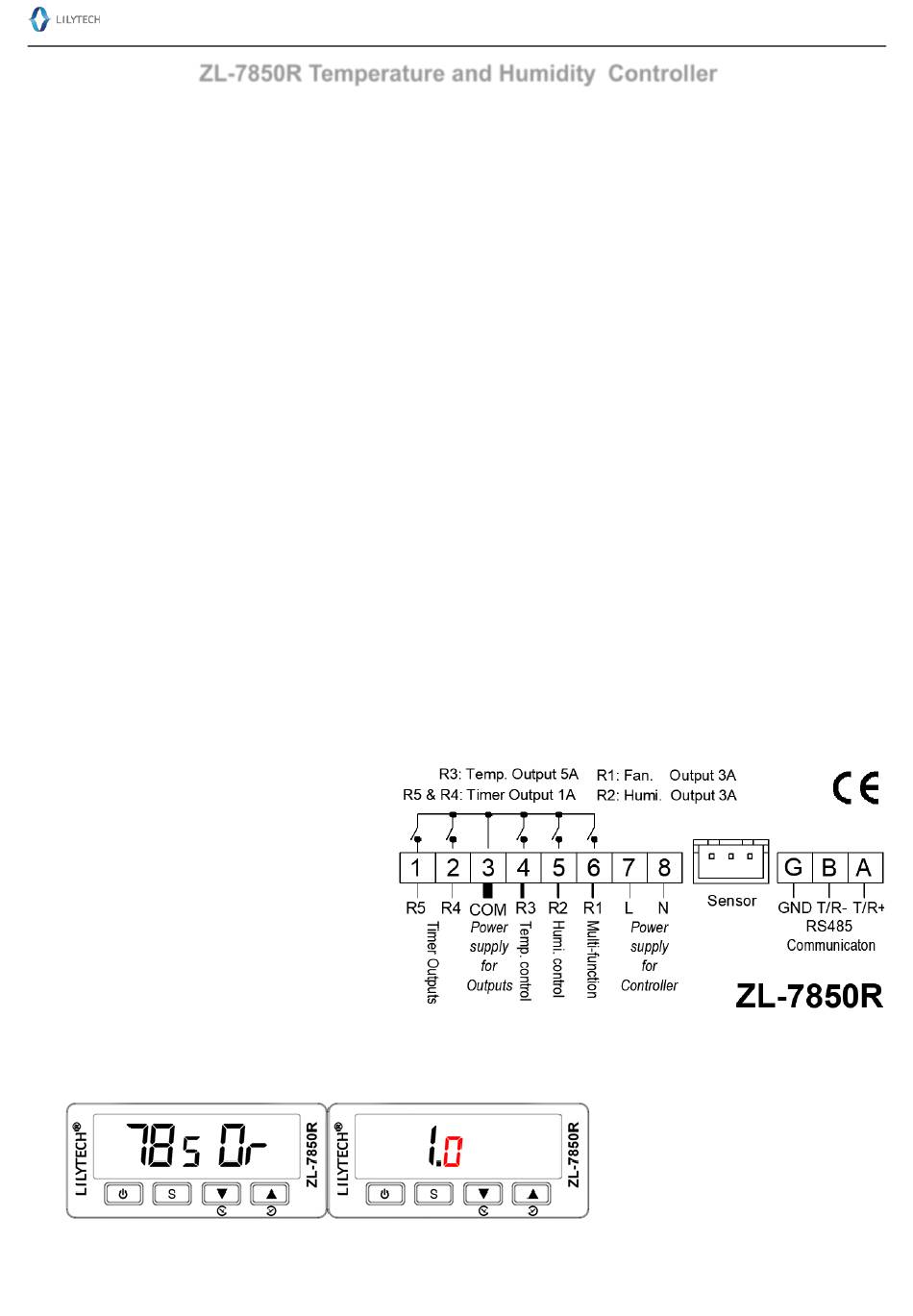

After power supplied, the controller will display the model "7850R" and the version "1.0":
Version 1.0d
Feature
:
Page 1, Total 7 Pages
