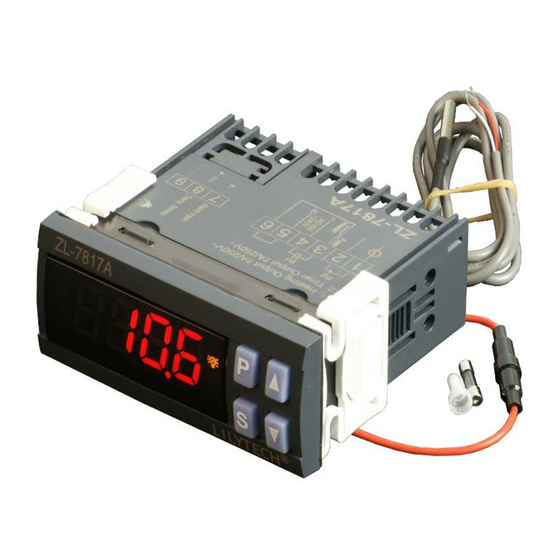

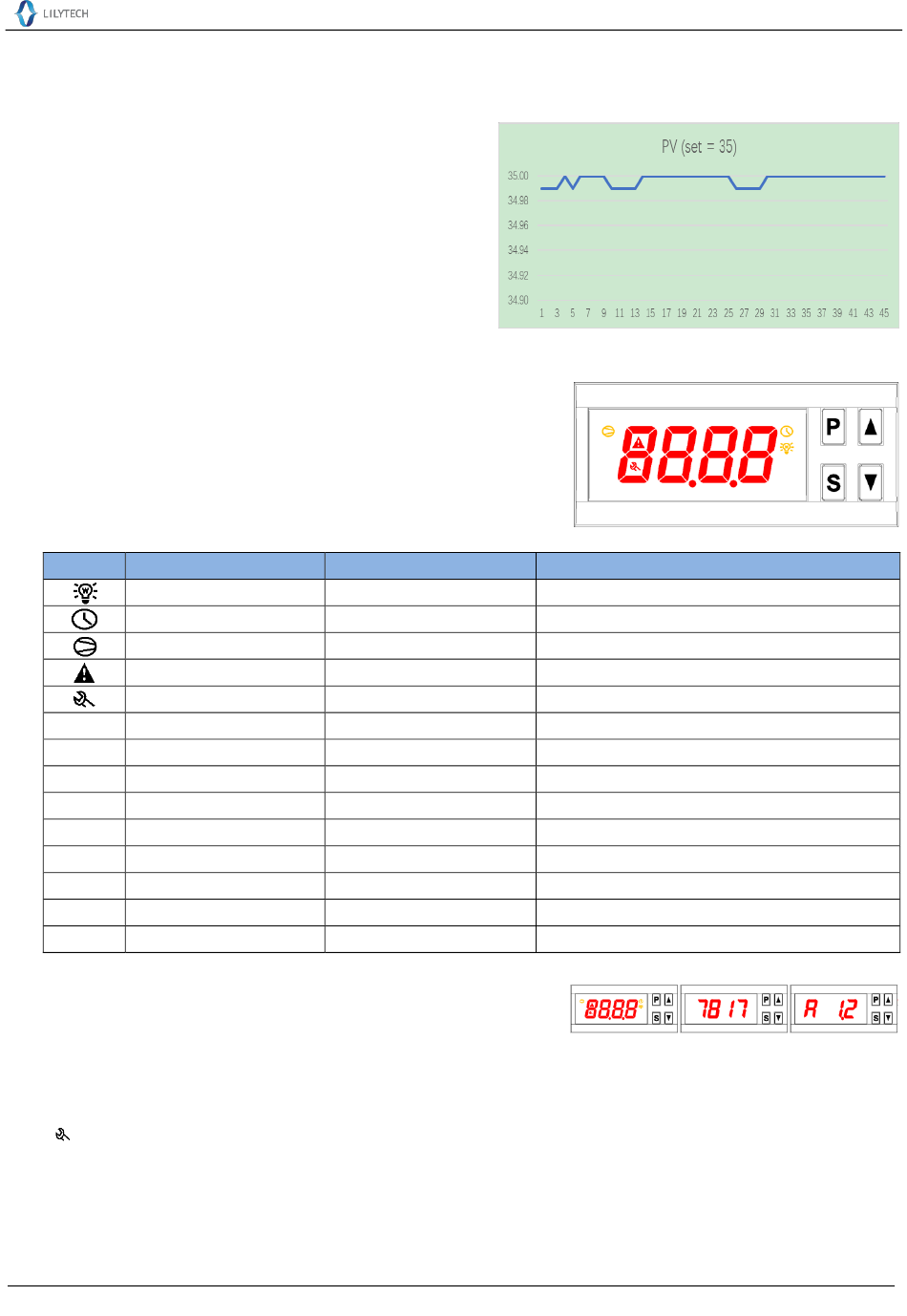

Lilytech ZL-7817A Instruction Manual

Introduction
This new version provides optional PID and on/off control.
Internal control resolution now is 0.01C degree to reach better control
result.
Integrated SSR output with 5A rate power driving ability.
An auxiliary output: timer on/off, and/or high temperature protection
Specification
Sensor: NTC, R = 10K, B
25 ℃
Setting range: -40.0 ~ 130.0℃
Power supply: 100 ~ 240Vac, 50/60Hz
Output R1: 5A, 250Vac (rated current)
Output R2: 7A, 250Vac (resistive)
Working: -10 ~ 45℃, 5 ~ 85%RH without dew
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Dimension: W78 x H34.5 x D71 (mm)
Display
Display
Display
Heater status
Timer output status
PID auto tune status
Failure
Set status
Failure
E1
Failure
Hi
Failure
Lo
Failure
iA
Restore to factory settings
UnL
Auto tuning fails
At1
Auto tuning fails
At2
Auto tuning fails
At3
Auto tuning finished
SUc
Model, version display
After reset, the model (ZL-7817 A) and version (version 1.0) will display
consecutively:
Operation
Set set-point (SP). Factory default set is 35.0℃
Keep〖S〗depressed for 3 seconds to enter into temperature setting status:
blinks, the SP value displays.
Press〖▲〗or〖▼〗to set the value.
Press〖S〗to save and exit the status.
The status will exit, and the value will be saved, when there is no key operation for 30 seconds.
ZL-7817A Temperature Controller
Instruction Manual
= 3470K
25/50 ℃
Function
Heater output R1 is energized
Timer output R2 is energized
Will restore to factory settings
V1.2b
Installation drilling: W71 x H29 (mm)
On
Page 1, Total 4 Pages
Suzhou Lily Tech. Co., Ltd.
Blinking
PID auto tuning
Warning
Setting
Sensor failure
High temperature warning
Low temperature warning
External warning input effective
Temperature not stable during Auto tuning
Temperature vibration level not satisfied
Temperature vibration period not satisfied
Auto tuning finished successfully
