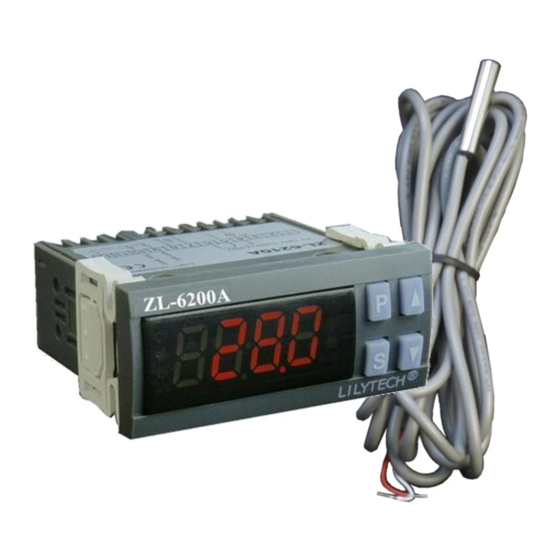

Lilytech ZL-6200A Instruction Manual

Introduction

ZL-6200A is for cooling, heating or warning control. Front panel water proof level IP65, control resolution 0.1℃, keypad password
protection. It is suitable to control or audit cold storage, aquarium, water heater, and so on.

Main Function

Cooling, heating or auditing
Over temperature warning
Sensor failure warning

Specification

Power supply: 185 ~ 245Vac, 50/60Hz
Sensor: NTC, 1.5 meters long
Display range: -50 ~ 120℃
Setting range: -50 ~ 120℃
Warning: Buzzing
(When in warning mode, temp. output as warning output)
Working: -10 ~ 45℃, 5 ~ 90%RH without dew
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)

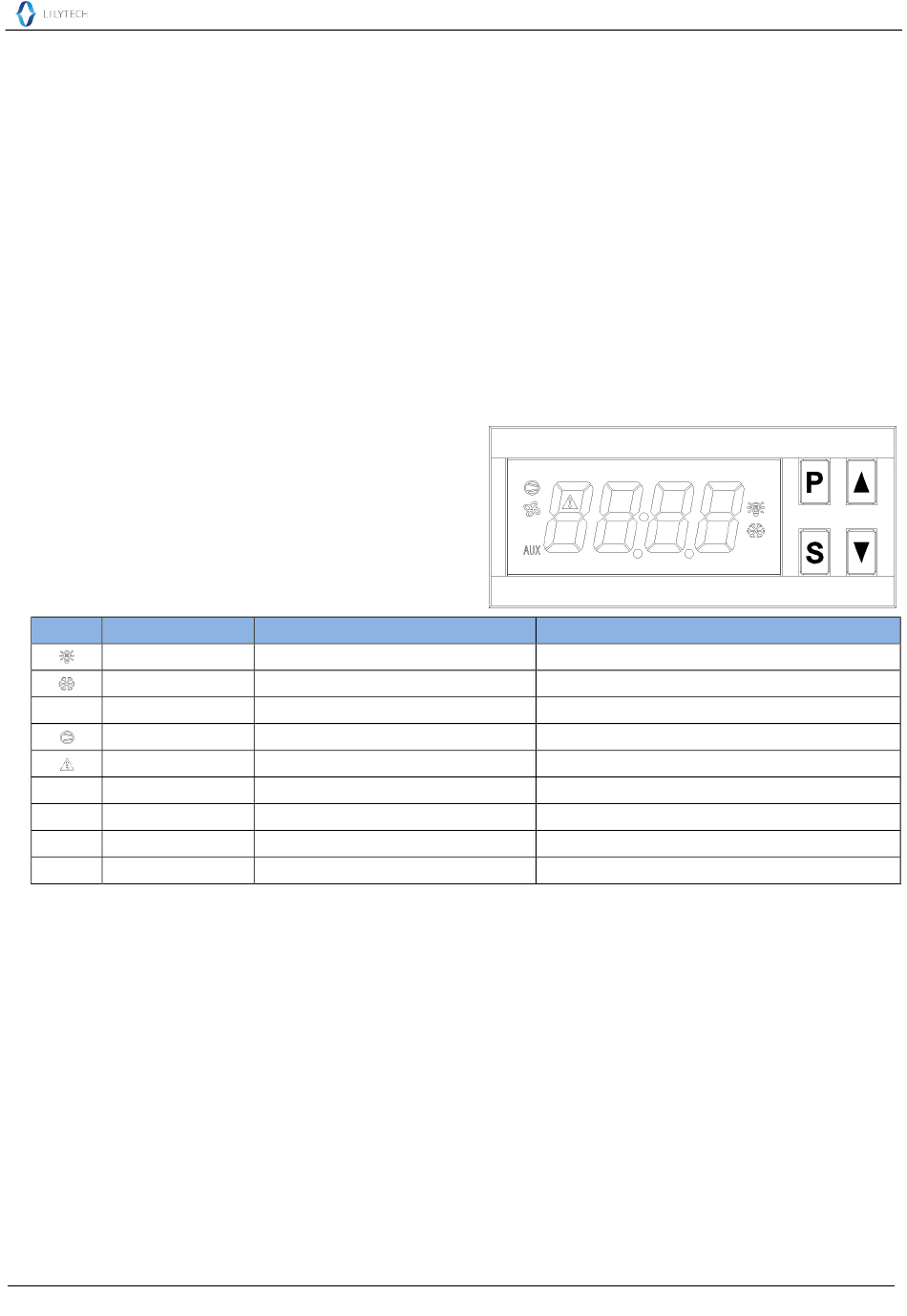

Keypad and Display

Display Function
Heating mode
Cooling mode
AUX Warning mode
Temp. output, R1
Warning
E1 Warning
E2 Warning
HH Warning
LL Warning

Operation

On/off: Keep〖S〗depressed for 3 seconds to switch on/off.
Check settings: Press〖▲〗 to check the set-point; Press〖▼〗 to check the hysteresis.

Set Set-Point

Keep〖S〗depressed for 3 seconds to enter into the set status. The current set-point value displays.
Press〖▲〗or〖▼〗 to set the value (keeping depressed can fast set).
Keep〖S〗depressed for 3 seconds to exit, and save the settings.
The status will exit, and the setting will be saved, if no key operation within 30 seconds.

Set System Parameters

Keep〖P〗depressed for 3 seconds: If the password is not "0000", digits show "---0", else enter into parameter setting status.
Press〖▼〗to select the digit of the password, press〖▲〗to set the value of the digit.
Press〖S〗 to confirm:
If the password is correct, enter into the parameter setting status, else exit.
Set in parameter setting status:
Press〖▲〗or〖▼〗to select the parameter code (see parameter code table below).
Press〖S〗 to display the value of the code.
www.suzhoulily.com.cn/en
ZL-6200A Temperature Controller
Instruction Manual A1.0
On
Heating mode
Cooling mode
Warning mode
R1 energized
----
----
----
----
----
Temperature control
Temp. output energized/de-energized periodically when
sensor fails
Resolution: 0.1℃
Absolute accuracy: 1% at 25℃
Accuracy after calibration: 0.1℃
Temp. output, R1: 7A, 250Vac (pure resistance load)
Setting set-point
Setting set-point
Setting set-point
Delay protecting
Warning
Sensor open
Sensor short
Over high temperature limit
Bellow low temperature limit
Suzhou Lily Tech. Co., Ltd.
Blinking
Page 1, Total 2 Pages
