Leviton Acenti ACP0R-CB Installation Instructions

DI-000-ACP0R-00A
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformer
operated appliance.
• Acenti™ sensors are not compatible with standard 3-way or 4-way switches. They must be used with compatible Acenti™ remotes for multi-location operation.

Tools needed to install your Remote:

Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler

INSTALLING YOUR REMOTE

√
NOTE: Use check boxes when Steps are completed.
WARNING:
TO AvOID FIRE, SHOCk, OR DEATH;
Step 1
TURN OFF POWER at circuit breaker or fuse and test
that power is off before wiring!
Identifying your wiring application (most
Step 2
common):
NOTE: If the wiring in the wall box does not resemble
any of these configurations, consult a qualified electrician.
1 2
3
1
2
3
4
4
5
5
6
3-Way 4-Way
1. Line or Load (See important 1. First Traveler – note color
instruction below) 2. Second Traveler – tagged
2. Neutral 3. Neutral
3. Ground 4. Ground
4. First Traveler – note color 5. Third Traveler – note color
5. Second Traveler – note color 6. Fourth Traveler – tagged
NOTE: For matching remote NOTE: For matching remote
w/LEDs installation, the First w/LEDs installation, the First
Traveler becomes Line Hot. Traveler becomes Line Hot.
IMPORTANT:
For 3-Way applications, note that one of the screw terminals from
the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as
the common (Line or Load) in both the sensor wall box and remote
wall box.
For 4-Way applications, note that the old switch being removed will
have 4 screws plus a ground screw. Tag the two same color insulated
wires with electrical tape.

Preparing and connecting wires:

Step 3
This remote can be wired using side wire terminal screws
or through backwire openings. Choose appropriate wire
stripping specifications accordingly.
Cut
(if necessary)
Step 3 cont'd
Strip Gage (measure
bare wire here or use
gage on back of the
5/8"
sensor)
(1.6 cm)
Side Wire Connection
Side wire terminals accept
#14 AWG solid copper wire only.
Strip Gage (measure
bare wire here or use
gage on back of the
5/8"
sensor)
(1.6 cm)
Back Wire (either hole may
be used)
Back wire openings use #14-12
AWG solid copper wire only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
Installing your Alignment Plate:
Step 4
Important Notice for Installer
To achieve proper aesthetic installation of the Acenti products,
the wall surface surrounding the wall box opening must be
fairly flat and free of irregularities. The wall box must be
level and recessed or flush to the wall surface. The Acenti
installation system allows for adjustments that will correct
minor flaws that may be present in the installation area.
This device must be installed with the Acenti™ Alignment
Plate. The Alignment Plate is packaged with the Acenti™
Wallplate, which is sold separately from this device.
The Alignment Plate will function properly only if it is mounted
to a flat wall surface as described above.
• Leviton recommends to temporarily position the Alignment Plate
prior to wiring the device. If the wall box wires extend at least
6 inches out of the wall box, it is also possible to install the
Alignment Plate after the device has been wired (refer to Wallplate
instruction sheet).
• The Alignment Plate must be installed with the tab towards the
bottom.
• Leviton recommends the following 3 methods to temporarily hold
the Alignment Plate – use of device mounting screw, use of wall box
wires, or use of electrical tape (refer to the following figures):
Alignment Plate Held Alignment Plate Alignment Plate
Held By Wires Held By Tape
By Mounting Screw
Electrical
Tape
Mounting
Screw
Alignment
Plate
3-Way or More Applications (Multi-location)
Manual-ON Occupancy Sensor Remote
Cat. No. ACPØR-CB
120VAC, 60Hz
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from sensor to all installed remotes cannot exceed 300 ft.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
3-Way Wiring with ACPØR Remote
Step 5a
Application:
T ermina l
ACP0R Remote Sensor
Scr e w marke d
White (WH)
A d ditiona l
Neutral W ir e
4
2
T ermina l 2
1
Scr e w marke d
Bla c k (Bk )
4
3
3
T ermina l
1
Scr e w marke d
5
5 Y ell o w/Re d
(YL/RD)
T ermina l
Scr e w marke d
Red (RD)
ACP0R/AC0SR-1L Remote Sensor
Hot (Bla c k )
WH WH
BK BK
Bla c k
Green Green
Ground Ground
YL/RD RD YL/RD
Line
Load
120 V A C , 60H z
White
Neutral (White)
NOTE: The sensor must be installed in a wall box that has a Load
connection. The remote must be installed in a wall box with a Line
Hot connection and a Neutral connection. A neutral wire to the remote
needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from sensor to all installed remotes
cannot exceed 300 ft.
WIRING ACPØR REMOTE (wall box with Line Hot
connection):

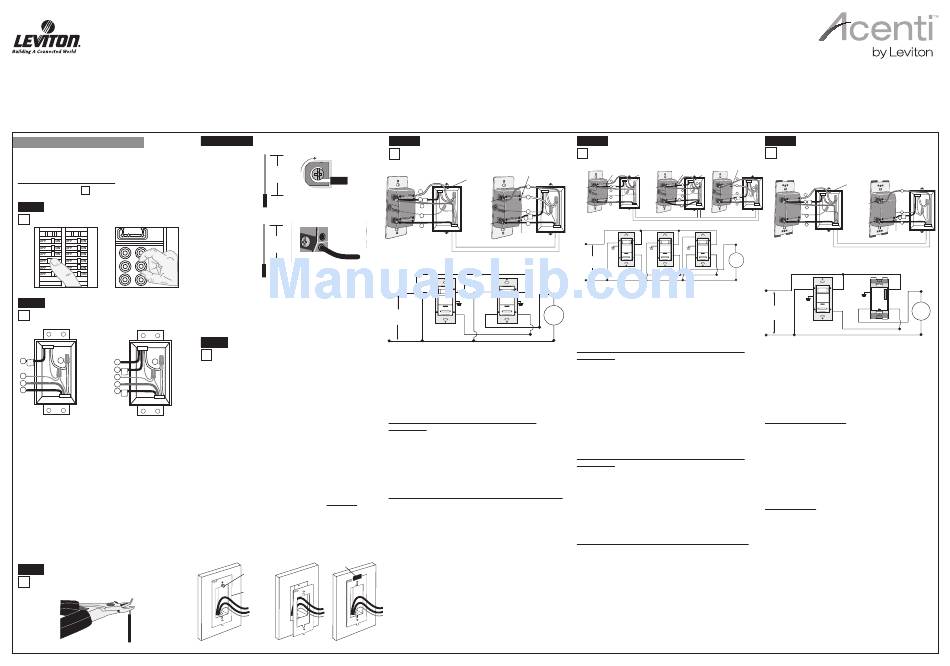

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch and First Traveler to sensor terminal screw marked "BK".
• Second Traveler wall box wire from ACP15 sensor to remote
terminal screw marked "YL/RD" (note wire color). This traveler
must go to the terminal screw on the sensor marked "YL/RD".
• Line Neutral wall box to remote terminal screw marked "WH".

WIRING ACP15 SENSOR (wall box with Load connection):

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw or
Green sensor lead.
• Load wall box wire identified (tagged) when removing old switch to
sensor terminal screw marked "RD" or the Red sensor lead.
• First Traveler Line Hot to sensor terminal screw marked "BK".
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire (note color as above) to sensor
terminal screw marked "YL/RD". This traveler from the sensor must
go to the terminal screw on the remote marked "YL/RD".
• Line Neutral wall box to sensor terminal screw marked "WH".
• Proceed to Step 6.
4-Way Wiring with ACPØR Remote
Step 5b
Application:
Sensor
ACPØR Remote ACPØR Remote
(3-Way Wall box from Step 2)
(3-Way Wall box from Step 2) (4-Way Wall box from Step 2)
Terminal Terminal
Terminal Screw marked
Screw marked Additional Screw marked Additional
White (WH) Neutral Wire White (WH) Neutral Wire White (WH)
4
2
Terminal
Terminal
3
Screw 1
Screw 2
marked 1
marked
Black (Bk)
4 Black (Bk) 5
3
4
Terminal 3 Terminal
1
Screw Screw 2
marked
marked
5 5
Yellow/Red Yellow/Red
6
(YL/RD) (YL/RD)
Sensor
ACPØR Remote ACPØR Remote
WH
Hot (Black) WH WH
Green
Ground
Bk Bk Bk
Black
Green Green
YL/RD RD YL/RD
Ground Ground
YL/
Line
Load
RD
120vAC, 60Hz
White
Neutral (White)
NOTE: The sensor must be installed in a wall box that has a Load
connection. The remote must be installed in a wall box with a Line
Hot connection and a Neutral connection. A neutral wire to the remote
needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from sensor to all installed remotes
cannot exceed 300 ft.
WIRING ACPØR REMOTE (4-Way wall box with Line Hot
connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• First Traveler and Third Traveler wall box wire from sensor in the
3-way box to remote terminal screw marked "BK" in the 4-way box,
and to the terminal screw marked "BK" of the remaining remote in
the 3-way box.
• Second Traveler (tagged) and Fourth Traveler (tagged) wall box
wire from sensor in the 3-way box to remote terminal screw marked
"YL/RD" in the 4-way box, and to the terminal screw marked "YL/RD"
of the remaining remote in the 3-way box (note wire colors).
This traveler from the remotes must go to the terminal screw on the
sensor marked "YL/RD" or the Yellow/Red sensor lead.
• Line Neutral wall box wire to remote terminal screw marked "WH".
WIRING ACPØR REMOTE (3-Way wall box with Line Hot
connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch and First Traveler to sensor terminal screw marked "BK"
or the Black sensor lead.
• Second Traveler wall box wire from sensor to remote terminal screw
marked "YL/RD" (note wire color as above). This traveler from
the remote must go to the terminal screw on the sensor marked
"YL/RD" or the Yellow/Red sensor lead.
• Line Neutral wall box wire to remote terminal screw marked "WH".

WIRING SENSOR (3-Way wall box with Load connection):

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw or
Green sensor lead.
• Load wall box wire identified (tagged) when removing old switch to
sensor terminal screw marked "RD" or the Red sensor lead.
• First Traveler Line Hot to sensor terminal screw marked "BK" or the
Black sensor lead.
• Remove Red insulating label from terminal screw marked "YL/RD"
or the Yellow/Red sensor lead.
• Second Traveler wall box wire (note color as above) to sensor
terminal screw marked "YL/RD" or the Yellow/Red sensor lead.
This traveler from the sensor must go to the terminal screw on the
remote marked "YL/RD".
• Line Neutral wall box to sensor terminal screw marked "WH".
• Proceed to Step 6.
3-Way Wiring with Acenti Dimmer without
Step 5c
Neutral Connection:
Sensor Remote Dimmer
Additional
Neutral Wire
2
4
2
Terminal
1
Screw marked
Black (BK)
4
3
3
Terminal
1
Screw marked
5
5 Yellow/Red
(YL/RD)
Terminal
Screw marked
Red (RD)
Sensor Remote (with LEDs) Dimmer
Hot (Black)
WH BK Green BK
Ground
Green Black
Groun d
RD YL/RD
Line YL/RD
Load
120VAC, 60Hz
White
Neutral (White)
NOTE: The dimmer must be installed in a wall box that has a Load
connection. The sensor remote must be installed in a wall box with
a Line Hot connection and a Neutral connection. A Neutral wire to
the matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from sensor to all installed remotes
cannot exceed 300 ft (90 m).
WIRING SENSOR REMOTE (wall box with Line Hot
connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when
removing old switch and First Traveler to dimmer terminal screw
marked "BK".
• Second Traveler wall box wire from sensor to remote terminal
screw marked "YL/RD" (note wire color). This traveler from
the remote must go to the terminal screw on the sensor marked
"YL/RD".
• Line Neutral wall box wire to remote terminal screw marked
"WH".

WIRING DIMMER (wall box with Load connection):

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch
to terminal screw marked "RD".
• First Traveler Line Hot to terminal screw marked "BK".
• Remove Red insulating label from terminal screw marked
"YL/RD".
• Second Traveler wall box wire (note color as above) to terminal
screw marked "YL/RD". This traveler from the dimmer must go
to the terminal screw on the remote marked "YL/RD".
• Proceed to Step 6.
