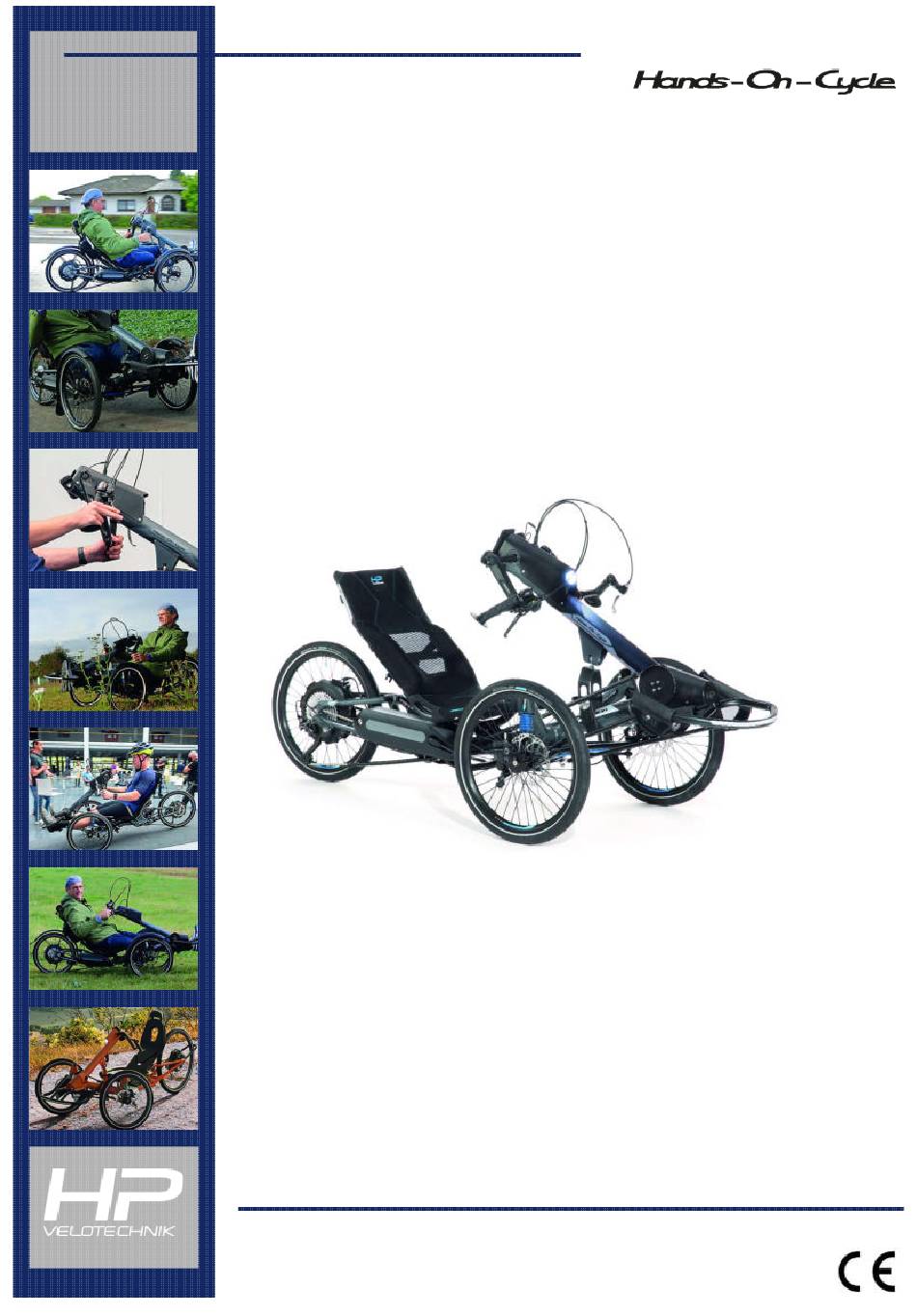

- Page 1 INFO recumbent- . . .recline in style! technology Operating Manual for Hands-On-Cycle hand drive version September 2022...
- Page 2 In this manual you will find information on the individual adjustment and handling of your recumbent with the Hands-On-Cycle manual drive. The instructions are in addition to the original operating manual that you also received with your recumbent. Please take your time to familiarize yourself with your new bike, read and observe all associated instructions.
-
Page 3: Table Of Contents
Table of contents Part designation General safety instructions Models with Hands-On-Cycle Description Intended use Indications Contraindications 3 Individualisation Reuse Regulation of the European Union The first ride All rides Getting in and out Individual Adjustment Seat adjustment For specialized dealer only: Adjustment... -
Page 4: Part Designation
6 - hand pedal 7 - mast 8 - cover for output box 9 - chainring with chainring adapter 10 - leg rest 11 - front boom 12 - leg rest mesh 13 - chain with chain protection tube Hands-On-Cycle 9/2022... -
Page 5: General Safety Instructions
These instructions explain the operation and maintenance of the components in detail. Attention! Before riding your Hands-On-Cycle , read this manual, the original operating instruc- Notes with the signal word " Attention" tions for your trike, and the component indicate dangerous situations which manufacturer's instructions. -
Page 6: Intended Use
ELOTECHNIK its intended purpose: Your recumbent dystrophy paralysis e.g. stroke with partial trike with Hands-On-Cycle is a trike for paralysis of one or both legs, amputations, use on roads and paved paths. It is not de- muscle development, back pain. -
Page 7: Regulation Of The European Union
Your legs must rest se- Familiarize yourself with the following fea- curely on the leg rest and be secured ture of the Hands-On-Cycle: steering re- against falling off. Check whether you quires less force when the cranks are up,... -
Page 8: All Rides
HP V recommends always ELOTECHNIK The trike is equipped with moving parts riding with your lights on. and adjustments. There is a risk of squeez- Always be ready to brake. ing your fingers or other parts of your Hands-On-Cycle 9/2022... - Page 9 Lighting system and turn signal If equipped with an electric drive system, the lighting system and the optional turn signal only function when the drive system is switched on. Hands-On-Cycle 9/2022...
-
Page 10: Getting In And Out
To do this, release the quick-release lever of the support (see page 9, fig. 1), prop up the mast with one hand and push the mast upwards, close the quick-release lever again. Hands-On-Cycle 9/2022... -
Page 11: Individual Adjustment
Cycle hand drive. Loose screws can cause attachment parts to twist or come loose. This can In the order list for Hands-On-Cycle lead to accidents. Tighten all screws to some add-on parts are listed. From the the specified torque. Use a torque... -
Page 12: For Specialized Dealer Only: Adjustment Of The Front Boom
With 2 screws they are connected and clamped on the 2 - quick-release lever frame. When tightening, first the upper and then the 3 - support clamp lower screw must be tightened (7–9 Nm). Also in the picture: quick release mount (left) and quick release nut (right). Hands-On-Cycle 9/2022... -
Page 13: Positioning Of Legs And Feet
3a. To move the support clamp, remove the quick-release clamp, quick- release nut and quick-release mount. Then loosen the 2 fastening screws of the support clamp. 3b. Move the support clamp to the appropriate position. The support plate must fit over the support clamp. Hands-On-Cycle 9/2022... - Page 14 To do this, loos- this purpose (lower leg fixation, foot en the fastening screws and tighten them plate). again after the adjustment (6 Nm). The leg rest mesh can be attached in 2 po- siti- Hands-On-Cycle 9/2022...
-
Page 15: Adjustment Of The Hand Cranks
The input shaft threaded bolt into the hole until it is se- can also be shortened. cured against turning. The hand pedal tube can be shortend if necessary, but only on the open end side. Hands-On-Cycle 9/2022... -
Page 16: Adjustment Of The Steering
The full steering angle can be used. This means that somewhat tighter turns can be made than when using the in- ner thread. The adjustment must be carried out by a qualified person. Tightening torque: 9–10 Nm. Hands-On-Cycle 9/2022... -
Page 17: Folding
Gekko fx 26 Detailed folding instructions can be found in the original manual of the trike. Fig. 2: Folded Scorpion fs 20 with Hands-On-Cycle hand drive. The seat was taken off. Attention! If the restricted folded Scorpion fs 20 is tilted onto the rear wheel and folding joint, the folding joint may be damaged. -
Page 18: Labeling
• shows the serial number • indique le numéro de série • zeigt die Artikelnummer an • shows the item number • indique la référence de l’article • Gebrauchsanweisung beachten • observe operating instructions • se conformer au mode d'emploi Hands-On-Cycle 9/2022... -
Page 19: Tightening Torques
M6 size 5 9–10 Nm steering rod steering rod/stem adapter M8 size 5/13 13–15 Nm lower leg fixation lower leg fixation/leg rest M6 size 5 7–9 Nm Also observe the torque specifications in the original operating manual of your trike. Hands-On-Cycle 9/2022... -
Page 20: Technical Data
Technical data Technical data Weight of the Hands-On-Cycle hand drive 7,5 kg/ 16,5 lbs Folding dimensions, L x W x H: Note that depending on the attachments, your bike may have restricted folding capa- bilities. Gekko fx 26 Hands-On-Cycle hand drive... - Page 21 INFO recumbent- Liegerad- perspektiven technology HP V GmbH & Co. KG Kapellenstraße 49 65830 Kriftel Germany ELOTECHNIK Phone +49 6192 - 97 99 2 - 0 Fax+49 6192 - 97 99 2- 299 mail@hpvelotechnik.com www.hpvelotechnik.com...
