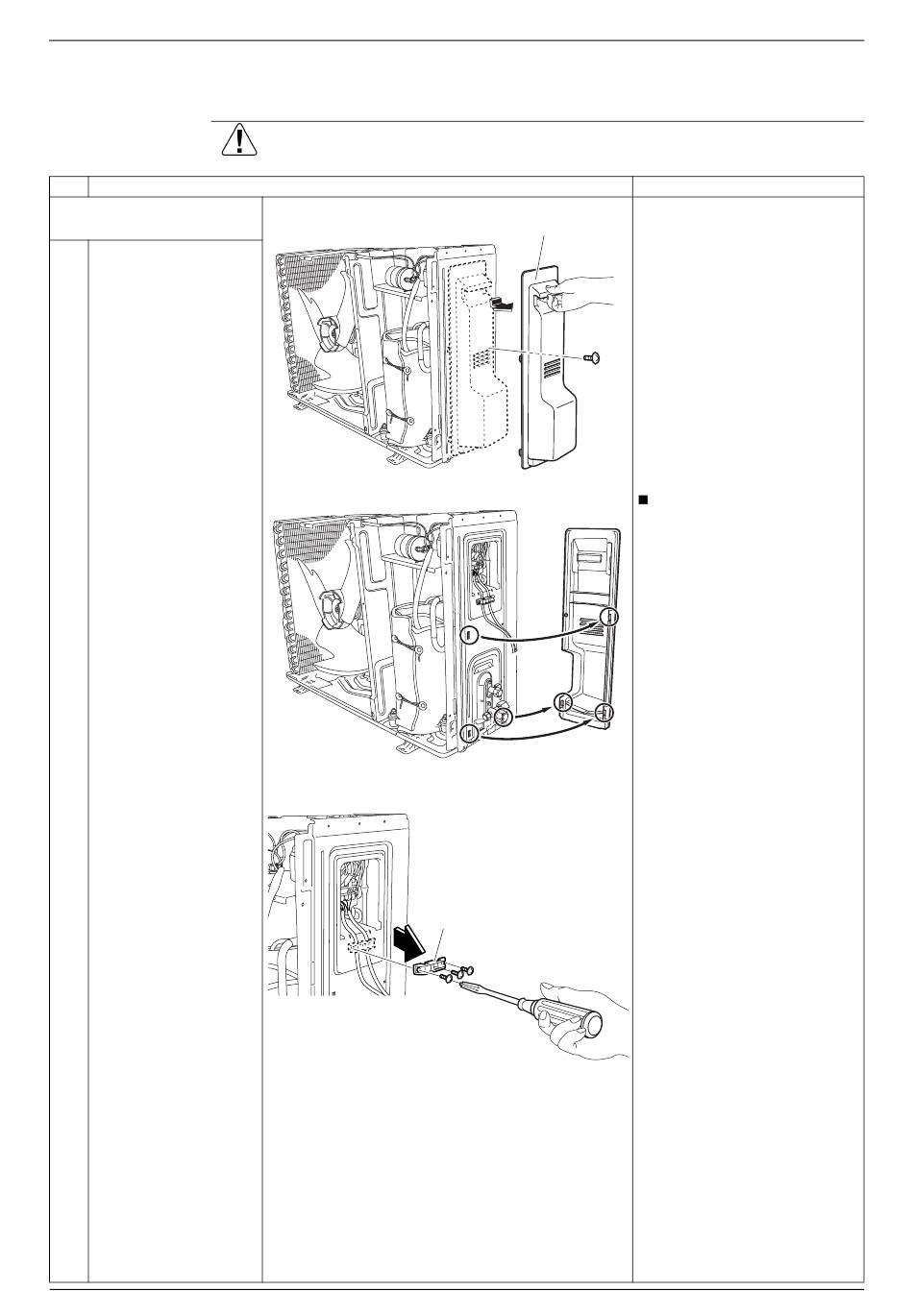

Removal of Electrical Components
3. Removal of Electrical Components
Procedure
Step
1. Remove the right side
panel.
Remove the screw and
1
remove the stop valve
cover.
Remove the 3 screws
2
and remove the wire
clamp.
6
Warning
Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Wire clamp
Stop valve cover
(R15163)
The stop valve cover has 3
hooks.
(R15164)
(R15165)
Si011193
Points
Removal Procedure
