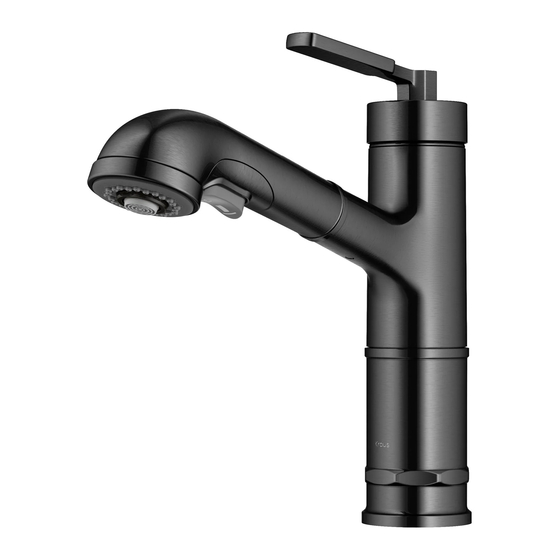

- Page 1 INSTALLATION GUIDE Allyn™ Pull-Out Kitchen Faucet KPF- 4103 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Inc. I REV. June 28, 2022...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn o the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List G. Weight A. Spray Head H. Weight Clip B. Faucet Body I. Quick Connector C. Rubber Washer D. Metal Washer J. Hex Wrench E. Mounting Nut F. Screws...
- Page 5 Faucet Dimension 11" [280.9mm] 9" 2 3/8" [227.6mm] [59.0mm] 10" [255.6mm] 6 1/4" [157.9mm] 2 3/8" 3 1/2" [59.0mm] [87.8mm] 3/8" compression Installer Tip:...
- Page 6 Step 1: Installing the faucet Shut o the water supply. Place faucet (B) through the hole in countertop. Secure the faucet (B) to the countertop using the rubber washer (C), metal washer (D) and mounting nut (E) provided. Hand tighten the nut (E) onto the faucet assembly.
- Page 7 Step 3: Securing the faucet assembly Install the weight clip (H) at the point of the hose marking "weight here". Insert the weight (G) onto the weight clip (H) by sliding it down onto the weight clip (H). Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug.
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Index KP27194 BL, GR* 2. Screw KP27001 CH, MB, SFACB, 3. Handle Assembly KP27377 SFSB, SFS* CH, MB, SFACB, 4. Cap KP27378 SFSB, SFS* 5. Bonnet KP27379 6. Cartridge Stem KP27380 KP27257 7. -
Page 9: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (5) has Remove the cover button (1). - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
