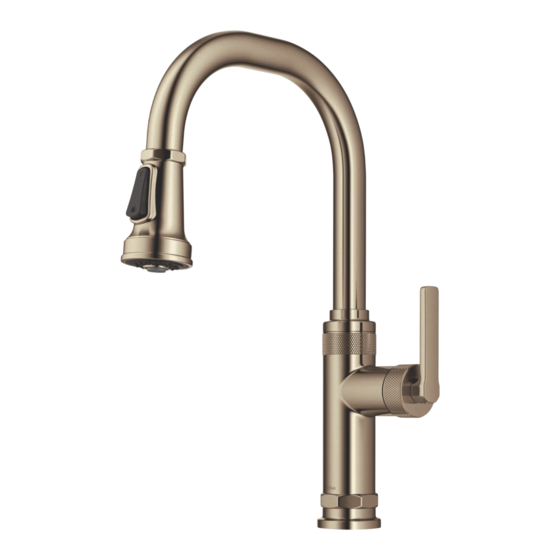

- Page 1 INSTALLATION GUIDE Allyn™ Pull Down Kitchen Faucet KPF- 4102 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. DEC 08, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Diagram and Parts List G. Weight A. Spray Head H. Weight Clip B. Faucet Body I. Quick Connector C. Rubber Washer D. Metal Washer J. Hex Wrench E. Mounting Nut F. Screws...
- Page 5 Faucet Dimension 11 1/4'' [284.3mm] 8 7/8'' [128.5mm] [227.0mm] Ø2 1/4'' [58.0mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1: Installing the faucet Place faucet (B) through the hole in countertop. Secure the faucet (B) to the countertop using the rubber washer (C), metal washer (D) and mounting nut (E) provided. Hand tighten the nut (E) onto the faucet assembly. Lock the nut (E) into position by tightening the screws (F) with a phillips screwdriver.
- Page 7 Step 3: Securing the faucet assembly Install the weight clip (H) at the point of the hose marking "weight here". Insert the weight (G) onto the weight clip (H) by sliding it down onto the weight clip (H). Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug.
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head SFACB, CH, MB KP27298 SFSB, SFS* 2. Sprayer Washer KP27208 3. Sprayer Hose KP27209 GRCH, GRSFS, BLMB, BLSFSB, BLSFACB* 4. Quick connector assembly KP27090 5. O-Ring KP27210 6. -
Page 9: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (9) has Remove the cover button (13). - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
