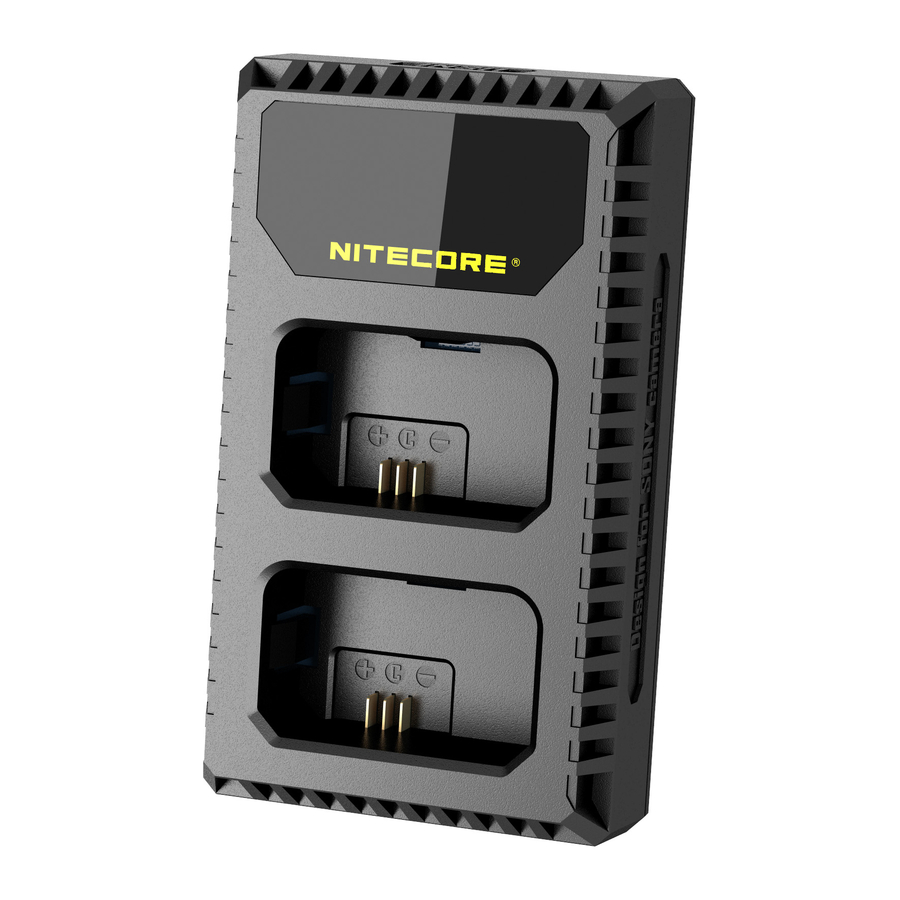

Nitecore USN1 - SONY Battery Charger Manual

Features

• Two bay battery charger
• Compatible with Sony NP-FW50 camera batteries
• USB input
• Real-time information on battery level, battery voltage, charging current, battery temperature, charged volume and battery health
• Monitors battery status and displays battery health
• Reverse polarity protection and anti-short circuit protection
• Automatic adoption for the optimal charging modes between CC and CV
• Automatic termination upon charging completion
• Activates over-discharged batteries with protective circuits
• Compatible with power banks and solar panels
• Made from durable and fire retardant PC and ABS (V0) materials
• Optimal heat dissipation design
• Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.

Specifications

Input: DC 5V 2A
Output voltage: Slot 1 8.4V±1%
Slot 2 8.4V±1%
Output current: 1000mA (MAX)
Interface: Input: USB
Output: Connector
Battery compatibility: Sony camera battery NP-FW50
NP-FW50 compatible models:
Sony α5000, Sony α5100, Sony α6000, Sony α6300, Sony α6500, Sony α7, Sony α7 II, Sony α7R, Sony α7R II, Sony α7S, Sony α7S II, Sony DSC-RX10 III, Sony DSC-RX10, Sony DSC-RX10 II, Sony DSC-RX10 IV, Sony ILCE-QX1,
Sony ILCE-QX1L, Sony α6100, Sony α6400, Sony ZV-E10
Dimensions: 85mm×50mm×26.5mm (3.35"×1.97"×1.04")
Weight: 58.9g (2.08oz)

Operating Instructions

This product is designed specifically for Sony NP-FW50 camera batteries. The USN1 supports charging batteries in both slots simultaneously. The output current is adjusted automatically according to input current to reach the optimal charging setting. This product shall NOT be used with other batteries not specified in this manual.

Automatic Current Adjustment

The USN1's actual output current depends on the maximum power supplied from the USB power source. The output current will be adjusted based on the actual power being input to the device. The USN1 is capable of outputting 1000mA, increasing its efficiency while shortening charging duration.

Battery Health Monitoring

Once the battery is inserted, the USN1 will proceed with an initial low current test charge to diagnose the battery status. After the diagnosis, the battery status will be shown as Good, Normal or Poor.

NOTE:
Re-insert the battery when "Poor" appears on screen to eliminate the possibility of a poor battery contact, replace the battery if "Poor" comes up on screen consistently.

Reverse Polarity and Anti-Short Circuit Protection

The USN1 makes use of the mechanical reverse polarity protection. Inserting incompatible batteries or incorrect battery installation will prevent the initiation of the charging process. The error message "EE EE" will come up on the LCD display when a short circuited battery is installed.

Over Discharged Battery Activation

The USN1 will automatically activate over discharged battery caused by improper storage or misuse. As for the battery can not be activated, it will be considered as damaged and "EE EE" will shown on the screen to notify users. NOTE:
this function only available for batteries with protection board.

Cautions

1. The USN1 is only compatible with Sony NP-FW50 camera batteries. Do NOT attempt to charge other batteries.
2. Moderate heat from this product is to be expected during the charging process. This is normal.
3. Operating temperature: -10°~ 40°C, storage temperature: -20° ~ 60°C.
4. Carefully read all labels on the device to ensure batteries are installed correctly.
5. The charger is designed for adults. Use of the charger by kids under age must be under supervision. Operation, using or cleaning of the charger may NOT be done by kids aged 8 years or younger.
6. DO NOT leave the product unattended while it is connected to a power supply.
   Unplug the product at any sign of malfunction and refer to the user manual.
7. Batteries of short lifespan should be replaced as soon as possible.
8. DO NOT store or use the product in an environment where the temperature is extremely high / low or changes rapidly, or in a confined area with a high temperature.
9. Store the device in ventilated areas. DO NOT uses the device in moist environment and keep away from any combustible materials.
10. Avoid any shock or impact to the device.
11. DO NOT place any conductive or metal object in the device to avoid shortcircuiting and explosions.
12. Unplug the device when it is not in use.
13. DO NOT disassemble or modify the device as doing so will render the product warranty invalid. Please refer to the warranty section in the manual for complete warranty information.

Disclaimer

This product is globally insured by Ping An Insurance (Group) Company of China, Ltd. Nitecore shall not be held responsible or liable for any loss, damage or claim of any kind incurred as a result of the failure to obey the instructions provided in this user manual.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service. Should any problem covered under warranty occurs, customers can contact their dealers or distributors in regards to their warranty claims, as long as the product was purchased from an authorized dealer or distributor. NITECORE's Warranty is provided only for products purchased from an authorized source. This applies to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE^® products can be repaired free of charge for a period of 12 months (1 year) from the date of purchase. Beyond 12 months (1 year), a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts.

The warranty is nullified if the product(s) is/are

1. broken down, reconstructed and/or modified by unauthorized parties
2. damaged from wrong operations (i.e. reverse polarity installation, installation of non-rechargeable batteries, failure to obey the instructions), or
3. damaged by batteries leakage.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com.

※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, the information on our official website shall prevail. SYSMAX Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.

IMPORTANT NOTICE CONCERNING WARRANTY SERVICE

Thank you for purchasing! Before using this charger, please find your verification code on the package box, and go to http://charger.nitecore.com/validation (or scan the QR code beside the verification code to visit on your mobile phone). Type in your verification code and personal information as required, and submit the page. After verification, Nitecore will send you a warranty service email. This email and your registration email address are essential to your possible warranty application. Before you complete the warranty service registration, you cannot enjoy our warranty service for your purchase.
