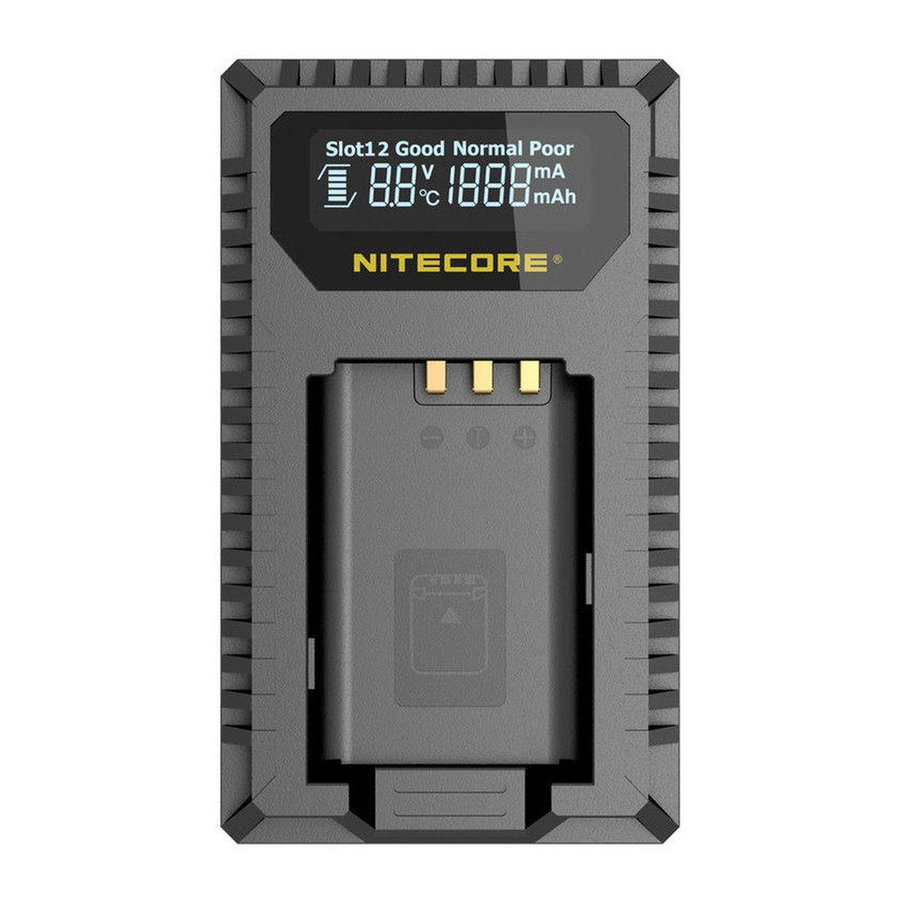

Nitecore USN2 - SONY Battery Charger Manual

Features

• Dual slot battery charger
• Compatible with Sony NP-BX1 camera batteries
• USB input
• Real-time information on battery level, battery voltage, charging current, battery temperature, charged volume and battery health
• Automatically detects battery health
• Reverse polarity protection and anti-short circuit protection
• Automatic adoption for the optimal charging modes between CC and CV
• Automatic selection for charging current
• Automatic termination upon charging completion
• Activates over-discharged batteries with protective circuits
• Compatible with power banks, 5V solar panels and USB adaptor
• Made from durable and fire retardant PC and ABS (V0) materials
• Optimal heat dissipation design
• Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.

Specification

Input: DC 5V 2A

Output voltage: Slot 1 4.2V±1%, Slot 2 4.2V±1%

Output current: 600mA*2 (MAX)

Interface: Input: USB, Output: connector

Battery compatibility: Sony camera battery NP-BX1

NP-BX1 compatible models: DSC-HX350, DSC-H400, DSC-HX400, DSC-RX100M5, DSC-RX1RM2, DSC-RX100M4, DSC-WX500, DSC-HX90, DSC-WX350, DSC-HX60, DSC-RX100, DSC-RX100M2, DSC-RX100M3, DSC-RX1, DSC-RX1R, DSC-HX50, DSC-HX300, HDR-A300R, FDR-X3000, HDR-AS50, HDR-AS200V, FDR-X1000V, HDR-CX405, HDR-PJ410, HDR-MV1, HDR-GWP88E, HDR-CX240E, HDR-PJ240E, ZV-1 (and more compatible models)

Size: 80mm×50mm×25mm (3.15''×1.97'' ×0.98'')

Weight: 54.2g (1.91oz)

Operating Instructions

This product is designed specifically for Sony NP-BX1 camera battery. It supports charging batteries in both slots simultaneously. The output current is adjusted automatically according to input current to reach the optimal charging setting. This product shall NOT be used with other batteries not specified in this manual.

Automatic Current Adjustment

The USN2's actual output current depends on the maximum power supplied from the USB power source. The output current will be adjusted based on the actual power being inputted to the device. The USN2 is capable of outputting 600mA*2,increasing its efficiency while shortening charging duration.

Battery Health Monitoring

Once the battery is inserted, the USN2 will proceed with an initial low current test charge to diagnose the battery status. After the diagnosis, the battery status will be shown as Good, Normal or Poor.

Note: Re-insert the battery when "Poor" appears on screen to eliminate the possibility of a poor battery contact, replace the battery if "Poor" comes up on screen consistently.

Reverse Polarity and Anti-Short Circuit Protection

The USN2 makes use of the mechanical reverse polarity protection. Inserting incompatible batteries or incorrect battery installation will prevent the initiation of the charging process.

Over Discharged Battery Activation

The USN2 will automatically activate over discharged battery caused by improper storage or misuse.

NOTE: this function only available for batteries with protective circuit.

Cautions

1. The USN2 is only compatible with Sony NP-BX1 camera batteries. DO NOT attempt to charge other batteries.
2. Moderate heat from this product is to be expected during the charging process, which is normal.
3. Operating temperature: -10°~ 40°C, storage temperature: -20° ~ 60°C.
4. Carefully read all labels on the device to ensure batteries are installed correctly.
5. DO NOT charge batteries if there is any hint of fault or short circuit.
6. The charger is designed for adults. Use of the charger by kids under age must be under supervision. Operation, using or cleaning of the charger may NOT be done by kids aged 8 years or younger.
7. DO NOT leave the product unattended while it is connected to a power supply. Unplug the product at any sign of malfunction and refer to the user manual.
8. Batteries of short lifespan should be replaced as soon as possible.
9. DO NOT expose the device to high temperature or incinerate, avoid using the device in environments where drastic changes in temperature are possible.
10. Store the device in ventilated areas. DO NOT uses the device in moist environment and keep away from any combustible materials.
11. Avoid any shock or impact to the device.
12. DO NOT place any conductive or metal object in the device to avoid short circuiting and explosions.
13. Unplug the device and remove batteries when it is not in use.
14. DO NOT disassemble or modify the device as doing so will render the product warranty invalid. Please refer to the warranty section in the manual for complete warranty information.
15. DO NOT misuse in any way! Use for intended purpose and function only.

Disclaimer

This product is globally insured by Ping An Insurance (Group) Company of China, Ltd. NITECORE shall not be held responsible or liable for any loss, damage or claim of any kind incurred as a result of the failure to obey the instructions provided in this user manual.

Warranty Details

IMPORTANT NOTICE CONCERNING WARRANTY SERVICE
Before using this charger, please find your verification code on the package box, and go to http://charger.nitecore.com/validation (or scan the QR code beside the verification code to visit on your mobile phone). Type in your verification code and personal information as required, and submit the page. After verification, Nitecore will send you a warranty service email. This email and your registration email address are essential to your possible warranty application. Before you complete the warranty service registration, you cannot enjoy our warranty service for your purchase.

Our authorized dealers and distributors are responsible for warranty service. Should any problem covered under warranty occurs, customers can contact their dealers or distributors in regards to their warranty claims, as long as the product was purchased from an authorized dealer or distributor. NITECORE's Warranty is provided only for products purchased from an authorized source. This applies to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local distribute or dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE^® products can be repaired free of charge for a period of 12 months (1 year) from the date of purchase. Beyond 12 months (1 year), a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts.

The warranty is nullified if the product(s) is/are

1. broken down, reconstructed and/or modified by unauthorized parties
2. damaged from wrong operations (i.e. reverse polarity installation, installation of non-rechargeable batteries, failure to obey the instructions), or
3. damaged by batteries leakage.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com.

※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, the information on our official website shall prevail. SYSMAX Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.
