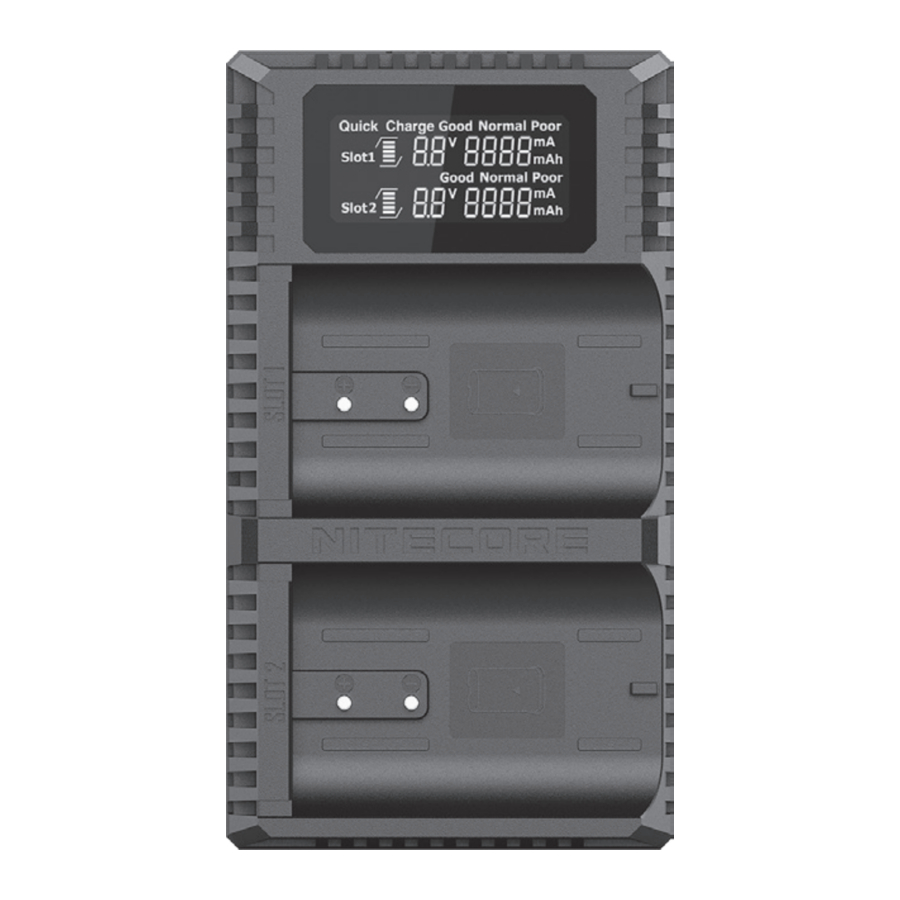

Nitecore UHC1 Pro - USB Travel Charger Manual

Features

• Dual slot battery charger
• Compatible with Hasselblad X System batteries
• QC 2.0 Available
• USB input
• Real-time information on battery voltage, charging current, charged volume and battery health
• Automatically detects battery health
• Reverse polarity protection and anti-short circuit protection
• Automatic adoption for the optimal charging modes between CC and CV
• Automatic selection for charging current
• Automatic termination upon charging completion
• Activates over-discharged batteries with protective circuits
• Compatible with power banks, 5V solar panels and USB adaptor
• Made from durable and fire retardant PC (V0) materials
• Optimal heat dissipation design
• Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.

Accessories

USB Charging Cable

Specifications

Input: DC 5V/2A or 9V/2A

Output Voltage: Slot 1 8.4V±1%
Slot 2 8.4V±1%

Output Current: QC Mode: 1200mA*1 (MAX), 800mA*2 (MAX)
Standard Mode: 800mA*1 (MAX)

Interface: Input: USB
Output: connector

Battery compatibility: Hasselblad X System batteries

Compatible models: X1D 50C, X1D II 50C

Dimensions: 125mm×70mm×29mm (4.92" ×2.76" ×1.14")

Weight: 116g (4.09oz)

Operating Instructions

This product is designed specifically for Hasselblad X System batteries. It supports charging batteries in both slots simultaneously. The output current is adjusted automatically according to input current to reach the optimal charging setting. This product shall NOT be used with other batteries not specified in this manual.

Charging Modes

The UHX1 Pro has 2 charging modes (QC Mode and Standard Mode).
QC Mode: The UHX1 Pro is QC 2.0 available. When connecting to a QC supported device (or adaptor), the display will show "Quick Charge" on the upper left corner. In this status (Input Voltage: 9V), it can charge 2 batteries simultaneously with a max output current of 800mA in either slot, or 1 battery with a max output current of 1,200mA.
Standard Mode: In this status (Input Voltage: 5V), it will charge the battery which is put in first with a max output current of 800mA, and then charge the other when the first battery is fully charged.

Automatic Current Adjustment

The UHX1 Pro's actual output current depends on the maximum power supplied from the USB power source. The output current will be adjusted based on the actual power being inputted to the device, increasing its efficiency while shortening charging duration.

Battery Health Monitoring

Once the battery is inserted, the UHX1 Pro will proceed with an initial low current test charge to diagnose the battery status. After the diagnosis, the battery status will be shown as Good, Normal or Poor.
NOTE:
Re-insert the battery when "Poor" appears on screen to eliminate the possibility of a poor battery contact, replace the battery if "Poor" comes up on screen consistently.

Reverse Polarity and Anti-Short Circuit Protection

The UHX1 Pro makes use of the mechanical reverse polarity protection. Inserting incompatible batteries or incorrect battery installation will prevent the initiation of the charging process. The error message "EE EE" will come up on the LCD display when a short circuited battery is installed.

Over Discharged Battery Activation

The UHX1 Pro will automatically activate over discharged battery caused by improper storage or misuse.

NOTE:
this function only available for batteries with protective circuit.

Cautions

1. The UHX1 Pro is only compatible with Hasselblad X System batteries. DO NOT attempt to charge other batteries.
2. Moderate heat from this product is to be expected during the charging process, which is normal.
3. Operating temperature: -10~40℃ (14~104℉), storage temperature: -20~60℃ (-4~140℉).
4. Carefully read all labels on the device to ensure batteries are installed correctly.
5. Please connect this charger to power supplies with the input voltage stated in the specifications of the user manual. If the input voltage is too low or too high, it may lead to malfunctions, or even a fire.
6. DO NOT charge batteries if there is any sign of faulty or short circuit.
7. The charger is only to be used by adults above 18 years old. Children under this age must be supervised by an adult when using the charger.
8. DO NOT leave the product unattended while it is connected to a power supply. Unplug the product at any sign of malfunction and refer to the user manual.
9. Batteries of short lifespan should be replaced as soon as possible.
10. DO NOT expose the device to high temperature or incinerate, avoid using the device in environments where drastic changes in temperature are possible.
11. Store the device in ventilated areas. DO NOT uses the device in moist environment and keep away from any combustible materials.
12. Avoid any shock or impact to the device.
13. DO NOT place any conductive or metal object in the device to avoid short circuiting and explosions.
14. Unplug the device and remove batteries when it is not in use.
15. DO NOT disassemble or modify the device as doing so will render the product warranty invalid. Please refer to the warranty section in the manual for complete warranty information.
16. DO NOT misuse in any way! Use for intended purpose and function only.

Disclaimer

This product is globally insured by Ping An Insurance (Group) Company of China, Ltd. NITECORE shall not be held responsible or liable for any loss, damage or claim of any kind incurred as a result of the failure to obey the instructions provided in this user manual.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service. Should any problem covered under warranty occurs, customers can contact their dealers or distributors in regards to their warranty claims, as long as the product was purchased from an authorized dealer or distributor. NITECORE's Warranty is provided only for products purchased from an authorized source. This applies to all NITECORE products. To be qualified for warranty, please refer to the "IMPORTANT WARRANTY NOTICE" section on top to validate your product. Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE^® products can be repaired free of charge for a period of 12 months (1 year) from the date of purchase. Beyond 12 months (1 year), a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts.

The warranty is nullified if the product(s) is/are:

1. broken down, reconstructed and/or modified by unauthorized parties
2. damaged from wrong operations (i.e. reverse polarity installation, installation of non-rechargeable batteries or failure to obey the warnings)
3. damaged by batteries leakage.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com.

※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, information on our official website shall prevail. SYSMAX Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.
