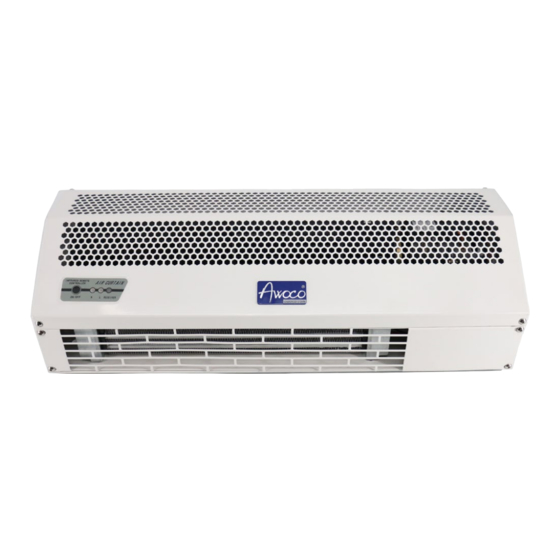

220V Heated Models: RM-1206H, RM-1209H, RM-1210H,
STOP
1. Do NOT plug the power cord (if connected) into power source.
2. Look through the front grille panel, check if the fan wheel bearings are at
proper position at each end of the side panels inside.
3. If the fan wheels don't line up straight, remove the front and side panel's
screws and reseat the fan wheel bearings and align the motor to fix the
issues. Then replace the front and side panels back with tighten the
screws.
4. Connect the power cord (not included) to the air curtain power
connectors. Plug into 220V or 240V AC, 1 Phase, 60Hz power source
(NOT the regular home 110V or 120V, verify the power voltage if not
sure). Press the front power ON/OFF button to turn on. If the air curtain
works normally, refer to section 3 through 7 to install the air curtain.
Refer to section 10 for technical support.
5. If the fan wheel is broken, contact Awoco (refer to section 10) to get the
fan wheel replacement.
6. After installation, if the air curtain doesn't run, first step is to check the
magnetic switch. Refer to section 7 for troubleshooting.
PLEASE READ AND SAVE THESE INSTRUCTIONS.
USER'S GUIDE
Version: RM12H-202110R
AIR CURTAINS
RM-1212H, RM-1215H
! Check & Test before installing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-1206H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Awoco RM-1206H

  • Page 1 3 through 7 to install the air curtain. Refer to section 10 for technical support. 5. If the fan wheel is broken, contact Awoco (refer to section 10) to get the fan wheel replacement. 6. After installation, if the air curtain doesn’t run, first step is to check the magnetic switch.
  • Page 2: Table Of Contents

    Strongly recommend testing the unit before installation for any defective or damage during shipment. WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE FOLLOWING CAREFULLY before attempting to assemble, install, operate, or maintain the product. A.
  • Page 3: Product Introductions

    1. PRODUCT INTRODUCTIONS Air curtains are widely installed at the entrances of supermarket, theater, meeting room, hotel, office room, storage room etc. They can reduce penetration of insects, outside dust, unconditioned air into a conditioned space by forcing an air stream over the entire entrance to create a comfortable environment for you.
  • Page 4: Installation Instructions

    3. INSTALLATION INSTRUCTIONS A. Installing on the concrete wall: 3.1.1 Unscrew the fixing screws to remove 3.1.2 Determine the mounting location with the mounting plate from the back of the main the mounting plate. Drill holes and insert the Zinc-Plated Steel Hex-Nut-Head Sleeve body.
  • Page 5: Technical Parameter

    Max air Ceramic level Model Voltage entry Current (CFM) Power velocity Heater (dB) opening (V~Hz) (FPM) Power (W) (Inch) RM-1206H 3000 14.23 220V - RM-1209H 6000 28.00 240V, 1476 (H), RM-1210H 6000 28.06 60Hz, 1280 (L) RM-1212H 8000 37.27 1 Phase...
  • Page 6: Wiring Diagram

    5. WIRING DIAGRAM Wire size for wiring (example 50 feet copper wire): Power supply Single phase: 220-240V~60Hz Items Main wire conductor: L1, L2 Power of heater (KW) Minimum wire size of main wire conductor (gauge) Minimum wire size of ground wire conductor (gauge) Note: Above are for recommendation reference purpose only.
  • Page 7: Optional Magnetic Switch Installation

    6. OPTIONAL MAGNETIC SWITCH INSTALLATION This air curtain comes with a magnetic door switch, contact seller or Awoco if you are missing a magnetic switch. Connect the magnetic switch 2 wires to the dedicated 2 connectors (SWITCH terminals 1 and 2).
  • Page 8: Troubleshootings

    Open means defective. Feel free to contact Awoco technical support at 1-888-412-3428 if you need help. Awoco has all the parts for 1-year limited warranty for purchasing NEW products at authorized dealers, including fan wheels, magnetic switches, circuit boards, motors, etc.
  • Page 9: Operating Instructions

    8. OPERATING INSTRUCTIONS 8.1 Connect power (220V or 240V AC, 60Hz, 1 Phase) to the unit. 8.2 Either use the ON/OFF button on unit or the remote control to operate the heated air curtain. HEAT COOL ON/OFF Power ON/OFF button 2 GREEN/RED indicator lights Remote control H: High Speed...
  • Page 10: Maintenance And Cleaning

    Contact your local dealer for exchange or repair. Visit www.awoco.com for most updated information. Email to sales@awoco.com or call 1-888-412-3428 for technical support and sales activity. NOTE: Our manufacture warranty is for purchasing NEW products at authorized dealers only. If you bought a refurbished product at a discounted price, please contact the seller...
