Slimline Models:
STOP and Read
1. Do NOT plug in power cord to power source, use a screw driver to rotate
the fan wheels.
2. If the fan doesn't rotate smoothly, pull the side cover off, and pull the
front bars. Remove the side panel screws and the motor's shaft screw to
remove the fan wheel.
3. Reseat the fan wheel bearings and align the motor to fix the issues.
4. Plug in 120V power source (some old air curtains might use 240V, verify
the power voltage if not sure); press the switch to H or L to test it. If the
air curtain works normally, refer to section 3 through 7 to install the air
curtain. Refer to section 10 for technical support.
5. If the fan wheel is broken, contact Awoco (refer to section 10) to get the
fan wheel replacement.
6. After installation, if the air curtain doesn't run, first step is to check the
magnetic switch. Refer to section 7 for troubleshooting.
PLEASE READ AND SAVE THESE INSTRUCTIONS.
Strongly recommend to test the unit before installation for any
defective or damage during shipment.
USER'S GUIDE
Version: FM12-202009RM

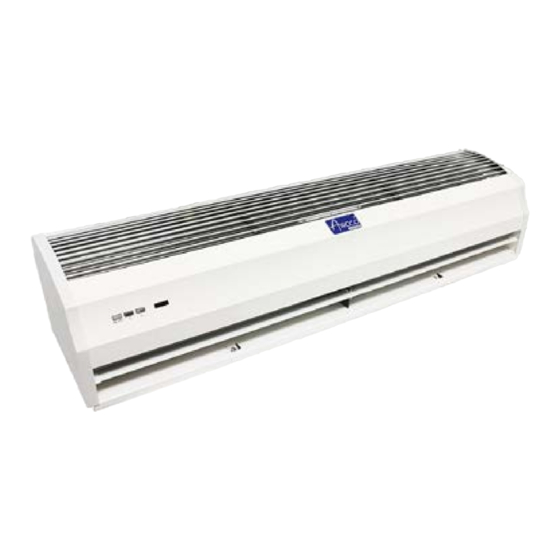

AIR CURTAINS
FM-1209T, FM-1210T, FM-1212T
! Test before installing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-1209T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Awoco FM-1209T

Summary of Contents for Awoco FM-1209T

  • Page 1 3 through 7 to install the air curtain. Refer to section 10 for technical support. 5. If the fan wheel is broken, contact Awoco (refer to section 10) to get the fan wheel replacement.

  • Page 2: Table Of Contents

    WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE FOLLOWING CAREFULLY before attempting to assemble, install, operate or maintain the product. A. Always disconnect, lock and tag power source before installing or servicing product. Failure to disconnect power source can result in fire, shock or serious injury.

  • Page 3: Installation Planning & Cautions

    2. INSTALLATION PLANNING & CAUTIONS Must observe the following when installing air curtains: Strongly recommend to test the unit before installation for any defective or damage during shipment. 2.1 Please install the unit on a sturdy 2.2 Please install the unit inside the room. supporting structure to avoid shaking and ensure its security (because the unit running may cause the wall to become loose or...

  • Page 4: Installation Instructions

    3. INSTALLATION INSTRUCTIONS A. Installing on the concrete wall: 3.1.1 Remove the plastic parts; unscrew the 3.1.2 Determine the mounting location with fixing screws to remove the mounting plate the mounting plate. Drill holes and insert the from the back of the main body. Zinc-Plated Steel Hex-Nut-Head Sleeve Anchor (not included).

  • Page 5: Technical Parameter

    Air volume Noise level Max air Voltage Model entry Power Current (CFM) (dB) velocity weight opening (V~Hz) (FPM) (Lb) (Inch) FM-1209T 1.46 1112 22.0 120V, 2165 (H), FM-1210T 1.98 1271 1033 24.3 60Hz 1772 (L) FM-1212T 2.08 1510 1271 27.6...

  • Page 6: Wiring Diagram

    DOUBLE SPEED INFRARED REMOTE CONTROLLED WIRING DIAGRAM 6. OPTIONAL MAGNETIC SWITCH INSTALLATION This air curtain comes with a magnetic door switch, contact seller or Awoco if you are missing a magnetic switch. The dedicated 2 wires (Yellow) are to connect to the magnetic switch.
  • Page 7 Mount the 2 pieces magnetic switch to the door/window edge and frame; keep them close when the door/window is closed. If needed, apply a metal “Z” bracket to raise the magnet to the same position. Note: Do NOT use big screws!!! Oversized screws will damage the magnetic switch internally. Note: Don’t place the magnetic switch close to existing alarm sensors.

  • Page 8: Troubleshootings

    Open means defective. Feel free to contact Awoco technical support at 1-888-412-3428 if you need help. Awoco has all the parts for 1 year limited warranty, including fan wheels, magnetic switches, remote controls, circuit boards, motors, etc. 8. OPERATING INSTRUCTIONS 8.1 Connect power (120V 60Hz) to the unit.

  • Page 9: Maintenance And Cleaning

    9.6. Dry the case with a soft dry cloth before operating the unit. 10. SUPPORT AND CONTACT Contact your local seller for exchange or repair. Visit www.awoco.com for most updated information. Email to sales@awoco.com or call 1-888-412-3428 for technical support and sales activity.
