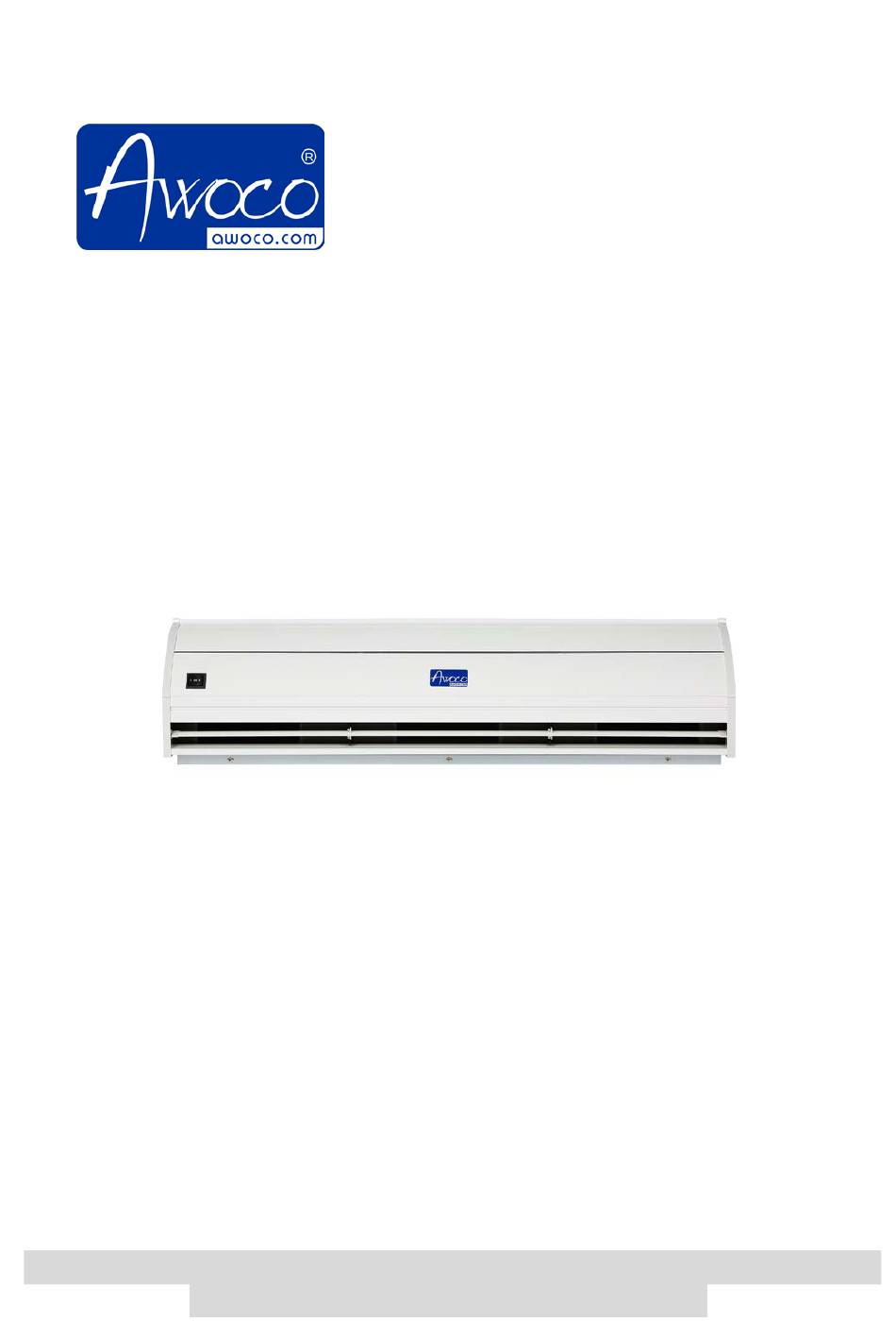

USER'S GUIDE
Version: FM35-201705M

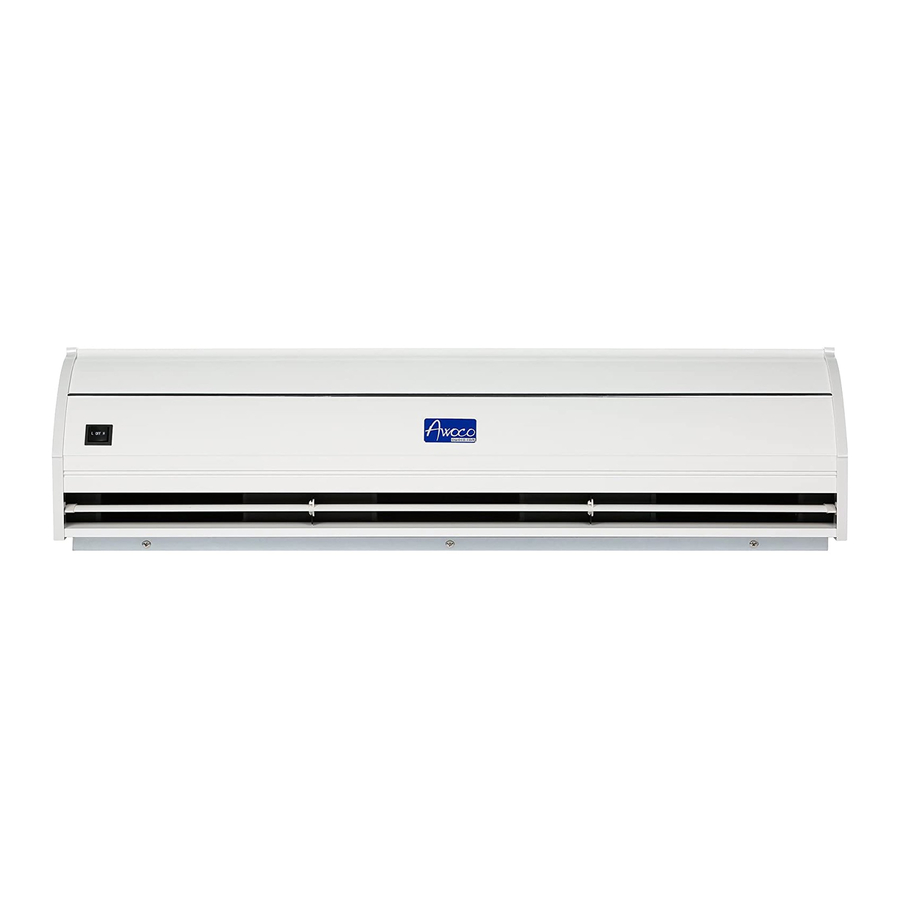

AIR CURTAINS
Models:
FM-3509-L/Y, FM-3510-L/Y,
FM-3512-L/Y, FM-3515-L/Y
(2 Speeds with Magnetic Switch)
Thanks for purchasing this Air Curtain.
PLEASE READ AND SAVE THESE INSTRUCTIONS.
Strongly recommend to test the unit before installation for any
defective or damage during shipment.
Advertisement
Table of Contents
Related Manuals for Awoco FM-3509-L/Y
Summary of Contents for Awoco FM-3509-L/Y
- Page 1 USER’S GUIDE Version: FM35-201705M AIR CURTAINS Models: FM-3509-L/Y, FM-3510-L/Y, FM-3512-L/Y, FM-3515-L/Y (2 Speeds with Magnetic Switch) Thanks for purchasing this Air Curtain. PLEASE READ AND SAVE THESE INSTRUCTIONS. Strongly recommend to test the unit before installation for any defective or damage during shipment.
- Page 2 WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Always disconnect, lock and tag power source before installing or servicing. Failure to disconnect power source can result in fire, shock or serious injury. B.
- Page 3 2. INSTALLATION DIMENSIONS UNIT: inch MODEL Entry Opening FM-3509-L/Y 35.43 27.36 FM-3510-L/Y 42.00 27.36 2.91 3.94 8.46 9.06 4.84 FM-3512-L/Y 47.24 38.98 11.61 FM-3515-L/Y 59.06 50.59 19.84 Note: the data are subjected to change without notice due to product development.
- Page 4 3. INSTALLATION CAUTIONS Must observe the following when installing air curtains: Strongly recommend to test the unit before installation for any defective or damage during shipment. 3.1 Please install the unit on a sturdy 3.2 Please install the unit inside the room. supporting structure to avoid shaking and ensure its security (because the unit running may cause the wall to become loose or...
- Page 5 4. INSTALLATION INSTRUCTIONS A. Installing on the concrete wall: 4.1.1 Unscrew the fixing screws to remove 4.1.2 Determine the mounting location with the mounting plate from the back of the main the mounting plate. Drill holes and insert the body. Zinc-Plated Steel Hex-Nut-Head Sleeve Anchor (not included).
- Page 6 100mm. 5. TECHNICAL PARAMETER Max air Air volume Power Noise level velocity Model Voltage Net weight (dB) (CFM) (FPM) (Lb) (V~Hz) FM-3509-L/Y 28.7 FM-3510-L/Y 120V, 30.9 3150 2559 FM-3512-L/Y 60Hz 1236 34.2 FM-3515-L/Y 1566 1236 44.1...
- Page 7 DOUBLE SPEED SWITCH WIRING DIACRAM 7. OPTIONAL MAGNETIC DOOR MICRO SWITCH INSTALLATION This air curtain comes with a magnetic door switch, contact seller or Awoco if you are missing a magnetic switch. The dedicated 2 wires (Yellow) are to connect to the magnetic switch.
- Page 8 9.6. Dry the case with a soft dry cloth before operating the unit. 10. SUPPORT AND CONTACT Contact your local seller for exchange or repair. Visit www.awoco.com for most updated information. Email to sales@awoco.com for technical support and sales activity.
