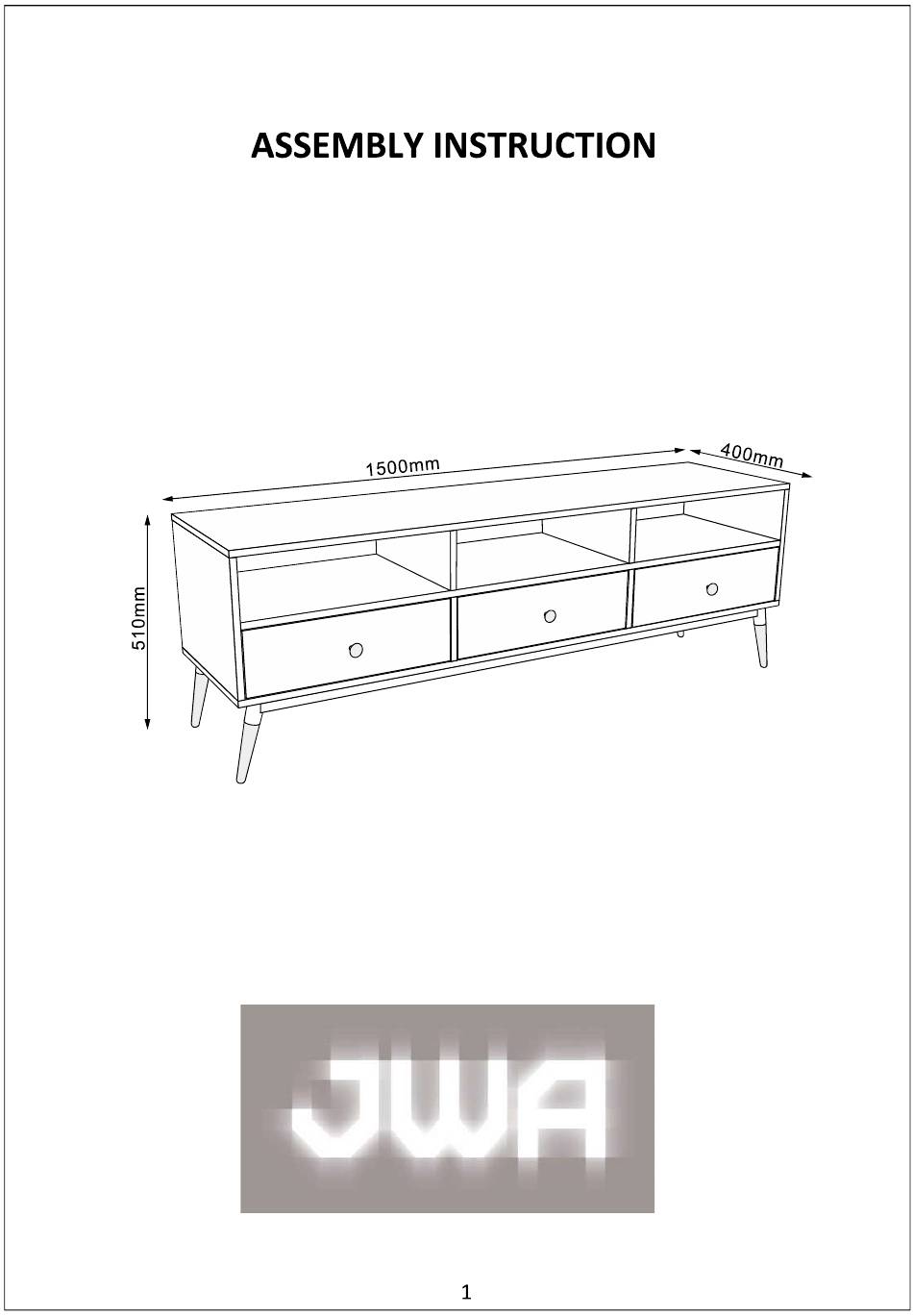

- Page 1 COBB 3 Drawer Entertainment Unit ITEM CODE 75147 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X35mm 8X30mm M6X12mm 52pcs 6pcs 8pcs 8pcs 28pcs ST3.5X14mm ST3.5X18mm M4X18mm 4pcs 26pcs 8pcs 8pcs 3pcs ST4X25mm 3pcs 2pcs 2pcs Top panel Right up middle panel Drawer right panel Layer panel Left down middle panel Drawer back panel Right down middle panel Bottom panel Drawer bottom panel Left panel...
- Page 4 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to both front and back side of panels 8 and 9 with part F. 1. Attach part E1 to panels 4 and 5 with part F. 2.
- Page 5 1. Insert parts A and D to the front and back of panel 2. 1. Attach panels 4 and 5 to panel 2 with parts A and D.
- Page 6 1. Insert parts A and D into panel 3. 2. Attach panels 8 and 9 to panel 3 with parts A and D. 1. Attach panels 2, 4 and 5 to panels 3, 8 and 9 with parts A and D.
- Page 7 STEP 7: 1. Attach panels 6 and 7 to panel 2 with parts A and D. STEP 8: 1. Slide panel 10 along slots of panels 4 and 5.
- Page 8 STEP 9: 1. Insert parts A and D into panel 1. 2. Attach panel 1 to panels 4, 5, 6 and 7 with parts A and D. STEP 10: 1. Insert part I into panel 10. 2. Insert part J into panel 10 with part G.
- Page 9 STEP 11: 1. Attach connection frame P2 to frame P1 with part C. STEP 12: 1. Attach frames P1 and P2 to panel 3 with part B.
- Page 10 STEP 13: 1. Insert part A into panels 12 and 13. 2. Attach panels 12 and 13 to panel 14 with part A. 3. Slide panel 15 along slots of panels 12 and 13. STEP 14: 1. Insert part A into panel 11. 2.
- Page 11 STEP 15: 1. Attach part E2 to panels 12 and13 with part F. STEP 16: 1. Install drawer 11 into the cabinet. Ensure runners are correctly aligned.
- Page 12 STEP 17: Install Tip Kit 1. Attach part M to panel 1 with part F. 2. Attach part M to the wall with part L. ① STEP 18: Assembly complete!
