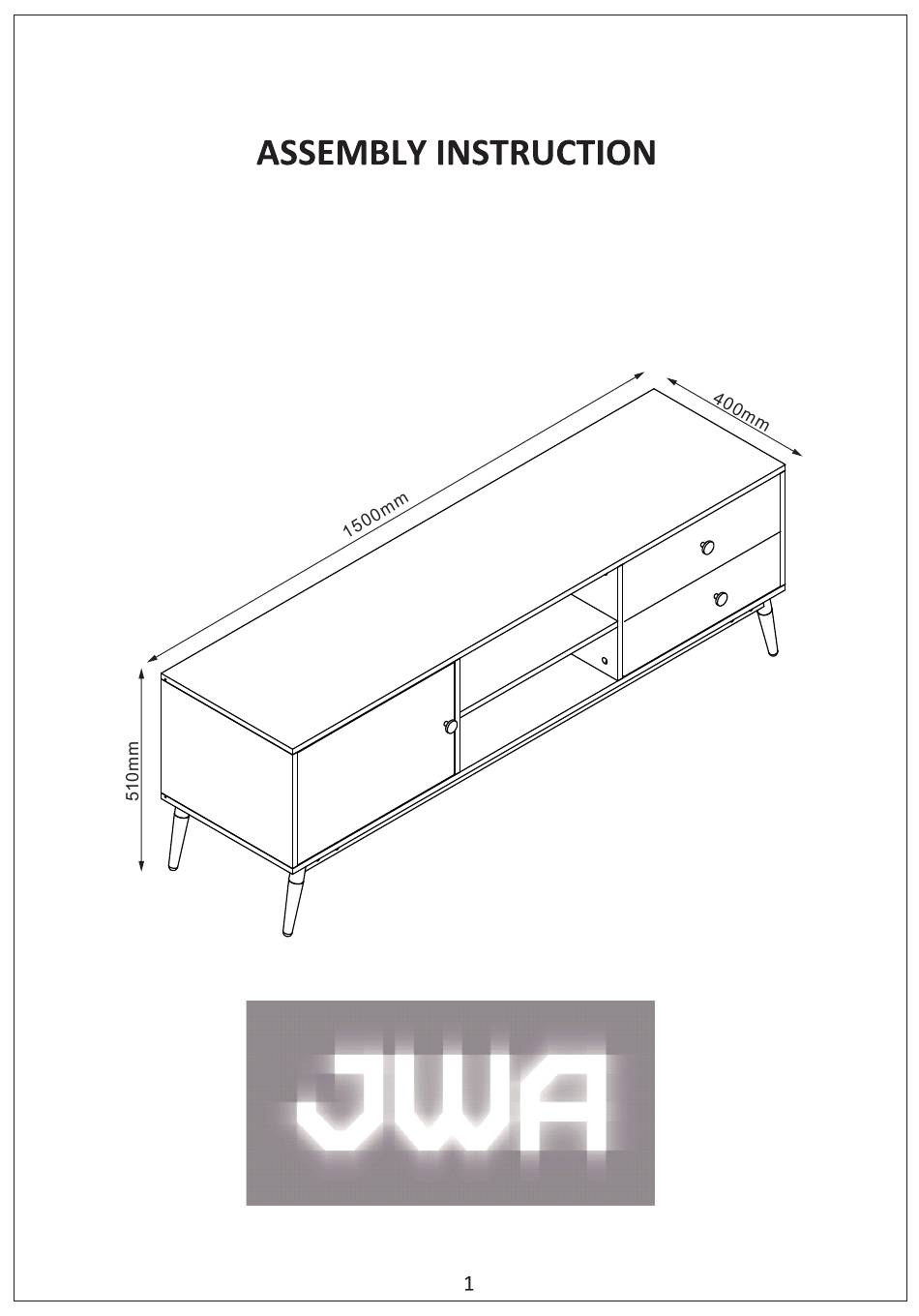

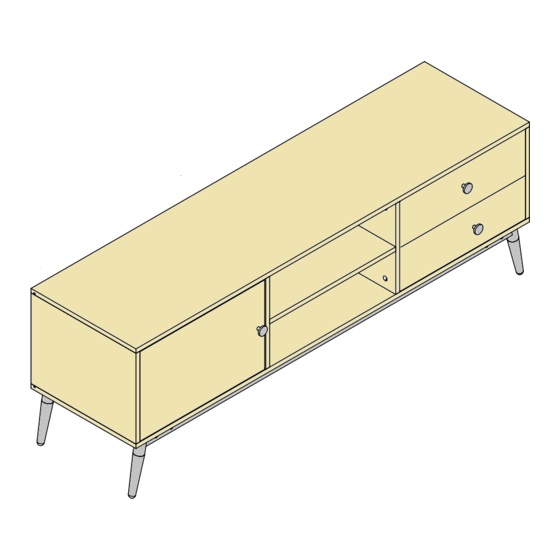

- Page 1 COBB Entertainment Unit ITEM CODE 75146 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 8X30mm M6X35mm M6X12mm 36pcs 4pcs 8pcs 8pcs 20pcs M4X18mm ST3.5X14mm ST3.5X18mm 3pcs 8pcs 3pcs 32pcs 8pcs ST4X25mm 2pcs 4pcs 2pcs 2pcs...
- Page 4 Top panel Right middle panel Drawer left panel Drawer right panel Bottom panel Layer panel Drawer back panel Left panel Back panel Right panel Door panel Drawer bottom panel Left middle panel Drawer front panel Main frame Connection frame...
- Page 5 1. Attach connection frame P2 to frame P1 with part D. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 4 and 6 with part H.
- Page 6 1. Attach frames P1 and P2 to panel 2 with part C. 1. Insert parts A and B into panel 5. 2. Attach part L to the other side of panel 5 with part H.
- Page 7 STEP 5: 1. Separate parts E1 and E2 (runners) as shown below. 2. Insert parts A and B into panel 6. 3. Attach part E1 to panel 6 with part H. STEP 6: 1. Attach panel 7 to panels 5 and 6 with parts A and B.
- Page 8 STEP 7: 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panel 4 with part H. STEP 8: 1. Insert parts A and B to panels 1 and 2.
- Page 9 STEP 9: 1. Attach panels 3, 4, 5 and 6 to panel 2 with parts A and B. STEP 10: 1. Slide panel 8 along slots of panels 3 and 4.
- Page 10 STEP 11: 1. Attach panel 1 to panels 3, 4, 5 and 6 with parts A and B. STEP 12: 1. Attach part F to panels 9 and 10 with part G. 2. Insert part A into panel 10.
- Page 11 STEP 13: 1. Insert part M into panel 8. 2. Insert part J into panel 8 with part I. STEP 14: 1. Attach the right side of part K to panel 9 with part H. 2. Attach the left side of part K to panel 3 with part H.
- Page 12 1. Attach panels 11 and 12 to panel 13 with part A. 2. Slide panel 14 along slots of panels 11 and 12.
- Page 13 STEP 17: 1. Attach panel 10 to panels 11 and 12 with part A. STEP 18: 1. Attach part E2 to panels 11 and 12 with part H.
- Page 14 STEP 19: 1. Install drawers into the cabinet, ensure runners are correctly aligned. STEP 20: Install Tip Kit 1. Attach part O to panel 1 with part H. 2. Attach part O to the wall with part N. ①...
- Page 15 STEP 21: Assembly complete!
