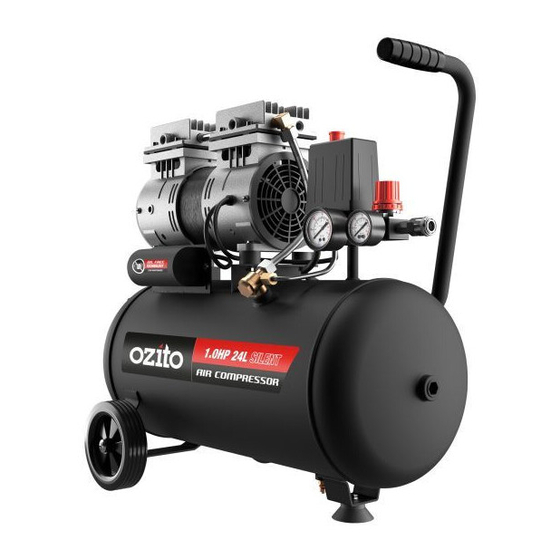

Ozito SAC-2110 Instruction Manual

SILENT
OIL FREE AIR
COMPRESSOR
24L 1.0HP
INSTRUCTION MANUAL
SPECIFICATIONS
Power Supply: 230–240V ~ 50Hz
Motor: 750W (1.0HP) S3 50%
Tank Capacity: 24L
No Load Speed: 1,400/min
Max. Pressure: 116psi / 8bar (0.8 MPa)
Max. Air Delivery: 143L/min
Free Air Delivery: 50L/min
IP Rating: IP20
Weight: 21.0kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
Ozito Industries Pty. Ltd.
25 Fox Drive, Dandenong South, Victoria, Australia 3175.
OIL FREE
TECHNOLOGY
LOW MAINTENANCE
1.0HP 24L SILENT
AIR COMPRESSOR
WARRANTY
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT
OIL FREE
TECHNOLOGY
LOW MAINTENANCE
24L Silent Air Compressor
2 x Wheels, 2 x Large Bolts, 4 x
Large Washers, 2 x Large Spring
Washers & 2 x Large Nuts
(5)00 6 (5)00 6
4 4
(7)00 (7)00
PRESSURE GAUGE PRESSURE GAUGE
(3)00 (3)00
8 8
2 2
(9)00 (9)00
(1)00 (1)00
10 10
0 0
kg/cm² kg/cm²
kPA Lb/in² kPA Lb/in²
(BAR) (PSI) (BAR) (PSI)
Air Filter, Support Foot, Small Bolt, 2
x Washers, Spring Washer & Nut
(5)00 PRESSURE GAUGE 4 6 (7)00 4 PRESSURE GAUGE (5)00 6 (7)00
(3)00 2 8 2 (3)00 8
(1)00 (9)00 (1)00 (9)00
0 kg/cm² 10 0 kg/cm² 10
kPA Lb/in² kPA Lb/in²
(BAR) (PSI) (BAR) (PSI)
1.0HP 24L SILENT
AIR COMPRESSOR
SAC-2110
0822
