- Page 1 WHAT’S IN THE BOX DIGITAL MINI COMPRESSOR INSTRUCTION MANUAL Digital Compressor SPECIFICATIONS Voltage: Max Current: 10Amp Max Pressure: 100psi Flow Rate: 16 l/min Accessories x 7 Weight: ozito.com.au DMC-1000...
-
Page 2: Know Your Product

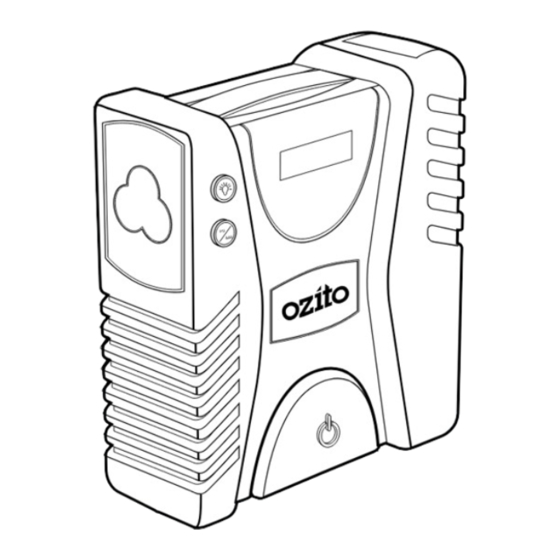

KNOW YOUR PRODUCT SETUP & PREPARATION FRONT VIEW 1 LED Light 4 Digital Pressure Gauge 1. ADAPTORS 2 Light Button 5 Carry Handle 3 PSI / BAR Button 6 On/Off Button WARNING: ENSURE ThE TOOL IS SWITChED OFF AND 7 Side Compartment DISCONNECTED FROM ThE pOWER SUppLy BEFORE pERFORMING ANy OF ThE FOLLOWING STEpS. -
Page 3: Operation
OPERATION 2. SWITCHING ON & OFF 3. CONTROLS Connecting to a 12V outlet Light Button The compressor has a built-in LED light for ease of use at night or in a 1 Roll out the 12V socket from dark area. the base of the unit. -
Page 4: Inflating Tyres
4. INFLATING 5. INFLATING TYRES 1 Open the side IMpORTANT: BEFORE CONNECTING OR DISCONNECTING compartment and roll ACCESSORIES, ALWAyS MAKE SURE ThAT ThE out the air hose. COMpRESSOR IS OFF. 1 Attach the required adator for the job. NOTE: See the following pages to select the correct adaptors. - Page 5 Disconnect the 6 Place the adaptors and air 12V socket. hose back into thier original compartments. Disconnect the 12V socket. NOTE: The same proccess can be used to inflate balloons using the general purpose adaptors instead of the ball adaptor. DMC-1000...
-
Page 6: Replacing Fuse
OPERATION 8. REPLACING FUSE 9. TROUbLESHOOTING WARNING: ENSURE ThE TOOL IS SWITChED OFF AND problem Cause Solution DISCONNECTED FROM ThE pOWER SUppLy BEFORE The compressor Compressor not Connect the 12V pERFORMING ANy OF ThE FOLLOWING STEpS. does not start connected to the power socket to a 12V DC outlet The 12V socket is fitted with a 10A fuse to protect the air compressor. -
Page 7: Maintenance
Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the Compressor by an unauthorised person or by mishandling of the Compressor. - Page 8 Tool: 12V Digital Mini Compressor SPARE PARTS Model No. DMC-1000 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description part No. Description part No. 8-10 Adaptors Kit...
-
Page 9: Electrical Safety
ELECTRICAL SAFETY WARNING! voltage on the rating plate. When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid and material damage. -
Page 10: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OzITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0514...
