ADTRAN 3192 Integrated Central Office Terminal Installation And Maintenance Manual

3192 Integrated Central Office Terminal (ICOT)
CONTENTS
1. GENERAL ........................................................... 1
2. INSTALLATION ................................................ 2
3. PROVISIONING ................................................. 3
4. TESTING ............................................................. 6
5. DEPLOYMENT GUIDELINES ......................... 6
6. ICOT TROUBLESHOOTING
PROCEDURES ................................................... 7
7. SPECIFICATIONS .............................................. 8
8. MAINTENANCE ................................................ 9
9. WARRANTY AND CUSTOMER SERVICE .... 9
Appendix A. HDSL Loopbacks ............................ A-1
FIGURES
Figure 1. 3192 ICOT ............................................. 1
Figure 2. Integrated DLC Configuration ............... 2
Figure 3. Universal DLC Configuration ............... 3
Figure 4. Card Edge Connections ......................... 3
Figure 5. RS-232 (DB-9) Pin Assignments ........... 4
Figure 6. 3192 ICOT Menu Tree .......................... 5
Figure 7. Bantam Jack Arrangement ..................... 6
Figure 8. Loopback Configurations ...................... 6
Figure 9. CSA Deployment Guidelines................. 7
TABLES
Table 1. Compliance Codes ................................. 3
Table 2. Faceplate LED Indicators ...................... 4
Table 3. HDSL Loss Values ................................ 7
Table 4. Loop Insertion Loss Data ....................... 7
Table 5. ICOT Troubleshooting Guide ................ 7
Table 6. 3192 ICOT Specifications ..................... 8

1. GENERAL

This practice is an installation and maintenance guide
for the 3192 Integrated Central Office Terminal
(ICOT), P/N 1179512L2, illustrated in Figure 1. This
unit is to be used exclusively with the Total Access
1000 Remote, P/N 1179001L1.
Revision History
This is the first issue of this practice. Future changes
to this document will be summarized in this
paragraph.
61179512L2-5A
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are Section 61179512L2-5, Issue 1
trademarks, registered trademarks, or trade names of their respective holders.
CLEI Code VACJCXBC_ _
TA1000 ICOT
1179512L2
H
LP1
D
S
L
LP2
DSX
ALM
LBK
R
S
2
3
2

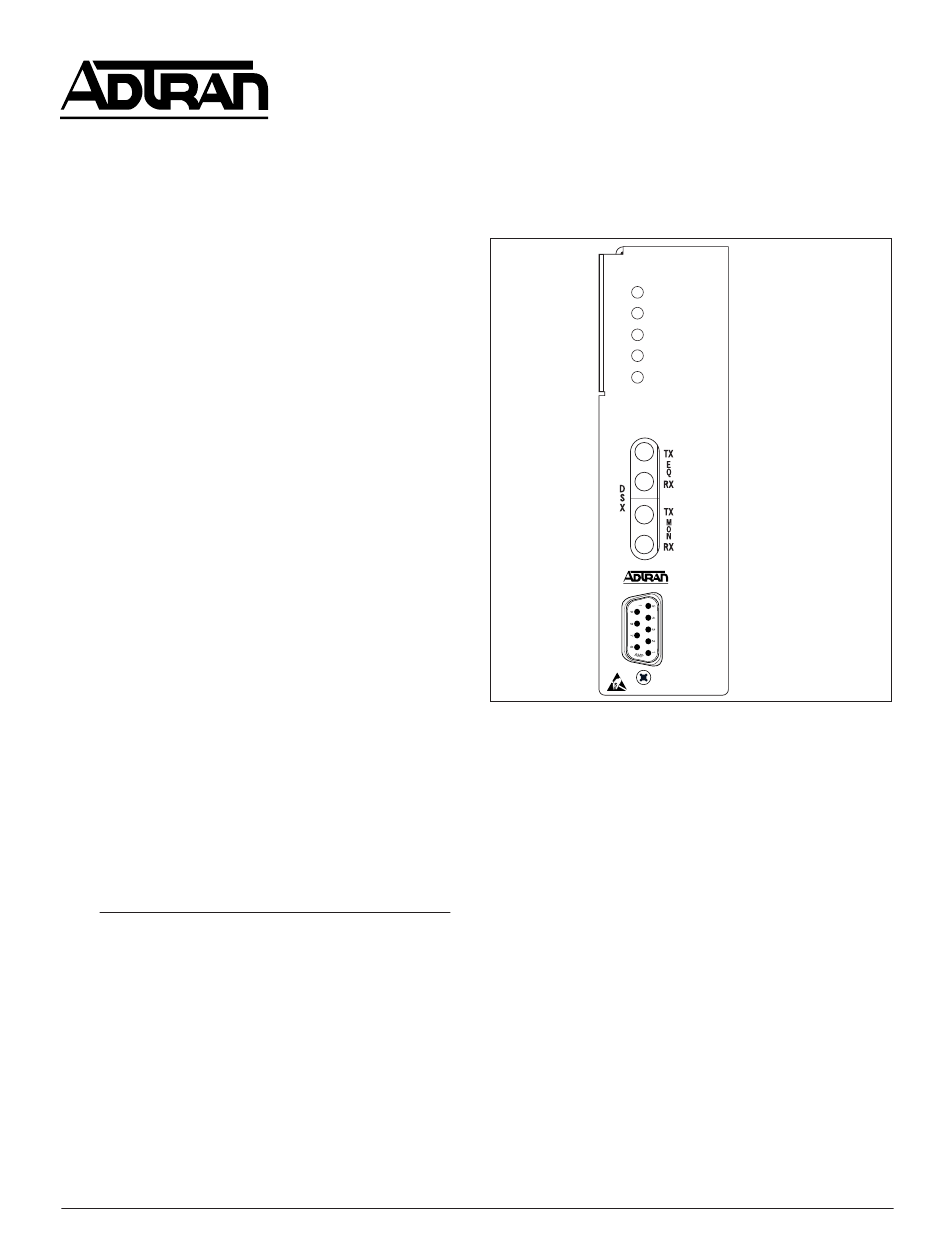

Figure 1. 3192 ICOT
Features
The 3192 ICOT incorporates the following features:
• Allows access to the Total Access 1000 RT
modules through the craft interface port on the
faceplate
• Flash Upgrade of the ICOT and the Total Access
1000 BCU through the craft interface port on the
faceplate
• Provides span power at ±135 VDC to the entire
Total Access 1000 system
• 10-year Warranty
Description
The 3192 ICOT is a high performance line interface
unit used to deploy HDSL using 4-wire metallic
facilities. This unit occupies two slots in the 3192
shelf. The ADTRAN 3192 ICOT must be deployed in
conjunction with ADTRAN Total Access 1000
Remote System. The 3192 ICOT can be deployed in
circuits consisting of one ICOT and one
Section 61179512L2-5A
Issue 1, December 2001
1
