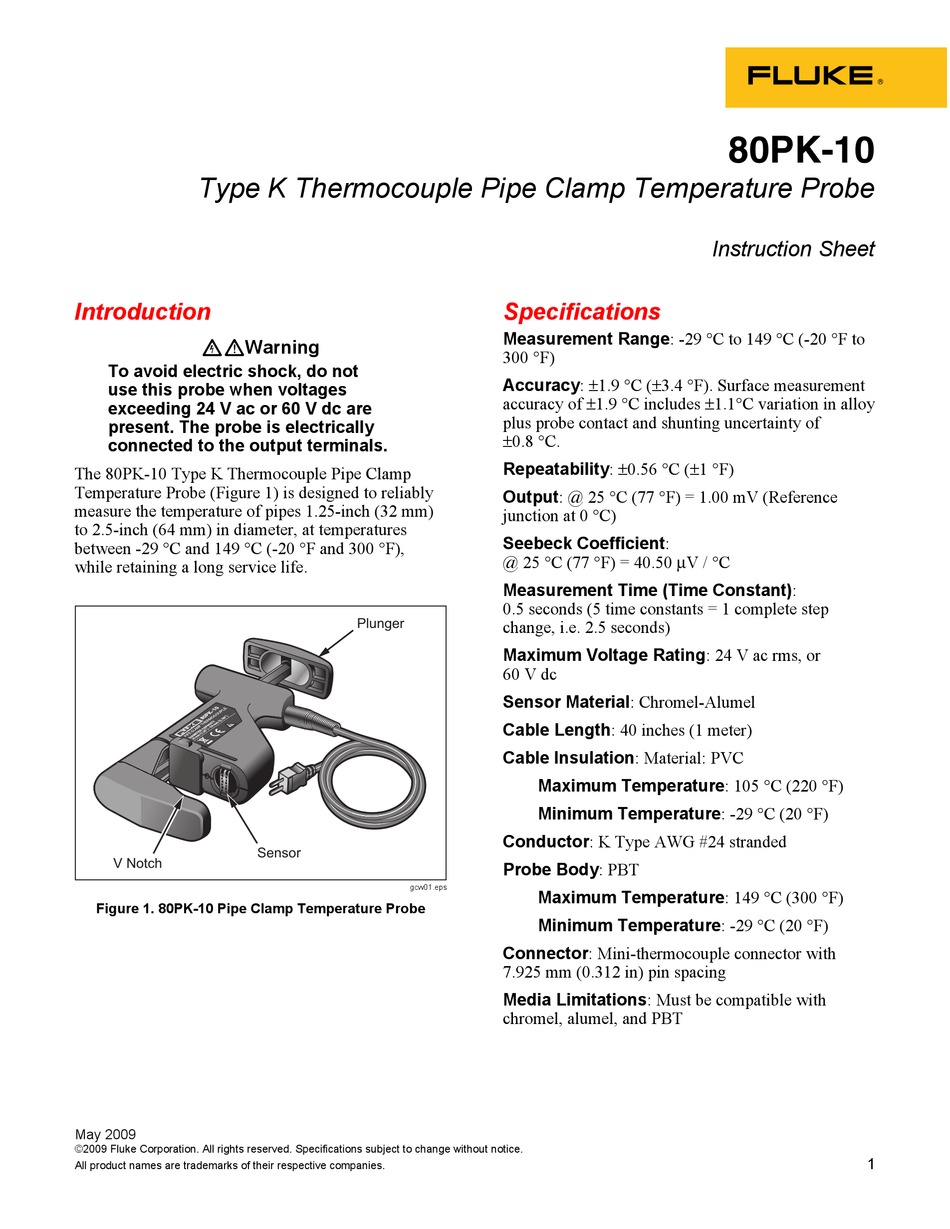

Fluke 80PK-10 Instruction Sheet

Type K Thermocouple Pipe Clamp Temperature Probe
Introduction
XWWarning
To avoid electric shock, do not
use this probe when voltages
exceeding 24 V ac or 60 V dc are
present. The probe is electrically
connected to the output terminals.
The 80PK-10 Type K Thermocouple Pipe Clamp
Temperature Probe (Figure 1) is designed to reliably
measure the temperature of pipes 1.25-inch (32 mm)
to 2.5-inch (64 mm) in diameter, at temperatures
between -29 °C and 149 °C (-20 °F and 300 °F),
while retaining a long service life.
V Notch
Figure 1. 80PK-10 Pipe Clamp Temperature Probe
May 2009
©2009 Fluke Corporation. All rights reserved. Specifications subject to change without notice.
All product names are trademarks of their respective companies.
Plunger
Sensor
gcw01.eps
Specifications
Measurement Range: -29 °C to 149 °C (-20 °F to
300 °F)
Accuracy: ±1.9 °C (±3.4 °F). Surface measurement
accuracy of ±1.9 °C includes ±1.1°C variation in alloy
plus probe contact and shunting uncertainty of
±0.8 °C.
Repeatability: ±0.56 °C (±1 °F)
Output: @ 25 °C (77 °F) = 1.00 mV (Reference
junction at 0 °C)
Seebeck Coefficient:
@ 25 °C (77 °F) = 40.50 μV / °C
Measurement Time (Time Constant):
0.5 seconds (5 time constants = 1 complete step
change, i.e. 2.5 seconds)
Maximum Voltage Rating: 24 V ac rms, or
60 V dc
Sensor Material: Chromel-Alumel
Cable Length: 40 inches (1 meter)
Cable Insulation: Material: PVC
Maximum Temperature: 105 °C (220 °F)
Minimum Temperature: -29 °C (20 °F)
Conductor: K Type AWG #24 stranded
Probe Body: PBT
Maximum Temperature: 149 °C (300 °F)
Minimum Temperature: -29 °C (20 °F)
Connector: Mini-thermocouple connector with
7.925 mm (0.312 in) pin spacing
Media Limitations: Must be compatible with
chromel, alumel, and PBT
