- Page 1 99 Washington Street Melrose, MA 02176 800.517.8431 TestEquipmentDepot.com 820-2 Stroboscope Users Manual September 2014 © 2014 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
- Page 3 Table of Contents Title Page Introduction ..............1 How to Contact Fluke ..........1 Safety ................. 2 Symbols ..............3 Standard Equipment ..........4 Features ..............5 Auto Off ..............8 Low-Battery Indicator ..........8 Product Use ............... 9 Default Settings ............9 Setup Menu .............
- Page 4 820-2 Users Manual...
- Page 5 List of Tables Table Title Page 1. Symbols ..............3 2. The Product ............... 6 3. Display ............... 7 List of Figures Figure Title Page 1. The Product ............... 5 2. External Trigger Connector Polarity ......11 3. Battery Replacement ..........13...
- Page 6 820-2 Users Manual...
-
Page 7: Introduction

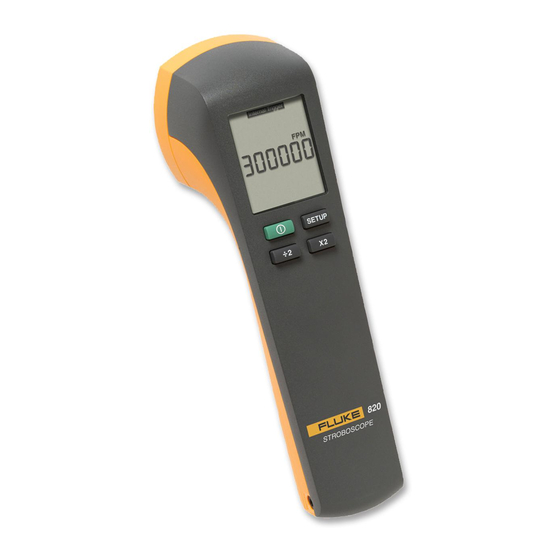

Introduction The 820-2 Stroboscope (the Product) uses an adjustable LED strobe light to show the movement of mechanical parts. The frequency range is 30 flashes per minute (FPM) to 300,000 FPM. -
Page 8: Safety
820-2 Users Manual Safety A Warning identifies conditions and procedures that are dangerous to the user. Warning To prevent possible personal injury: Read all safety information before you use the • Product. Carefully read all instructions. • Use the Product only as specified, or the •... -
Page 9: Symbols
Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation" product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. -
Page 10: Standard Equipment
820-2 Users Manual Standard Equipment If an item below is missing or damaged, contact Fluke. The Product comes with: Quick Reference Guide • Safety Information • International Registration Card • Statement of Quality • Hard Case • AA Batteries (3) •... -
Page 11: Features
Stroboscope Features Features Figure 1, Table 2, and Table 3 show the Product. gsh01.eps Figure 1. The Product... -
Page 12: The Product
820-2 Users Manual Table 2. The Product Item Description Display Power Button- Push to turn on the Product. Push and hold for 2 seconds to turn off the Product. Push to divide the current set value by two. -
Page 13: Display
Stroboscope Features Table 3. Display gsh02.eps Item Description Adjustable pulse width in microseconds (μs). Adjustment is accessed in the Setup Menu. Adjustable pulse width in degrees. Adjustment is accessed in the Setup Menu. Primary display. Six digits with decimal. ... -
Page 14: Auto Off
820-2 Users Manual Table 3. Display (cont.) Item Description Item Description Low battery. Replace 1/min or RPM for the battery. external trigger input. Flashes per minute Flashes per second. (FPM), default at power Adjustment is accessed in the Setup Menu. -
Page 15: Product Use
Stroboscope Product Use Product Use The subsequent sections tell you how to use the Product. Push to turn on the Product. Push and hold for 2 seconds to turn off the Product. Default Settings To set the Product to the default settings, push and hold and . -
Page 16: Setup Menu
820-2 Users Manual Setup Menu When you push , the display shows the Setup menu. From the Setup menu, you can change these parameters: Hz setting – Adjust the flashes per seconds in Hz. • Pulse width in μs () – Adjust the flash intensity in •... -
Page 17: External Trigger
For Connector polarity information, see Figure 2. gsh04.eps Figure 2. External Trigger Connector Polarity Maintenance Caution The Product contains no user-serviceable parts. To prevent damage to the Product, do not open the case. For service, see “How to Contact Fluke”. -
Page 18: How To Clean The Product
820-2 Users Manual How to Clean the Product Regularly clean the case with a damp cloth and mild detergent. Caution To prevent damage to the Product, do not use abrasives or solvents to clean the Product case. How to Change the Batteries The Product is energized by three AA (LR6) batteries. -
Page 19: Battery Replacement
Stroboscope Maintenance gsh03.eps Figure 3. Battery Replacement... -
Page 20: Specifications
820-2 Users Manual Specifications Mechanical Specifications Size (H x W x L) ....5.71 cm x 6.09 cm x 19.05 cm (2.25 in x 2.4 in x 7.5 in) Weight ........ 0.24 kg (0.53 lb) Environmental Specifications Operating Temperature ..0 °C to +45 °C (+32 °F to +113 °F) Storage Temperature .. - Page 21 Stroboscope Specifications Safety ......... IEC 61010-1:Pollution Degree 2 Electromagnetic Environment ....... IEC 61326-1:Industrial Group1 ISM equipment: group 1 contains all ISM equipment in which there is intentionally generated and/or used conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself. Class A equipment is suitable for use in non-domestic locations and/or directly connected to a low-voltage power supply network.
-
Page 22: Miscellaneous Specifications
820-2 Users Manual Miscellaneous Specifications Battery Type ......3 x AA Alkaline LR6 Flash Frequency Range ......30 FPM to 300,000 FPM 0.5 Hz to 5000 Hz Accuracy ......0.02 % Resolution ....... 30 FPM to 999 FPM = 0.1 1000 FPM to 300,000 FPM = 1 0.5 Hz to 999 Hz = 0.1...
