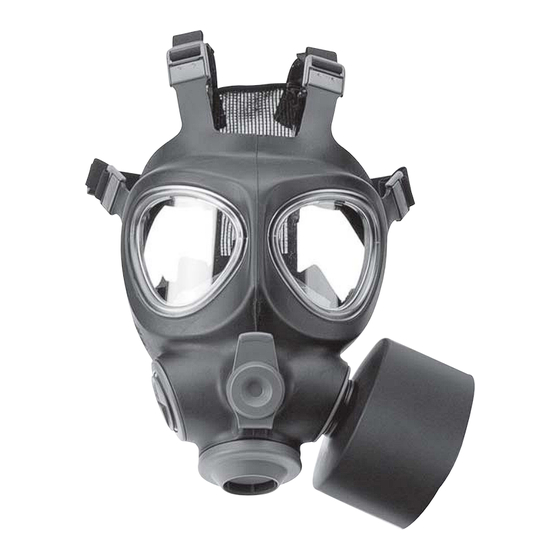

Full facepiece respirator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

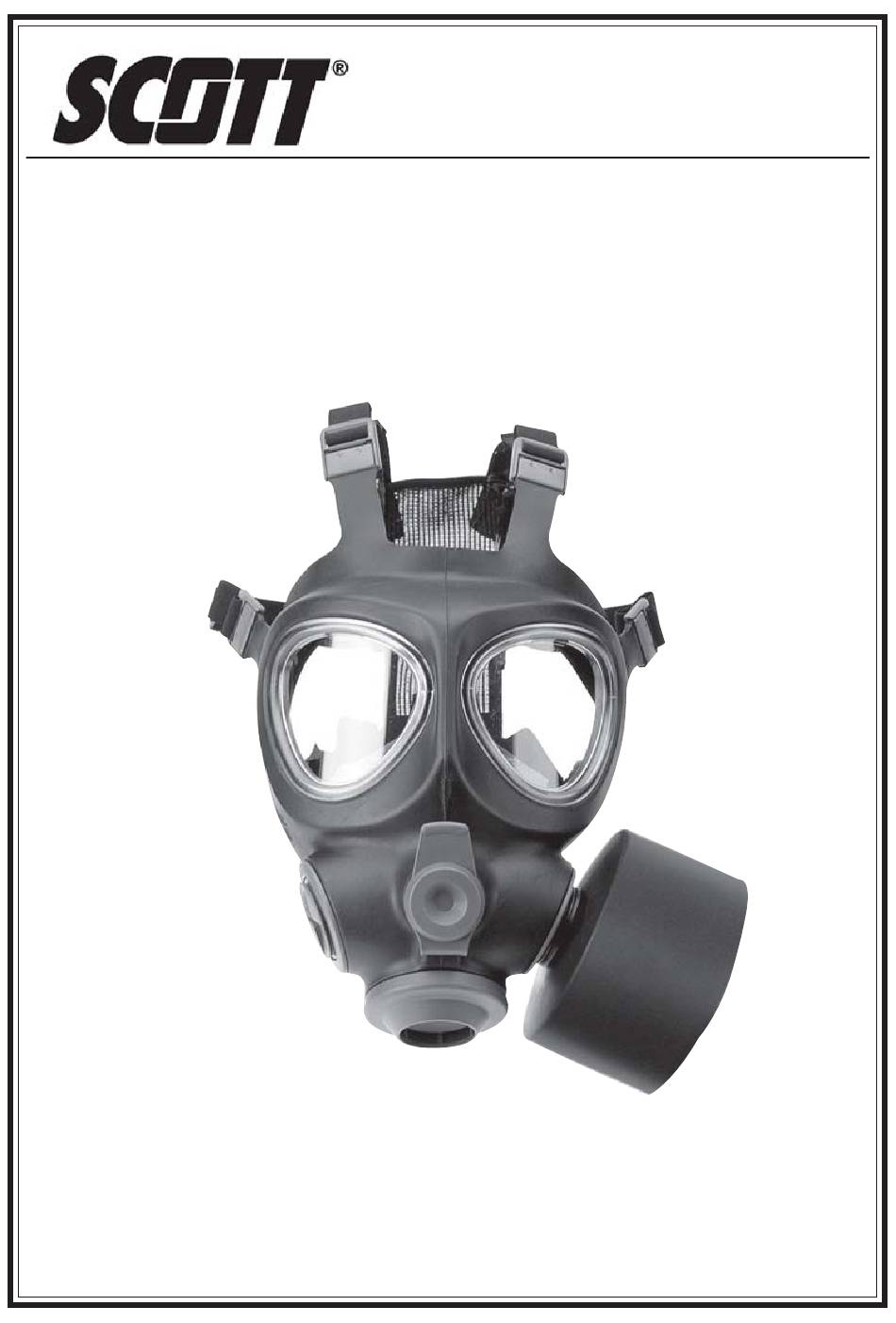

USE INSTRUCTIONS
SCOTT HEALTH AND SAFETY
M95/M110 FULL FACEPIECE
RESPIRATOR
Copyright © 2008, SCOTT, All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scott M95

Summary of Contents for Scott M95

  • Page 1 USE INSTRUCTIONS SCOTT HEALTH AND SAFETY M95/M110 FULL FACEPIECE RESPIRATOR Copyright © 2008, SCOTT, All Rights Reserved...

  • Page 3: Table Of Contents

    SCOTT HEALTH AND SAFETY M95/M110 FULL FACEPIECE RESPIRATOR USE INSTRUCTIONS TABLE OF CONTENTS DESCRIPTION ..............2 NIOSH AIR PURIFYING RESPIRATOR CAUTIONS AND LIMITATIONS FOR USE ......4 NIOSH CBRN AIR PURIFYING RESPIRATOR CAUTIONS AND LIMITATIONS FOR USE ......5 SPECIFIC USE LIMITATIONS ..........6 FACEPIECE FITTING ............

  • Page 4: Description

    VIDING LITTLE OR NO PROTECTION AGAINST THE CONTAMINATED ATMOSPHERE LEADING TO SERIOUS INJURY OR DEATH. The M95/M110 facepiece respirator uses a single canister which may be mounted on either the right or left side of the facepiece. The unused facepiece connector must be sealed with the supplied Connector Plug.
  • Page 5 M95 facepiece assembly is not approved for CBRN applications. Additional copies of the NIOSH Approval Label and the NIOSH CBRN Approval Label are available from your SCOTT distributor or by calling SCOTT Health and Safety at 1-800-247-7257. An INSTRUCTIONAL VIDEO is available to aid in the training of users of this respirator.

  • Page 6: Niosh Air Purifying Respirator

    NIOSH AIR PURIFYING RESPIRATOR CAUTIONS AND LIMITATIONS FOR USE (INDUSTRIAL) Not for use in atmospheres containing less than 19.5 percent oxygen. Not for use in atmospheres immediately dangerous to life or health. Do not exceed maximum use concentrations established by regulatory stan- dards.

  • Page 7: Niosh Cbrn Air Purifying Respirator

    NIOSH CBRN AIR PURIFYING RESPIRATOR CAUTIONS AND LIMITATIONS FOR USE Not for use in atmospheres containing less than 19.5% oxygen. Failure to properly use and maintain this product could result in injury or death. Follow the manufacturer’s User Instructions for changing canisters. All approved respirators shall be selected, fitted, used, and maintained in accor- dance with MSHA, OSHA, and other applicable regulations.

  • Page 8: Specific Use Limitations

    S – SPECIFIC USE LIMITATIONS The following general limitations are IN ADDITION TO AND DO NOT REPLACE THE SPECIFIC LIMITATIONS ON EACH RESPIRATOR. User MUST be instructed and trained in the proper use of this respirator and recognize its limitations. Do not use this equipment while under the influence of drugs, alcohol, or any medications or substances which may affect vision, dexterity, or judgment or when fatigue prevents safe operation.
  • Page 9 17. Refer to the NIOSH CBRN Cautions and Limitations section of this instruction. 18. If this facepiece is to be used with a SCOTT Powered Air Purifying Respirator (PAPR), refer to the user’s instructions provided with that product and to the most recent RESPIRATOR APPROVAL LABEL for the SCOTT PAPR.

  • Page 10: Facepiece Fitting

    In addition, a NEGATIVE PRESSURE LEAK TEST must be performed by the wearer each time the M95/M110 full facepiece respirator is used. SCOTT HEALTH AND SAFETY recommends that a NEGATIVE PRESSURE LEAK TEST be con- ducted as part of the donning procedure each time a user dons a respirator. See the DONNING PROCEDURE section of this instruction for details of performing a NEGATIVE PRESSURE LEAK TEST.
  • Page 11 HEAD HARNESS RIGHT LENS LEFT LENS 40MM CONNECTOR FOR FILTER NOSE CUP (INSIDE MASK) 40MM PLUG (OR OPTIONAL SPEECH DIA- PHRAGM) FILTRATION MEDIA EXHALATION CONNECTION FOR OPTIONAL VALVE DRINKING DEVICE PARTS OF THE MASK M95/M110 FULL FACEPIECE...

  • Page 12: Inspection Of Respirator Before Use

    WARNING THE INFORMATION IN THIS INSTRUCTION IS MEANT TO SUPPLEMENT, NOT REPLACE, THE INSTRUCTIONS, TRAINING, SUPERVISION, MAINTENANCE, AND OTHER ELEMENTS OF YOUR ORGANIZED RESPIRATORY PROTECTION PRO- GRAM. SEE WARNING ON PAGE ONE OF THIS DOCUMENT. INSPECTION OF THE RESPIRATOR BEFORE USE Always inspect and clean a new respirator before the first use.
  • Page 13 c) Check the exhalation valve for proper installation and any evidence of damage. Valve must lie flat and have no wrinkles that would prevent seal- ing. Check the exhalation valve for dirt or debris which might interfere with the seal of the valve. Clean or replace the valve as needed before use.

  • Page 14: Preparation For Use Of Respirator

    PREPARATION FOR USE OF THE RESPIRATOR NOTE AN INSTRUCTIONAL VIDEO IS AVAILABLE TO AID IN THE TRAINING OF USERS OF THIS RESPIRATOR. 1. Examine the facepiece to be certain that it is complete and in serviceable condition. Be certain that all components are undamaged and in serviceable condition.

  • Page 15: Use Of The Respirator

    USE OF THE RESPIRATOR 1. Respirators used for emergency escape purposes should be inspected at least every 30 days. See CLEANING, INSPECTION, AND STORAGE section of this manual. 2. Install the filtration element according to the PREPARATION FOR USE section of this instruction. Use only one filtration element. Verify that the opposite facepiece connector is properly fitted with the facepiece plug or Speech Diaphragm Assembly.

  • Page 16: Donning Procedure

    VIDEO is available to aid in the training of users of this respirator. NOTE IF THE M95/M110 FULL FACEPIECE IS BEING DONNED FOR THE FIRST TIME OR IF THIS IS THE FIRST TIME A PARTICULAR STYLE FACEPIECE IS TO BE USED, REFER TO THE APPROPRIATE STEPS IN THE FACEPIECE FITTING SECTION OF THIS INSTRUCTION.

  • Page 17: Negative Pressure Leak Test

    9. Tighten the two temple straps. Adjust the temple straps by pulling the two temple strap ends to- ward the back of the head. Overtightening may cause discomfort. 10. Tighten the two forehead straps by pulling the forehead straps toward the back of the head. 11.

  • Page 18: Optional Drinking Device

    OPTIONAL DRINKING DEVICE The M95/M110 facepiece may be fitted with an optional Drinking Device. A face- piece which has been properly fitted with the optional Drinking Device permits connection of a drinking bottle. Refer to the user instructions provided with the Drinking Device for complete details of use.

  • Page 19: Termination Of Use

    TERMINATION OF USE To doff the facepiece (i.e.; Remove the facepiece and terminate respiratory pro- tection) proceed as follows: 1. Leave the contaminated area and/or be certain that respiratory protection is no longer required. Follow the decontamination procedures established by your respiratory protection program.

  • Page 20: Cleaning, Inspection And Storage

    CLEANING, INSPECTION AND STORAGE WARNING FAILURE TO PROPERLY CLEAN AND INSPECT THE FACEPIECE AND HARNESS MAY RESULT IN THE RESPIRATOR PROVIDING LITTLE OR NO PROTECTION AND MAY EXPOSE THE USER TO SUBSTANCES WHICH MAY CAUSE SERIOUS INJURY OR DEATH. Always inspect and clean a new respirator before the first use. Respirators should be inspected, cleaned and disinfected after each use.
  • Page 21 MERIC PORTION OF THE FACEPIECE. DO NOT USE BRUSH ON PLASTIC LENSES. 3. Rinse thoroughly with clean water. 4. Disinfect the facepiece according to the instructions supplied with the SCOTT recommended sanitizer or disinfectant. NOTE DISINFECTING MAY NOT BE NECESSARY IF THE RESPIRATOR IS REUSED BY THE SAME WORKER.
  • Page 22 CLEANING, INSPECTION AND STORAGE CONTINUED... INSPECTION IF ANY DAMAGE IS FOUND, REMOVE THE FACEPIECE FROM SER- VICE AND TAG FOR REPAIR BY AUTHORIZED PERSONNEL. 1. Examine the facepiece to be certain that it is complete and in serviceable condition. Be certain that all components are clean and undamaged. Exam- ine elastomeric portion of the facepiece for rips, tears, holes, deformation, cracks, stiffening or signs of aging.
  • Page 23 PERSONNEL. USE ONLY REPLACEMENT COMPONENTS MANUFAC- TURED BY SCOTT HEALTH AND SAFETY. WARNING USE ONLY REPLACEMENT COMPONENTS MANUFACTURED BY SCOTT HEALTH AND SAFETY. SEE SEPARATE REPLACEMENT PARTS LIST. USE OF UNAP- PROVED COMPONENTS MAY DEGRADE THE PERFORMANCE OF THE RESPI- RATOR WHICH MAY RESULT IN EXPOSING THE USER TO THE HARMFUL ATMO- SPHERE WHICH COULD CAUSE SERIOUS INJURY OR DEATH.

  • Page 24: Replacement Parts

    Inhalation Valve Discs, set of four (4) ....3 013372 Inhalation Valve Seats, set of two (2) ....4 012574 Nose cup for Regular M95/M110 ......5 012575 Nose cup for Small M95/M110 ......5 012773 Nose cup Valve Seats, set of two (2) ....6 012598 Head harness .............
  • Page 25 REPLACEMENT PARTS FOR M95/M110 FULL FACEPIECE RESPIRATOR...
  • Page 26 NOTES...
  • Page 28 Health & Safety Products Monroe Corporate Center PO Box 569 Monroe, NC 28111 Telephone 1-800-247-7257 FAX (704) 291-8330 www.scotthealthsafety.com P/N 89466-01 Rev F 4/08 Ref. no. 009792 Edition G 4/2008 Printed in Finland...
