Page 1: Table Of Contents

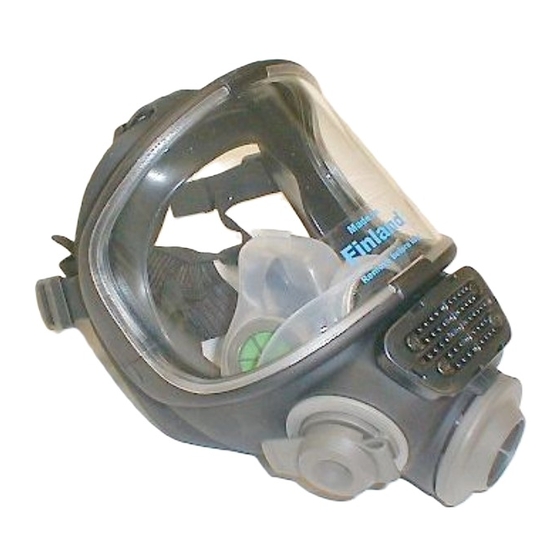

Mask M98 Construction Spare parts Date of manufacture Donning and Service Symbols Warranty Instructions for Use ENGLISH 5009726-D 05/2010... -
Page 3: Spare Parts
English – Spare parts 012692 Head harness PM 012694 Buckle set for harness PM (5) 012693 Visor frame set PM 012695 Visor PM PC (polycarbonate) 012795 Visor PM HC (hard coated) 012874 Valve seat set 98, including ( - ) - 1 x inhalation valve seat ( - ) - 2 x inner mask valve seat... -
Page 4: Donning And Service
Fig. A Fig. B Fig. C... - Page 5 Fig. D Fig. E1 + E2 Fig. F Fig. G Fig. H Fig. J Inner mask disc Fig. K Fig. L Fig. M...
- Page 6 Fig. N Fig. O Fig. P Fig. Q Fig. R Fig. S Fig. T Fig. U Fig. V Fig. X Speech channel cover...
-
Page 7: Symbols
These products are warranted to be free from defects in materials and workmanship at the time of delivery. Scott will be under no liability for any defect arising from wilful damage, negligence, abnormal working conditions, failure to follow the original manufacturers instructions, misuse or unauthorised alteration or repair. -
Page 8: English
Particle filters must be replaced at the latest when breathing resistance becomes too high. 2.10 The weight of filter used with a full face mask shall not exceed 500 g. The M98 is used with one filter only (the other opening on the mask is blocked by the manufacturer). - Page 9 Full face mask with gas filter *) Filter types A, B, E, K, AX, SX, Hg-P3 and NO-P3 have different applications. For more information, see Instructions for Use of Scott Health & Safety filters. Device with combined filter The specified multiples of threshold value for the gas or particle filters are given separately, but in all cases the lowest value applies *) Provided that the maximum permissible detrimental gas concentration for the gas filter is not exceeded.
- Page 10 4.7 Check the tightness of the mask (two alternative methods): 1) Cover the exhalation opening of the mask with your hand. Exhale gently to create overpressure. There must be no leakage between the face and the faceseal. 2) Cover the filter opening with your hand. Inhale to make the mask press onto your face. If you fail to get a tight fit (=potential leakage), adjust the head harness and filter, or use another size of the mask.
- Page 11 Replace the mouth piece when the mask is given to another user. 5.9 Disinfection After cleaning, disinfect the inside/faceseal with a disinfection solution (e.g. Scott Trigene), rinse and allow to dry. Finally, reassemble the mask.
- Page 12 5.10 Storage Storage protected from direct sunlight, at -10...+50 °C and relative humidity (RH) under 75 % (sealed filters RH max. 95 %). A properly stored, unused mask stays in good condition for a long storage period. The components should not be more than 12 years old. Before use, the mask must undergo a function test, see Table.
- Page 13 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
