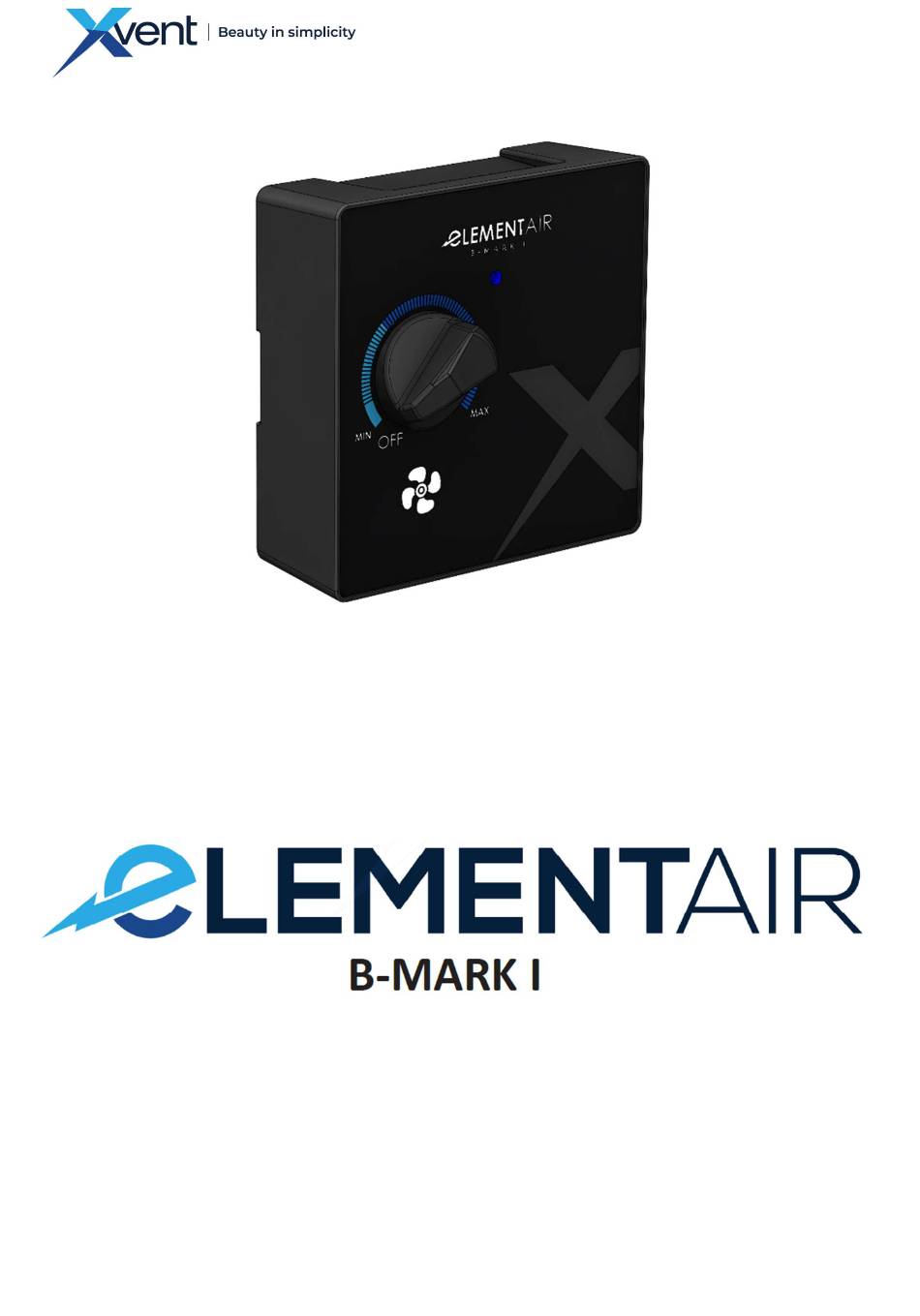

- Page 1 OPERATION AND INSTALLATION INSTRUCTIONS Verze 1 – GBR (11.3.2020) D-502-0168...
-
Page 2: Table Of Contents
CONTENS General information .................................. 3 1.1. Introduction ..............................3 1.2. Control of delivery and storage ........................3 1.3. Contents of the package ..........................3 1.4. Before start of installation ..........................3 Dimensions of the regulator ..............................3 Regulator installation ................................4 3.1. -
Page 3: General Information
General information 1.1. Introduction This document "Installation and Operating Manual" is intended for the Elementair-B-M1 regulator (hereinafter referred to as "the regulator") to continuously control the speed of the EC-motors for the fans. Detailed familiarisation with this document is important for the correct and safe installation and operation of the regulator. -
Page 4: Regulator Installation
Regulator installation 3.1. Regulator location The regulator is designed for wall installation in the interior environment of buildings. For proper functioning, the regulator must be located at the reference point – in the residence zone about 1.5 m above the floor; it must not be close to the door or window openings in the area where is a natural air movement (draft), direct sun light or any sources radiant heat. -
Page 5: Installation In The Working Position
INSTALLATION ON UNDER-PLASTER OR SURFACE-MOUNTED ELECTRICAL JUNCTION BOX COMPLETING THE CONTROL PANEL AFTER CONNECTING CONNECTING POWER SUPPLY AND CONTROL CABLES (ALIGN THE CABLES TO AVOID DAMAGE) 3.3. Installation in the working position The regulator is mounted on the wall in the vertical position – the side vents are facing down and up. The regulator shall be installed in such a way that air can flow around and the overheating is avoided. -
Page 6: Description Of Regulator
Description of regulator The regulator is used to continuously control the speed of the EC-motors with the control input 0-10VDC without connection to the mains power supply. The motor speed is controlled continuously by the control element (a knob) on the front panel of the regulator. -
Page 7: Recommended Electrical Wiring
Terminal clamp for regulator power supply EC fan connection terminals Description: +10V terminal designed to supply the Description: terminals for connecting the control regulator at 10VDC voltage from the EC fan PWM/0-10VDC (+); GND (-) with Max. current capacity of regulator: 10 mA resistance 10kΩ. -
Page 8: Regulator Maintenance
7. Regulator maintenance The regulator's maintenance consists in cleaning as needed, but at least once a year. Clean the regulator with a vacuum cleaner or fine dry cloth. Service Observe the generally applicable country-specific provisions. In case of any service activity, the regulator must be disconnected from the mains. -
Page 9: Conclusion
In the event of an unjustified complaint, all costs associated with this shall be borne by the complaining Party. Conclusion If you have any doubts about this product, please do not hesitate to contact us. Contact address: Xvent s.r.o. Poděbradská 289 53009 Pardubice-Trnová Czech Republic www.xvent.cz Verze 1 – GBR (11.3.2020) D-502-0168...
