7.3.3 Auxiliary supply

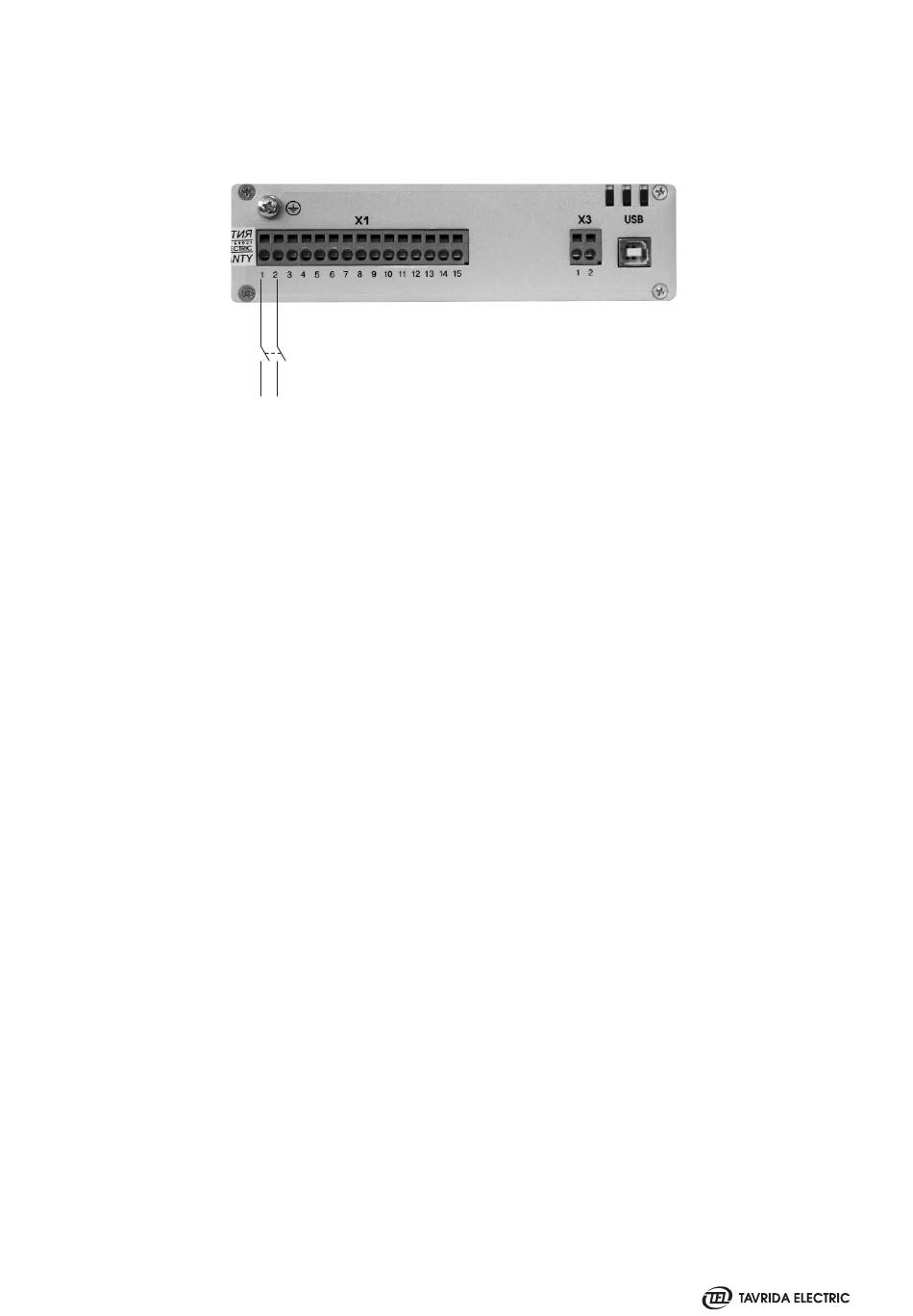

Connection of CM_16_1 to power supply is shown below.
~ (+)
Power supply inputs
Figure 41
CM_16 power supply connection
The type of MCB shall be selected according to the CM consumption data given in Chapter 4.
If the manual generator CBunit_ManGen is used for charging, its DC voltage outputs should be connected to
power supply inputs of CM_16_1.
~ (-)
MCB
55
