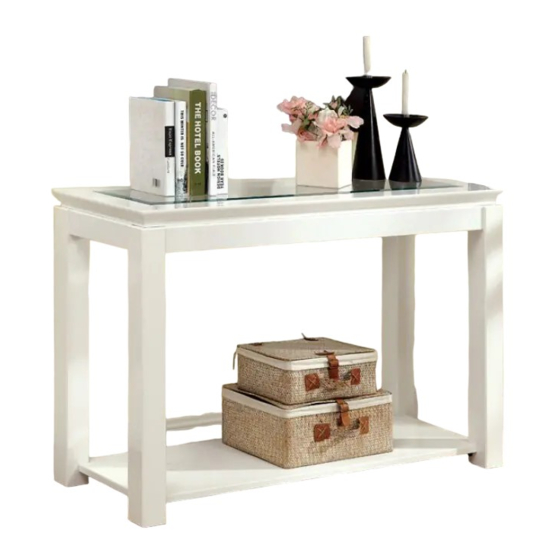

Summary of Contents for Furniture of America Venta CM4238WHS
- Page 1 Rev: 15-12-31...
- Page 3 #B x 16pcs Bracket...
- Page 4 2. Prepare 1 bolt assembly by first inserting a lock washer (#J) onto the bolt (#G) then a flat washer (#I) onto that same bolt (#G). Align the support 1. Prepare 8 bolt assemblies by first inserting a leg (#4) to the center of lock washer (#J) onto the bolt (#B) then a flat the bottom panel (#3).
- Page 5 2. Prepare 8 bolt assemblies by first inserting a lock washer (#J) onto the bolt (#B) then a flat washer (#I) onto that same bolt (#B), in that order. Insert the bolt assemblies into the corners and secure using the Allen wrench (#H). 1.
