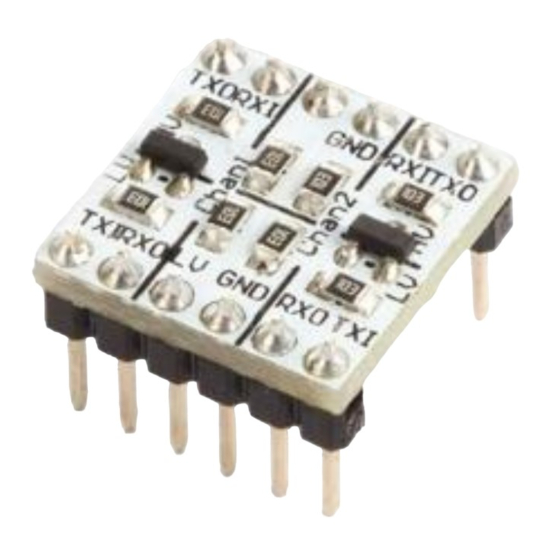

- Page 1 USER MANUAL Arduino® 3.3 V/5 V TTL logic level converter module WPI410 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 What is Arduino® Arduino is an open-source prototyping platform based on easy-to-use hardware and ® software. Arduino ® boards are able to read inputs – light-on sensor, a finger on a button or a Twitter message – and turn it into an output – activating of a motor, turning on an LED, publishing something online.
- Page 4 Circuit Diagram The WPI410 LLC is very easy-to-use. The twelve pins – six on each side – can be divided into groups of three.
- Page 5 The middle section of the board serves the high and low voltages. Supplying voltage to all four of these pins is required. Example: To convert 3.3 V into 5 V, run the 5 V into the HV side and 3.3 V into the LV side. Also, make sure each is grounded.
- Page 6 Modifications and typographical errors reserved - © Velleman Group nv. WPI410_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
