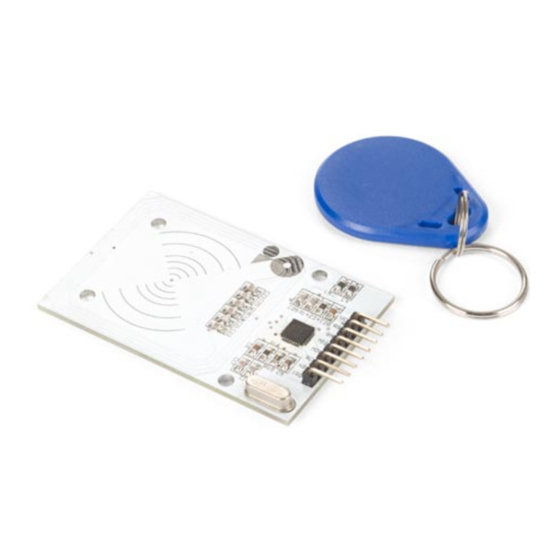

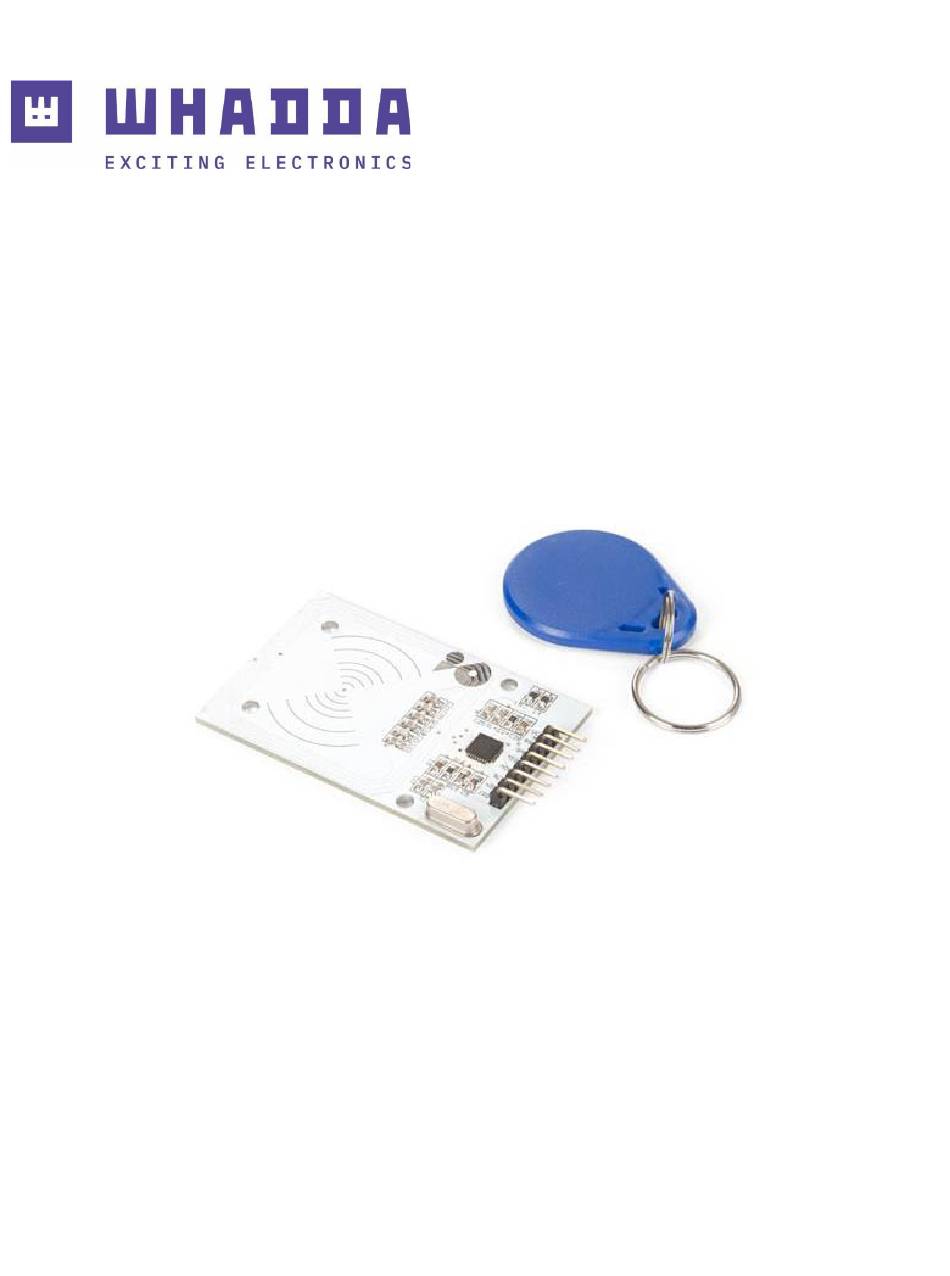

- Page 1 USER MANUAL Arduino®-compatible RFID read-and-write module WPI405 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 RED Declaration of Conformity Hereby, Velleman Group nv declares that the radio equipment type WPI405 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.
- Page 4 Connection Arduino® WPI405 +3.3 V MISO MOSI NSS (= SDA) IRQ (not used) Connect your controller board (WPB100, WPB101…) to your computer using a USB cable. ® Start the Arduino IDE. IDE, open the library manager by selecting Sketch → Include ®...
- Page 5 Check all connections and switch on your controller. Your WPI405 can now be tested. ® In your Arduino IDE, start the serial monitor (Ctrl + Shift + M). Bring the card or tag in front of the WPI405. The card code will appear on the serial monitor.
- Page 6 Modifications and typographical errors reserved - © Velleman Group nv. WPI405_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
