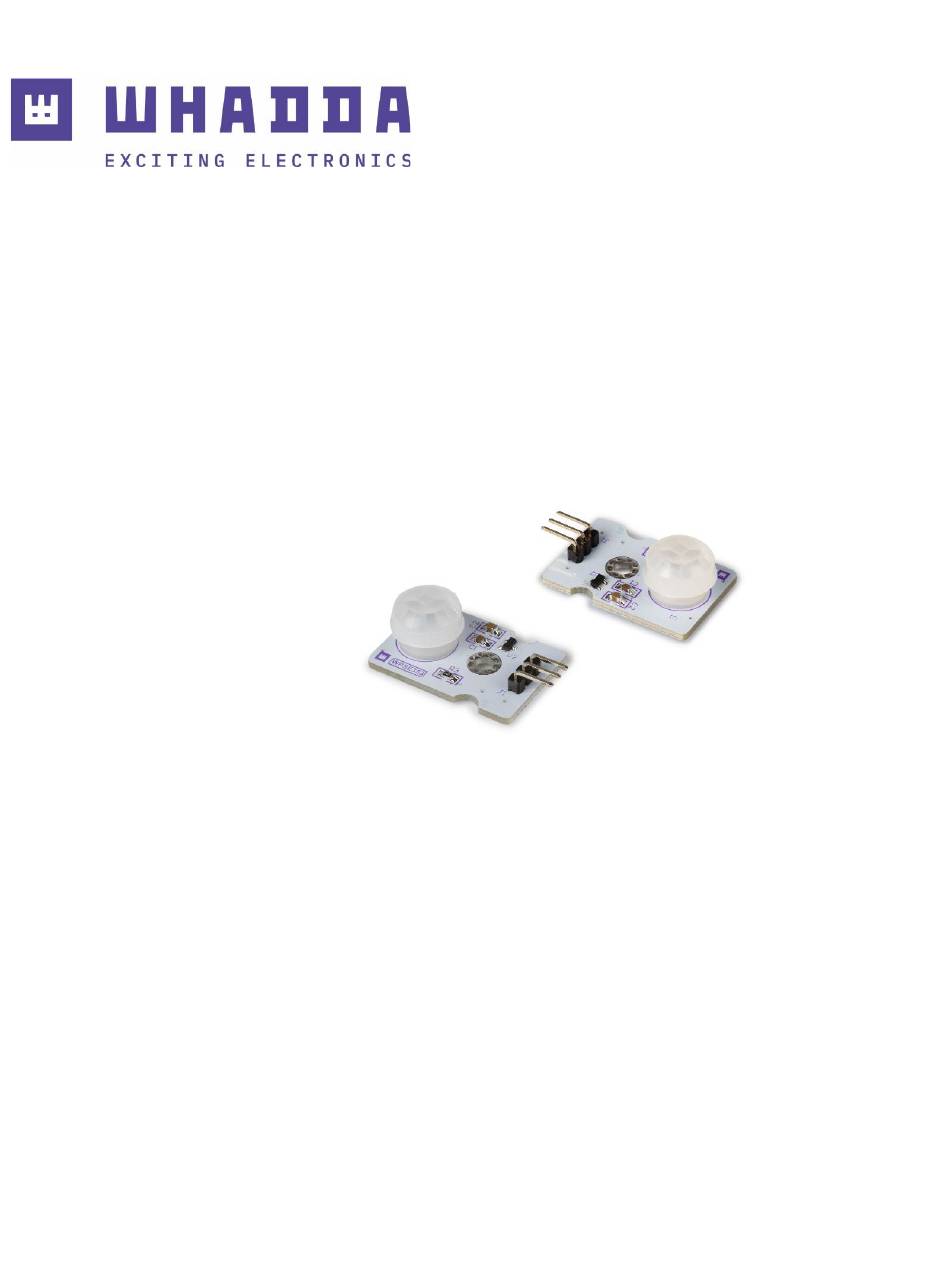

- Page 1 MANUAL MICRO PIR MOTION SENSOR MODULE WPSE353 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

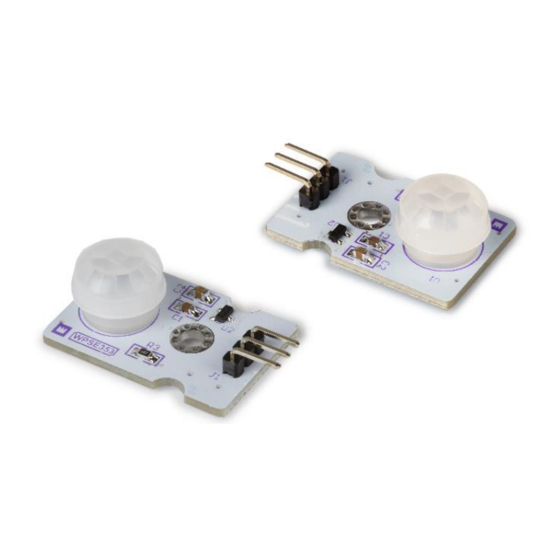

- Page 3 Product overview This Whadda module uses a PIR (Pyroelectric InfraRed) motion sensor to detect infrared signals from a moving person or moving animal. The module sends out a simple HIGH logic level signal for 2-3 seconds when it has detected motion.
- Page 4 Example program You can download the example Arduino® program by going to the official Whadda github page: github.com/WhaddaMakers/Micro-PIR-motion-sensor 1. Click the “Download ZIP” link in the “Code” menu: 2. Unzip the downloaded file, and browse to the example_code folder. Open the example Arduino®...
- Page 5 Modifications and typographical errors reserved - © Velleman Group nv. WPSE353 Velleman Group NV, Legen Heirweg 33 - 9890 Gavere...
