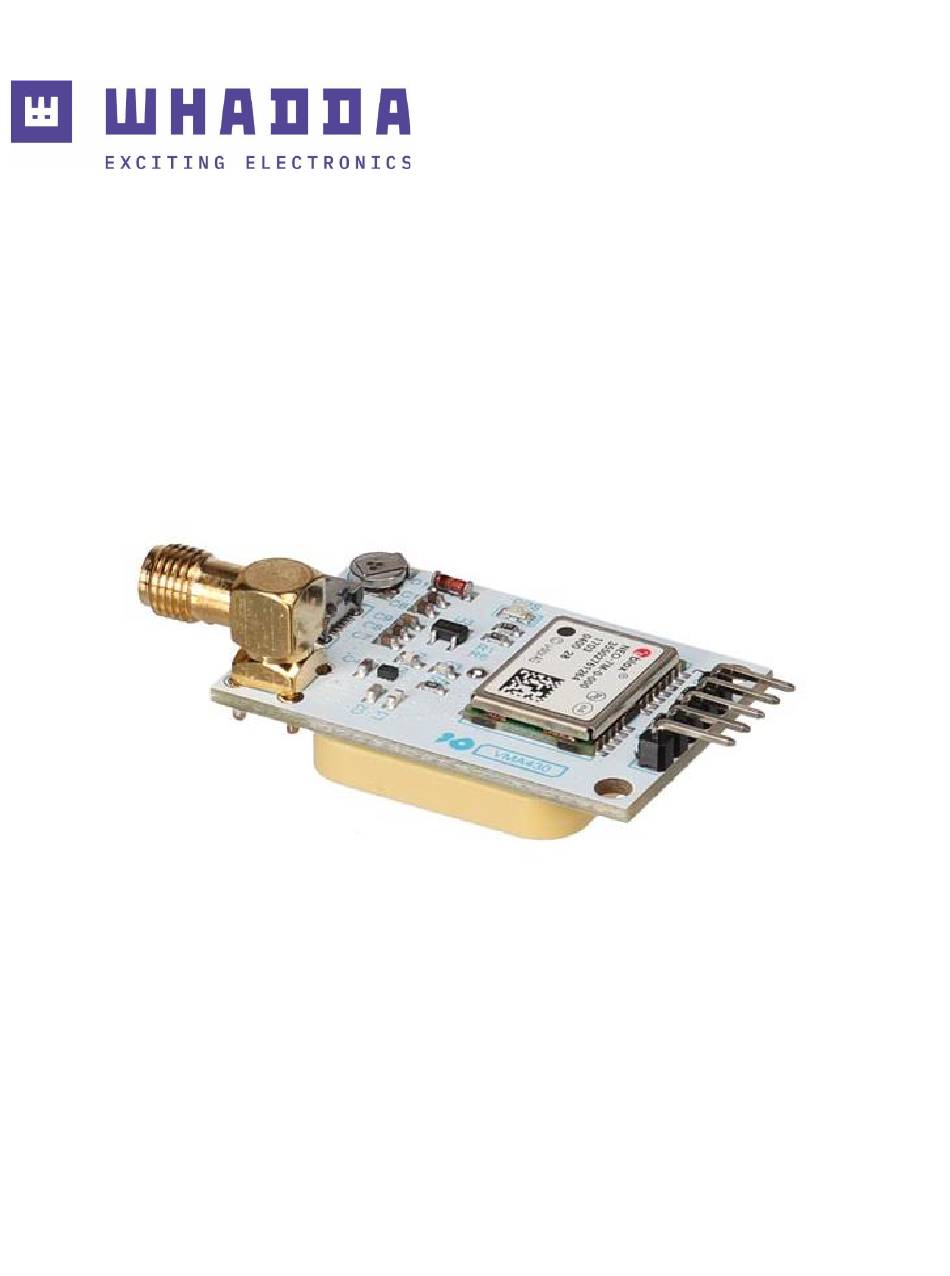

- Page 1 USER MANUAL GPS module u-blox NEO-7M for Arduino® WPI430 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

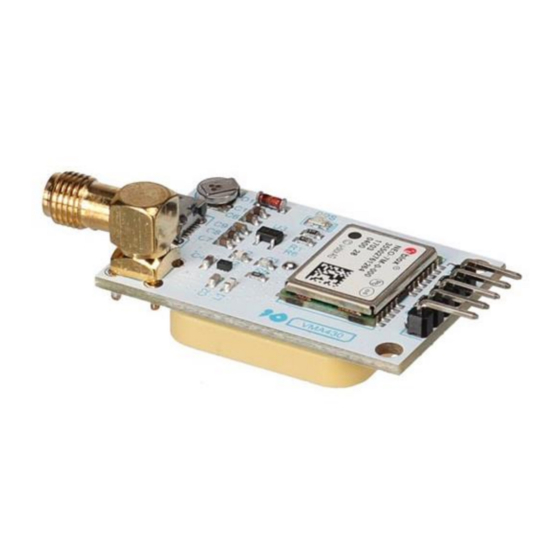

- Page 3 7 GNSS (GPS, GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry-proven NEO form factor. The Whadda WPI430 GPS module uses the u-blox NEO-M chipset at its core in order to provide accurate location data with low acquisition times.
- Page 4 Specifications • supply voltage: 3.3-5 VDC (or by USB cable) • connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse) • default baud rate: 9600 baud • dimensions: 4 x 2.5 x 1.5 cm • weight: 15 g Features •...
- Page 5 Connection Example Library and examples can be found at https://github.com/Velleman/VMA430_GPS_Module.
- Page 6 Modifications and typographical errors reserved - © Velleman Group nv. WPI430_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
