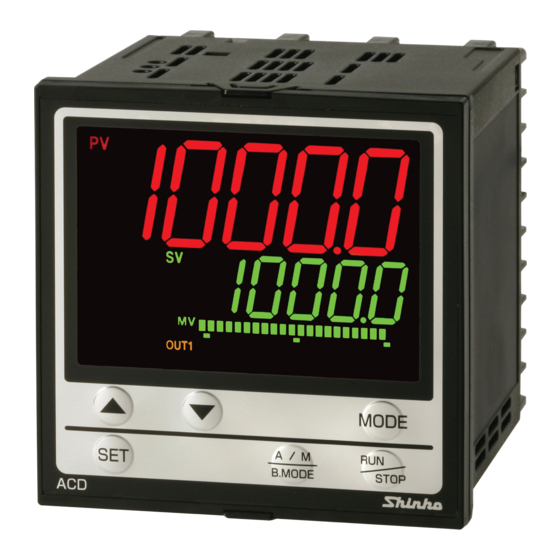

Shinko ACD-13A Communication Instruction Manual
Hide thumbs Also See for ACD-13A:

Advertisement

Quick Links

COMMUNICATION INSTRUCTION MANUAL
This manual contains instructions for communication functions of the ACD-13A, ACR-13A, ACD-15A and ACR-15A.
Serial communication and Console communication cannot be used together.
When performing Serial communication, remove the exclusive cable (CMB) from the USB port of the PC and
console connector of the ACD/R-13A, ACD/R-15A.
When performing Console communication, it is not required to remove the Serial communication cables.
However, do not send a command from the master side.

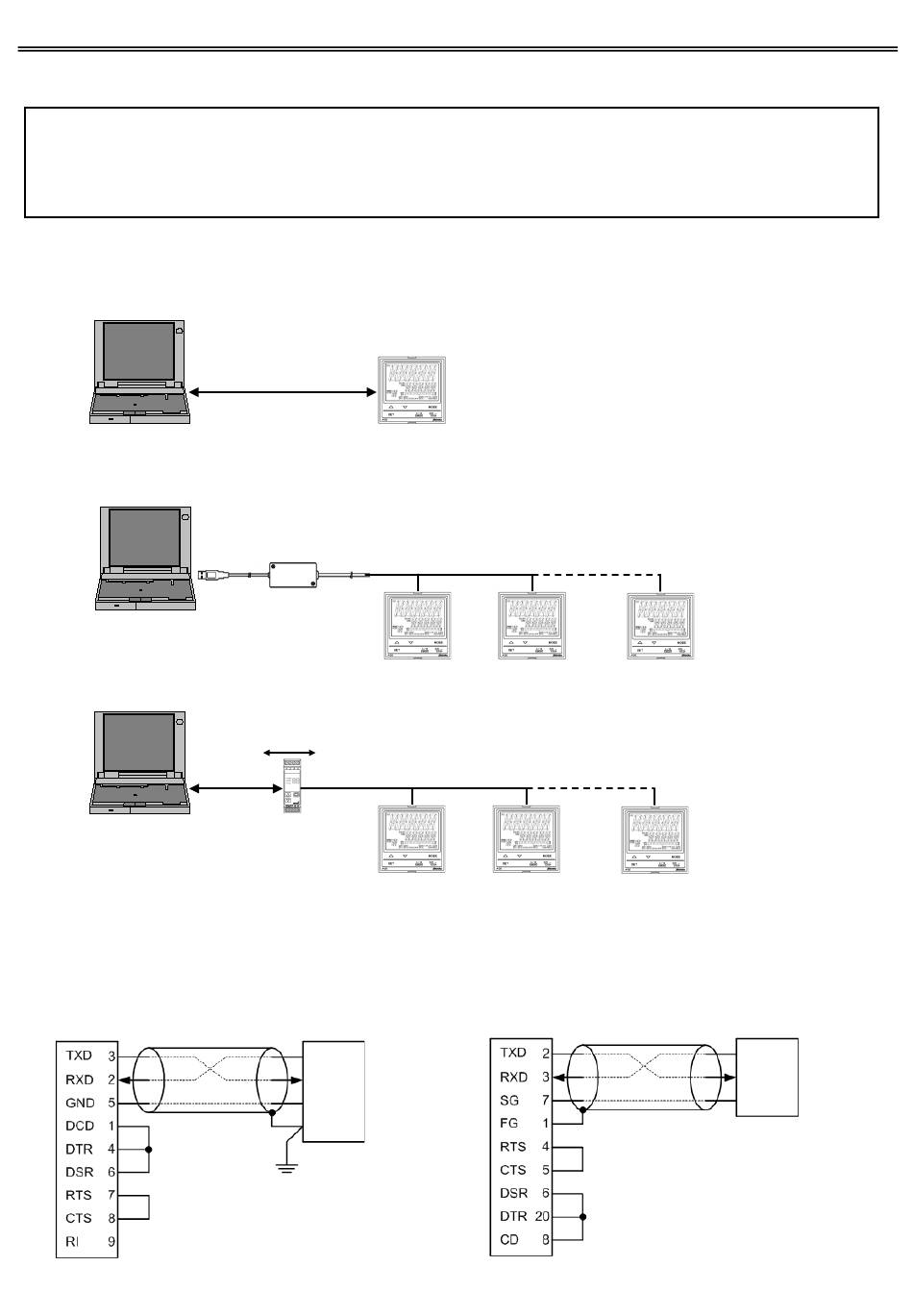

1. System Configuration
1.1 RS-232C (C option)
Host computer
1.2 RS-485 Multi-Drop Connection Communication (C5 option)
Host computer
Host computer
2. Wiring
2.1 RS-232C (C option)
• D-sub 9-pin connector
Host computer
Shield wire
ACD-13A, ACR-13A
ACD-15A, ACR-15A
RS-232C
(Fig. 1.1-1)
USB communication cable
CMC-001-1 (sold separately)
(Fig. 1.2-1)
Communication converter
IF-400
(Sold separately)
RS-485
RS-232C
(Fig. 1.2-2)
ACD-13A, ACR-13A
ACD-15A, ACR-15A
13 TX
14 RX
15 SG
1 GND
FG
(Fig. 2.1-1)
ACD/R-13A, ACD/R-15A (C, C5)
ACD-13A, ACR-13A
ACD-15A, ACR-15A
No. 0
No. 1
ACD-13A, ACR-13A
ACD-15A, ACR-15A
No. 0
No. 1
• D-sub 25-pin connector
Host computer
1
No. ACDR1CE8 2020.03
No. 30
No. 30
ACD-13A, ACR-13A
ACD-15A, ACR-15A
13 TX
14 RX
15 SG
Shield wire
(Fig. 2.1-2)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACD-13A and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinko ACD-13A

  • Page 1 COMMUNICATION INSTRUCTION MANUAL No. ACDR1CE8 2020.03 This manual contains instructions for communication functions of the ACD-13A, ACR-13A, ACD-15A and ACR-15A. Serial communication and Console communication cannot be used together. When performing Serial communication, remove the exclusive cable (CMB) from the USB port of the PC and console connector of the ACD/R-13A, ACD/R-15A.
  • Page 2 2.2 RS-485 (C5 option) • When using USB communication cable CMC-001-1 (sold separately) ACD-13A, ACR-13A USB communication cable ACD-15A, ACR-15A CMC-001-1 (sold separately) YA(-) 13 YA(-) YB(+) 14 YB(+) 15 COM 1 GND Host computer USB port Shield wire 13 YA(-)
  • Page 3 • Selects the stop bit. • SVTC bias • By connecting to Shinko programmable controllers PCA1 or PCB1 (select ‘SV digital transmission’ in [Communication protocol]), the step SV can be received from programmable controllers. See Section ‘8. SV Digital Transmission’. (pp.22, 23) •...
  • Page 4 Command • Broadcast address (MODBUS protocol) is set. • Communication error (framing error, parity error) No response • Checksum error (Shinko protocol), LRC discrepancy (MODBUS (Fig.4-1) ASCII mode), CRC-16 discrepancy (MODBUS RTU mode) Communication timing of the RS-485 Master side (Take note while programming)
  • Page 5 (3) Response with data Header Command Data Delimiter Address address Data Checksum (06H) type (20H) item (03H) (20H) (4) Acknowledgement Header Delimiter Address Checksum (06H) (03H) (5) Negative acknowledgement Header Error Delimiter Address Checksum (15H) code (03H) Header: Control code to represent the beginning of the command or the response. ASCII is used.
  • Page 6 Checksum calculation example SV: 600 (0258H) Address (instrument number): 0 (20H) Checksum calculation range [e.g.] [Characters above are represented in ASCII.] 45H 30H [Hexadecimal] [Binary] Checksum 0010 0000 0010 0000 0101 0000 0011 0000 [1's complement] 1101 1111 0011 0000 0011 0000 [2's complement] 1110 0000...
  • Page 7 6. MODBUS Protocol 6.1 Transmission Mode There are 2 transmission modes (ASCII and RTU) in MODBUS protocol. 6.1.1 ASCII Mode Hexadecimal (0 to 9, A to F), which is divided into high order (4-bit) and low order (4-bit) out of 8-bit binary data in command is transmitted as ASCII characters. Data format Start bit: 1 bit Data bit: 7 bits (8 bits) (Selectable)
  • Page 8 3 (03H) Illegal data value (Value out of the setting range) 17 (11H) Shinko protocol error code 4 [Status unable to be set, (e.g.) AT is performing] 18 (12H) Shinko protocol error code 5 (During setting mode by keypad operation) (3) Data Data differs depending on the function code.
  • Page 9 6.4 Message Example 6.4.1 ASCII Mode Numerals written below the message represent the number of characters. (1) Reading (Slave address 1, PV) • A request message from the master Amount of data means how many data items are to be read. It is fixed as 1 (30H 30H 30H 31H). Header Slave Function...
  • Page 10 6.4.2 RTU Mode Numerals written below the message represent the number of characters. (1) Reading (Slave address 1, PV) • A request message from the master Amount of data means the data item to be read, and it is fixed as 1 (0001H). Slave Function Data item...
  • Page 11 • MODBUS protocol uses Holding Register addresses. The Holding Register addresses are created as follows. A Shinko command Data item is converted to decimal number, and the offset of 40001 is added. The result is the Holding Register address.
  • Page 12 Shinko MODBUS Data Item Data Command Function Type Code 20H/50H 03H/06H 0001H SV [Set value memory number 1 (SM1)] Set value (Decimal point ignored.) 20H/50H 03H/06H 0002H EVT1 alarm value (SM1) Set value (Decimal point ignored.) 20H/50H 03H/06H 0003H EVT1 high limit alarm value (SM1) Set value (Decimal point ignored.)
  • Page 13 Shinko MODBUS Data Item Data Command Function Type Code 000FH: Pt100 -100.0 to 100.0 0010H:JPt100 -100.0 to 500.0 0011H: K -328 to 2498 0012H: K -328.0 to 752.0 0013H: J -328 to 1832 0014H: R 32 to 3200 0015H: S 32 to 3200...
  • Page 14 Shinko MODBUS Data Item Data Command Function Type Code 20H/50H 03H/06H 0045H OUT2 cooling method [13A] 0000H: Air cooling 0001H: Oil cooling 0002H: Water cooling 20H/50H 03H/06H 0046H OUT2 high limit [13A] Set value 20H/50H 03H/06H 0047H OUT2 low limit [13A]...
  • Page 15 Shinko MODBUS Data Item Data Command Function Type Code 20H/50H 03H/06H 0061H Event output EVT2 allocation Same as those of Event output EVT1 allocation [13A] 20H/50H 03H/06H 0062H Event output EVT3 allocation Same as those of Event output EVT1 allocation...
  • Page 16 Shinko MODBUS Data Item Data Command Function Type Code 20H/50H 03H/06H 0090H Fixed value control/Program control 0000H: Fixed value control 0001H: Program control 20H/50H 03H/06H 0091H Step time unit 0000H: Hours:Minutes 0001H: Minutes:Seconds 0000H: Stops (in standby) after power is...
  • Page 17 Shinko MODBUS Command Function Data Item Data Type Code 0000H: Green 20H/50H 03H/06H 00C6H PV color 0001H: Red 0002H: Orange 0003H: EVT1 to EVT5 ON: Green 0004H: EVT1 to EVT5 ON: Orange 0005H: PV continuous change 0006H: PV continuous change +...
  • Page 18 Shinko MODBUS Command Function Data Item Data Type Code 0A06H Status flag 1 0000 0000 0000 0000 : OUT1 0: OFF, 1: ON [13A] (Direct current output type: Not fixed) Open output 0: OFF, 1: ON [15A] : OUT2 0: OFF, 1: ON [13A]...
  • Page 19 Shinko MODBUS Command Function Data Item Data Type Code 0A08H CT1 current value [13A] Decimal point ignored 0A09H CT2 current value [13A] Decimal point ignored Returns “0.0 to 100.0%” as a Fully Closed/Fully 0A0AH Degree of valve opening [15A] Open position of FBP. (FBP No: Not fixed)
  • Page 20 PID zone command Shinko MODBUS Command Function Data Item Data Type Code 20H/50H 03H/06H 2010H PID zone value 1 (Zone 1) Set value (Decimal point ignored.) 20H/50H 03H/06H 2011H OUT1 proportional band (Zone 1) [13A] Set value (Decimal point ignored.)
  • Page 21 When acknowledgement is returned: Consider it as settings completed, and read all set values. When Error code 5 (35H, Shinko protocol) or Exception code 18 (12H, MODBUS protocol) is returned as a negative acknowledgement: Consider it as still in setting mode, and read the requisite minimum pieces of data such as PV (0A00H),...
  • Page 22 Models with compatible QR/QW communication commands (MC protocol 1C Format 4). 8. SV Digital Transmission By connecting to Shinko programmable controllers PCA1 or PCB1 (select ‘SV digital transmission’ in [Communication protocol]), the Step SV can be received from programmable controllers.
  • Page 23 7, 8/Even, Odd, No parity (Selectable by keypad) (Factory default: 7/Even) Stop bit 1, 2 (Selectable by keypad) (Factory default: 1) Communication Shinko protocol / MODBUS ASCII / MODBUS RTU (Selectable by keypad) protocol (Factory default: Shinko protocol) Communication Shinko...
  • Page 24 The controller is in front keypad operation Return the controller to RUN mode. setting mode. For all other malfunctions, please contact our main office or dealers. SHINKO TECHNOS CO., LTD. OVERSEAS DIVISION Head Office 2-5-1, Senbahigashi, Minoo, Osaka, Japan http://www.shinko-technos.co.jp/e/...
