Shinko WIL-101-ORP Instruction Manual

Plug-in type, digital indicating orp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Plug-in Type
Digital Indicating ORP Meter
WIL-101-ORP
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIL-101-ORP and is the answer not in the manual?

Questions and answers

Related Manuals for Shinko WIL-101-ORP

Summary of Contents for Shinko WIL-101-ORP

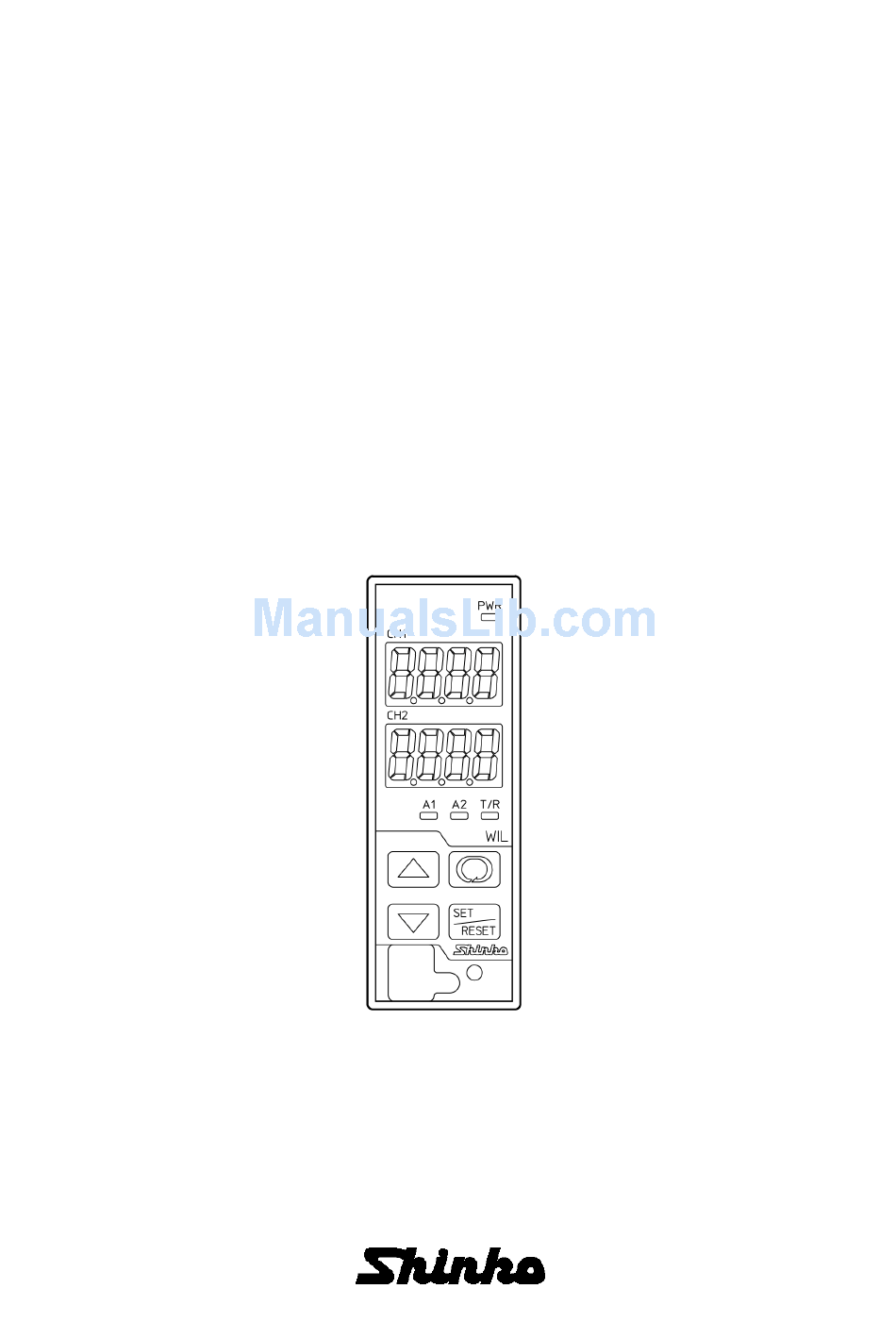

  • Page 1 Plug-in Type Digital Indicating ORP Meter WIL-101-ORP Instruction Manual...
  • Page 2 • Any unauthorized transfer or copying of this document, in part or in whole, is prohibited. • Shinko Technos Co., Ltd. is not liable for any damage or secondary damage(s) incurred as a result of using this product, including any indirect damage.

  • Page 3: Safety Precautions

    • If the WIL-101-ORP is installed within a control panel, the ambient temperature of the unit – not the ambient temperature of the control panel – must be kept to under 50 . Otherwise the life of electronic parts (especially electrolytic capacitors) of the unit will be shortened.

  • Page 4: Wiring Precautions

    • Do not leave wire remnants in the instrument, as they could cause a fire or a malfunction. • Use a solderless terminal with an insulation sleeve in which the M3 screw fits when wiring the WIL-101-ORP. • Tighten the terminal screw using the specified torque. If excessive force is applied to the screw when tightening, the terminal screw may be damaged.

  • Page 5: Table Of Contents

    6.2 Setting Groups --------------------------------------------------------------------- 16 7. Key Operation Flowchart --------------------------------------------------------- 18 8. Setup 8.1 Turn the Power Supply to the WIL-101-ORP ON ------------------------- 20 8.2 ORP Input Function Group ----------------------------------------------------- 20 8.3 Output Function Group ---------------------------------------------------------- 21 8.4 Special Function Group --------------------------------------------------------- 26 9.
  • Page 6 11.6 Communication Command Table 11.6.1 Notes about Setting/Reading Command --------------------------- 47 11.6.2 Setting/Reading Command -------------------------------------------- 47 11.6.3 Read Only Command --------------------------------------------------- 51 11.7 ORP Calibration and Transmission Output Adjustment via Communication Command --------------------------------------------- 52 11.7.1 Adjustment Mode --------------------------------------------------------- 52 11.7.2 Span Sensitivity Correction Mode ----------------------------------- 52 11.7.3 Transmission Output Adjustment ------------------------------------ 53 11.8 Notes on Programming Monitoring Software 11.8.1 How to Speed up the Scan Time ------------------------------------- 54...

  • Page 7: Model

    1. Model 1.1 Model W I L - 1 0 -ORP Input Points 1 point Input ORP Combined Electrode Sensor 100 to 240 V AC (standard) Supply Voltage 24 V AC/DC (*1) output (A11, A12, A21, A22) Option Transmission output (*2) (*1) Supply voltage 100 to 240 V AC is standard.

  • Page 8: Names And Functions Of Sections

    2. Names and Functions of Sections Power Indicator Unit label ORP Display Unit label Setting Display T/R Indicator A1 Indicator A2 Indicator UP key MODE key DOWN key SET/RESET key Light Sensor (Fig. 2-1) Displays ORP Display: ORP value or characters in setting mode are indicated in red. Setting Display: Values in setting mode are indicated in red.

  • Page 9: Mounting To The Control Panel

    (32 to 122 ) (No icing), Humidity: 35 to 85 %RH (Non-condensing) If the WIL-101-ORP is installed within a control panel, the ambient temperature of the unit – not the ambient temperature of the control panel – must be kept to under 50 . Otherwise the life of electronic parts (especially electrolytic capacitors) of the unit will be shortened.
  • Page 10 Caution Before inserting the WIL-101-ORP into the socket, wire the unit while referring to Section “5. Wiring” (p.12). (2) Check that the Lock Release has been lowered. Lock Release (Fig. 3.3-2) (3) Insert the WIL-101-ORP into the socket. When inserting, be careful about the position of pins and slots.

  • Page 11: Removal

    4. Removal (1) Turn the power supply to the unit OFF. (2) Pull the Lock Release down, and release the WIL-101-ORP from the socket. Check that the WIL-101-ORP and the socket are unlocked by pulling the Lock Release down. Lock Release (Fig.

  • Page 12: Wiring

    5. Wiring Warning Turn the power supply to the instrument off before wiring or checking. Working on or touching the terminal with the power switched on may result in severe injury or death due to electrical shock. Caution • Do not leave wire remnants in the instrument, as they could cause a fire or a malfunction. •...

  • Page 13: Lead Wire Solderless Terminal

    (When the EVT option is ordered) TRANSMIT OUTPUT: Transmission output terminals ( (When the TA option is ordered) POWER SUPPLY: Power terminals ( 24 V AC/DC (Enter 1 after the input code.) RS-485: Serial Communication modular jack Modular Jack Pin (WIL-101-ORP side arrangement) (Fig. 5.2-1)

  • Page 14: Wire The Communication Line

    5.3 Wire the Communication Line Connect to the modular jack at the bottom of the instrument, using CDD or CPP (sold separately). • Wiring Example Using a USB Communication cable CMC-001-3 (sold-separately) WIL-101-ORP (Max 31 units) Host computer CDD or CPP (sold-separately)
  • Page 15 The terminator is mounted at the end of the wire when connecting a personal computer with multiple peripheral devices. The terminator prevents signal reflection and disturbance. Do not connect a terminator with the communication line because each WIL-101-ORP has built-in pull-up and pull-down resistors instead of a terminator.

  • Page 16: Outline Of Key Operation And Setting Groups

    6. Outline of Key Operation and Setting Groups 6.1 Outline of Key Operation Setting items are divided into groups, and group selection has to be made with keypads. Press the key in ORP Display Mode or Cleansing Output Mode. The unit enters Group Selection Mode.
  • Page 17 (*3) The unit cannot enter Adjustment Mode or Span Sensitivity Correction Mode in the following cases: • When (Lock 1)， ( Lock 2) or (Lock 3) is selected in [Set value lock (p.26)] in the Special Function Group • When (Cleansing output) is selected in any of [A11, A12, A21, A22 type (pp.21, 22)] in the Output Function Group, and cleansing action is performing using the ‘Cleansing time’...

  • Page 18: Key Operation Flowchart

    7. Key Operation Flowchart Abbreviation: Adjust.: Adjustment Power ON ORP Display Mode or (3sec) Manual Cleansing (*1) (*1) Cleansing Output Mode mode In ORP Display Mode or Cleansing Output Mode, measurement starts, indicating ORP (3sec) Adjustment (*2) in the ORP Display and an item selected mode in [Setting Display indication (p.27)] of Special function group in the Setting Display.
  • Page 19 ● About Setting Items Moving average • Upper left: ORP Display: Indicates the setting item characters. data amount • Lower left: Setting Display: Indicates the factory default. • Right side: Indicates the setting item. Transmission output Setting item in shaded section will be indicated only when the corresponding option is ordered. high limit A2 related items cannot be used if TA option is ordered.

  • Page 20: Setup

    Setup can be conducted in the ORP Input Function Group, Output Function Group and Special Function Group. If the user’s specification is the same as the factory default of the WIL-101-ORP, or if setup has already been completed, it is not necessary to set up the instrument. Proceed to Section “9. Calibration (p.33)”.

  • Page 21: Output Function Group

    8.3 Output Function Group To enter the Output Function Group, follow the procedure below. Press the key twice in ORP Display Mode or Cleansing Output Mode. Press the key. The unit enters the Output Function Group, and ’A11 type‘ appears. Setting Item, Function, Setting Range Factory Default Character...
  • Page 22 Setting Item, Function, Setting Range Factory Default Character A22 type No action • Selects an A22 type. Note: If A22 type is changed, A22 value defaults to 0. • : No action : ORP input low limit action : ORP input high limit action : Cleansing output •...
  • Page 23 Setting Item, Function, Setting Range Factory Default Character A12 hysteresis type Reference Value • Selects A12 output hysteresis type (Medium or Reference Value). See (Fig. 8.3-1, p.21). • Not available if (No action) or (Cleansing output) is selected in [A12 type].
  • Page 24 Setting Item, Function, Setting Range Factory Default Character A22 hysteresis type Reference Value • Selects A22 output hysteresis type (Medium or Reference Value). See (Fig. 8.3-1, p.21). • Not available if (No action) or (Cleansing output) is selected in [A22 type].
  • Page 25 Setting Item, Function, Setting Range Factory Default Character A11 OFF delay time 0 sec. • Sets A11 OFF delay time. The A11 output does not turn OFF (under the conditions of turning OFF) until the time set in [A11 OFF delay time] elapses. •...

  • Page 26: Special Function Group

    IC memory.) Communication protocol Shinko protocol • Selects communication protocol. • : Shinko protocol : Modbus ASCII mode : Modbus RTU mode Instrument number • Sets the instrument number. (The instrument numbers should be set one by one when multiple instruments are connected.)
  • Page 27 Character Setting Item, Function, Setting Range Factory Default Transmission output high limit 1999 mV • Sets the Transmission output high limit value. (This value correponds to 20 mA DC output.) If Transmission output high limit and low limit are set to the same value, the transmission output will be fixed at 4 mA DC.
  • Page 28 Character Setting Item, Function, Setting Range Factory Default A1 output allocation A11 type • Selects A1 output allocation. For A1 output, A11 type, A12 type, A21 type and/or A22 type are allocated. Output is OR output. However, if (Cleansing output) is selected in any of [A11, A12, A21, A22 type (pp.21, 22)], the Cleansing output will be given priority.
  • Page 29 Character Setting Item, Function, Setting Range Factory Default Output ON time when A1 output ON 0 sec. • Sets Output ON time when A1 output is ON. If ON time and OFF time are set, A1 output can be turned ON/OFF in a configured cycle when A1 output is ON.
  • Page 30 Character Setting Item, Function, Setting Range Factory Default A2 ORP input error alarm A type No action • Selects A type in order to assess A2 ORP input error alarm. • Not available if Transmission output (TA option) is ordered. •...
  • Page 31 Character Setting Item, Function, Setting Range Factory Default A2 ORP input error alarm span 0 mV when A output OFF • Sets span to assess A2 ORP input error alarm when A output (selected in [A2 ORP input error alarm A type]) is OFF.
  • Page 32 • Cleansing Output Action Cleansing Cleansing Cleansing Programmed Programmed Programmed action action action Cno: Number of cleansing cycles Cint: Cleansing interval Ctm: Cleansing time Rtm: Restore time after cleansing (Fig. 8.4-2)

  • Page 33: Calibration

    When using a brand-new sensor, please calibrate in Adjustment Mode. By setting the adjustment value, calibrates ORP value indicated on the WIL-101-ORP to read 260 mV (at 20 ) when immersing the ORP Combined Electrode Sensor in the standard solution (Quinhydrone potential difference 260 mV).

  • Page 34: Span Sensitivity Correction Mode

    When calibrating periodically, please calibrate in Span Sensitivity Correction Mode. By setting the Span sensitivity correction value in percentage, calibrates ORP value indicated on the WIL-101-ORP to read 260 mV (at 20 ) when immersing the ORP Combined Electrode Sensor in the standard solution (Quinhydrone potential difference 260 mV).

  • Page 35: Transmission Output Adjustment Mode

    9.3 Transmission Output Adjustment Mode Fine adjustment of Transmission output is performed. This ORP meter is adjusted at the factory, however, differences may occur between the indication value of the connected equipment (recorders, etc.) and output value of this unit. In this case, perform Transmission output Zero adjustment and Span adjustment.

  • Page 36: Measurement

    10. Measurement 10.1 Starting Measurement After mounting to the control panel, and wiring, setup and calibration are complete, turn the power to the instrument ON. For approx. 4 seconds after the power is switched ON, characters are indicated in the ORP Display. During this time, all outputs are in OFF status, and action indicators except the Power Indicator go off.

  • Page 37: Cleansing Output

    10.4 Cleansing Output (Cleansing output) is selected in any one of [A11, A12, A21, A22 type (pp.21, 22)], the unit will enter Cleansing Output mode. An A output (for which the cleansing output is selected) will turn ON during the configured cleansing time.

  • Page 38: Manual Cleansing Mode

    10.5 Manual Cleansing Mode By pressing the keys simultaneously for 3 seconds, the unit enters Manual Cleansing Mode. In Manual Cleansing Mode, cleansing action is performed using the ‘Cleansing Time’ and ‘Restore Time after Cleansing’ settings. After cleansing is completed, the unit automatically reverts to Cleansing Output Mode. During cleansing action, manual cleansing via key operation is invalidated, so the unit cannot move to Manual Cleansing Mode.

  • Page 39: Communication

    Factory Default Communication protocol Shinko protocol • Selects communication protocol. • : Shinko protocol : Modbus ASCII mode : Modbus RTU mode Instrument number • Sets the instrument number. The instrument numbers should be set one by one when multiple instruments are connected in Serial communication, otherwise communication is impossible.

  • Page 40: Communication Procedure

    The unit reverts to ORP Display Mode or Cleansing Output Mode. 11.3 Communication Procedure Communication starts with command transmission from the host computer (hereafter Master) and ends with the response of the WIL-101-ORP (hereafter Slave). • Response with Data Master Slave...

  • Page 41: Shinko Protocol

    11.4 Shinko Protocol 11.4.1 Transmission Mode Shinko protocol is composed of ASCII. Hexadecimal (0 to 9, A to F), which is divided into high order (4-bit) and low order (4-bit) out of 8-bit binary data in command is transmitted as ASCII characters.

  • Page 42: Checksum Calculation

    Command Type: Code to discern Setting command (50H) and Reading command (20H) Data Item: Classification of the command object. Composed of 4-digit hexadecimal numbers, using ASCII. [Refer to “11.6. Communication Command Table”. (pp. 47 to 51)] Data: The contents of data (set value) differ depending on the setting command. Composed of 4-digit hexadecimal numbers, using ASCII.

  • Page 43: Modbus Protocol

    To transmit continuously, an interval between characters which consist of one message, must be within 3.5 character transmission times. If an interval lasts longer than 3.5 character transmission times, WIL-101-ORP assumes that transmission from the master is finished, which results in a communication error, and will not return a response.
  • Page 44 Illegal data address (Non-existent data address) 3 (03H) Illegal data value (Value out of the setting range) Shinko protocol error code 4 [Status unable to be set (e.g.) During 17 (11H) Adjustment Mode, Span Sensitivity Correction Mode or Transmission output adjustment, etc.]...

  • Page 45: Message Example

    When a carry is generated as a result of the shift, XOR is calculated by X of and the fixed value (A001H). This is assumed as X. If a carry is not generated, go to step Repeat steps until shifting 8 times. XOR is calculated with the next data and X.
  • Page 46 RTU Mode Numerals written below the command represent the number of characters. Reading [Slave address 1, Data item 0080H (ORP value)] • A request message from the master Amount of data means how many data items are to be read. It is fixed as (0001H). Function Data Item Amount of...

  • Page 47: Communication Command Table

    Effective range of data is -32768 to 32767 (8000H to 7FFFH). • Modbus protocol uses Holding Register addresses. The Holding Register addresses are created as follows. A Shinko command data item is converted to decimal number, and the offset of 40001 is added. The result is the Holding Register address.
  • Page 48 Shinko Modbus Command Function Data Item Data Type Code 50H/20H 06H/03H 0005H A11 ON side Set value 50H/20H 06H/03H 0006H A11 ON delay time Set value 50H/20H 06H/03H 0007H A11 OFF delay time Set value 50H/20H 06H/03H 0008H Moving average data amount Set value...
  • Page 49 Shinko Modbus Command Function Data Item Data Type Code 50H/20H 06H/03H 0057H A21 ON side Set value 50H/20H 06H/03H 0058H A22 ON side Set value 50H/20H 06H/03H 0059H A12 ON delay time Set value 50H/20H 06H/03H 005AH A21 ON delay time...
  • Page 50 Shinko Modbus Command Function Data Item Data Type Code A1 ORP input error alarm 0000H: No action 50H/20H 06H/03H 0111H type 0001H: A11 type 0002H: A12 type 0003H: A21 type 0004H: A22 type 50H / 20H 06H / 03H 0112H...

  • Page 51: Read Only Command

    11.6.3 Read Only Command Shinko Modbus Command Function Data Item Data Type Code 0080H ORP value ORP value 0081H Status flag 1 0000 0000 0000 0000 to 2 digit: Not used (Always 0) digit: ORP value has exceeded 1999 mV...

  • Page 52: Orp Calibration And Transmission Output Adjustment Via Communication Command

    When calibrating periodically, please calibrate in Span Sensitivity Correction Mode. By setting the Span sensitivity correction value in percentage, calibrates ORP value indicated on the WIL-101-ORP to read 260 mV (at 20 ) when immersing the ORP Combined Electrode Sensor in the standard solution (Quinhydrone potential difference 260 mV).

  • Page 53: Transmission Output Adjustment

    Set the span sensitivity correction value at Data item 0047H (Span sensitivity correction value) so that ORP value is 260 mV (at 20 ). For other temperature and electrical potentials, refer to the temperature characteristics of your standard solution. If 2 digit is read at Data item 0081H (Status flag 1), 1 (Span Sensitivity Correction Mode) will be returned.

  • Page 54: Notes On Programming Monitoring Software

    11.8 Notes on Programming Monitoring Software 11.8.1 How to Speed up the Scan Time When monitoring multiple units of the WIL-101-ORP, set the program so that the requisite minimum pieces of data such as Data item 0080H (ORP value), Data item 0081H (Status flag 1), Data item 0091H (Status flag 2) can be read.

  • Page 55: Specifications

    By setting the span sensitivity correction value in percentage, calibrates Correction ORP value displayed on the WIL-101-ORP to read 260 mV (at 20 ) when immersing the ORP Combined Electrode Sensor in the standard solution (Quinhydrone potential difference 260 mV).
  • Page 56 Synchronization Start-stop synchronization method Code form ASCII, binary Communication Shinko protocol, Modbus ASCII, Modbus RTU (Selectable by keypad) protocol Data bit/Parity 8-bits/No parity, 7-bits/No parity, 8-bits/Even, 7-bits/Even, 8-bits/Odd, 7-bits/Odd (Selectable by keypad) Stop bit 1 bit, 2 bits (Selectable by keypad)
  • Page 57 Self-diagnosis The CPU is monitored by a watchdog timer, and if an abnormal status is found on the CPU, the WIL-101-ORP is switched to warm-up status. Warm-up Indication For approx. 4 seconds after the power is switched ON, is indicated in the ORP Display.

  • Page 58: Optional Specifications

    12.2 Optional Specifications Output (Option Code: EVT or TA) output If ORP value exceeds the A value, the A output will be turned ON for each A output type. Regardless of options being ordered, A output status can be read via the Status flag (A11, A12, A21, A22 output bit) in Serial communication.
  • Page 59 Transmission Output (Option Code: TA) Converting ORP value to analog signal every input sampling period, and Transmission output outputs the value in current. If Transmission output high limit and low limit are set to the same value, the transmission output will be fixed at 4 mA DC. Resolution 12000 Current...

  • Page 60: Troubleshooting

    There may be equipment that Keep WIL-101-ORP clear of any interferes with or makes noise potentially disruptive equipment. near the WIL-101-ORP. Setting Display is unlit. (No indication) is selected...

  • Page 61: Communication

    The WIL-101-ORP cannot be set Check the slave status. while in Adjustment Mode or Span Sensitivity Correction Mode. The WIL-101-ORP is in the front Return the unit to ORP Display keypad operation setting mode. Mode or Cleansing Output Mode.

  • Page 62: Character Tables

    14. Character Tables The following shows our character tables. Use data column for your reference. Setting Groups Character Setting Group ORP Input Function Group Output Function Group Special Function Group Adjustment Mode Character Setting Item, Setting Range Factory Default Data Adjustment value 0 mV -200 to 200 mV...
  • Page 63 Output Function Group Character Setting Item, Setting Range Factory Default Data A11 type No action : No action : ORP input low limit action : ORP input high limit action : Cleansing output A12 type No action Selection item: Same as those of A11 type A21 type No action Selection item: Same as those of A11 type...
  • Page 64 Character Setting Item, Setting Range Factory Default Data A12 ON delay time 0 sec. 0 to 9999 seconds A21 ON delay time 0 sec. 0 to 9999 seconds A22 ON delay time 0 sec. 0 to 9999 seconds A11 OFF delay time 0 sec.
  • Page 65 Set value lock Unlock : Unlock : Lock 1 : Lock 2 : Lock 3 Communication protocol Shinko protocol : Shinko protocol : Modbus ASCII mode : Modbus RTU mode Instrument number 0 to 95 Communication speed 9600 bps : 9600 bps...
  • Page 66 Character Setting Item, Setting Range Factory Default Data A1 output allocation A11 type : A11 type : A12 type : A21 type : A22 type : A11, A12 types : A21, A22 types : A11, A21 types : A12, A22 types : A11, A12, A21, A22 types A2 output allocation A21 type...
  • Page 67 Character Setting Item, Setting Range Factory Default Data A1 ORP input error alarm span 0 mV when A output OFF 0 to 1999 mV A1 ORP input error alarm time 0 sec. when A output OFF 0 to 9999 seconds or minutes A2 ORP input error alarm span 0 mV when A...
  • Page 68 For any inquiries about this unit, please contact our agency or the vendor where you purchased the unit after checking the following. [Example] • Model --------------------------- WIL-101-ORP • Serial number ----------------- No. 155F05000 In addition to the above, please let us know the details of the malfunction, or discrepancy, and the operating conditions.
