Tablicowe wskaźniki i mierniki temperatury JIR-301-M
COMMUNICATION INSTRUCTION MANUAL
To prevent accidents arising from the misuse of this indicator, please ensure the operator receives this manual.
Warning
Turn the power supply to the instrument off before wiring or checking.
Working on or touching the terminal with the power switched on may result in severe injury or
death due to electrical shock.

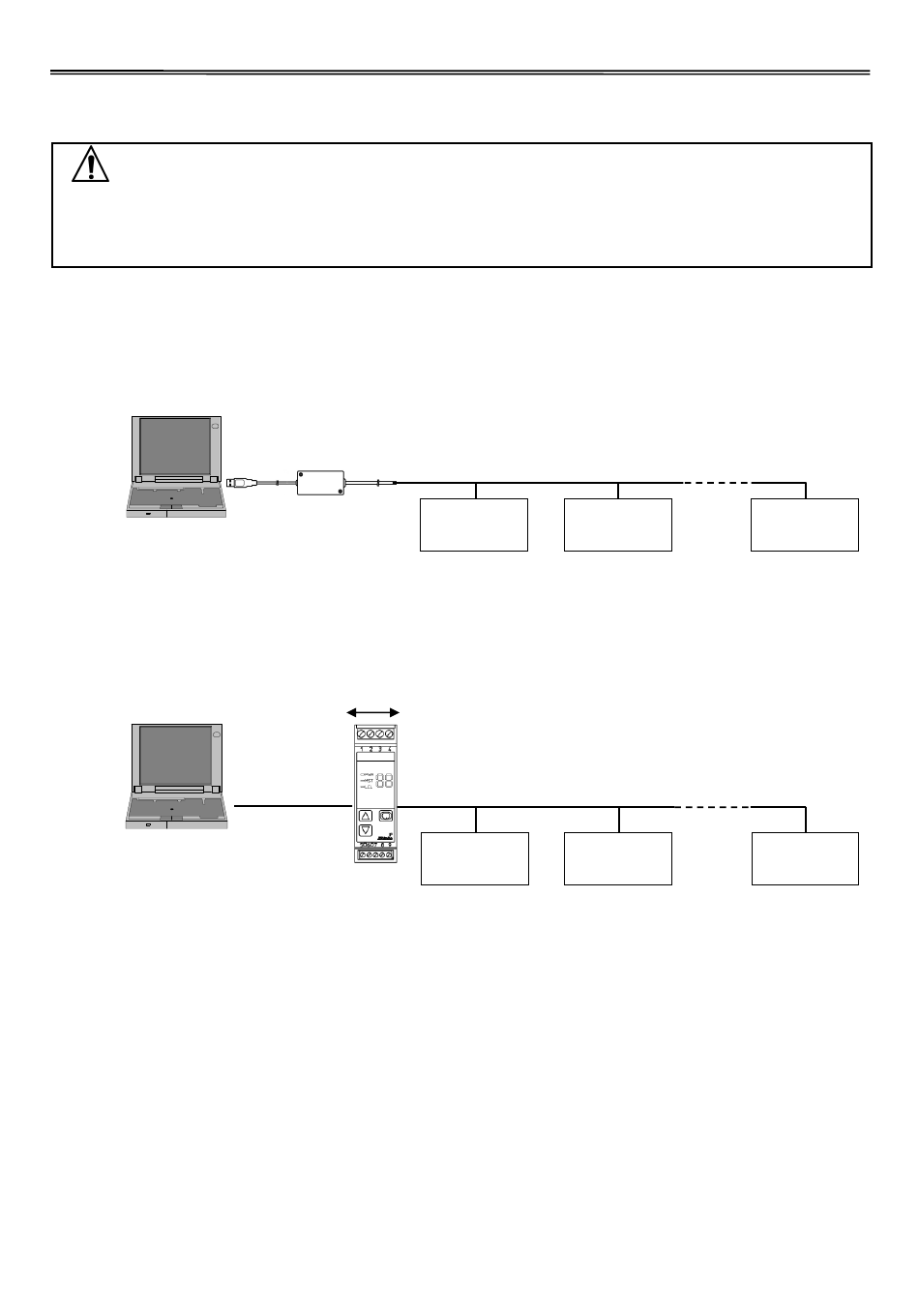

1. System Configuration

1.1 When Using USB Communication Cable CMC-001-1 (Sold Separately)
Host computer
1.2 When U
sing Communication Converter
Host computer
USB communication cable
CMC-001-1 (sold separately)
IF-400 (Sold Separately)
Communication converter
RS-232C
RS-485
JIR-301-M (Max 31 units)
JIR-301-M
JIR-301-M
No.0
(Fig. 1.1-1)
IF-400
JIR-301-M (Max 31 units)
JIR-301-M
JIR-301-M
No.0
(Fig. 1.2-1)
1
JIR-301-M (C5)
No.JIR32CE2 2017.09
JIR-301-M
No.1
JIR-301-M
No.1
No.30
No.30
