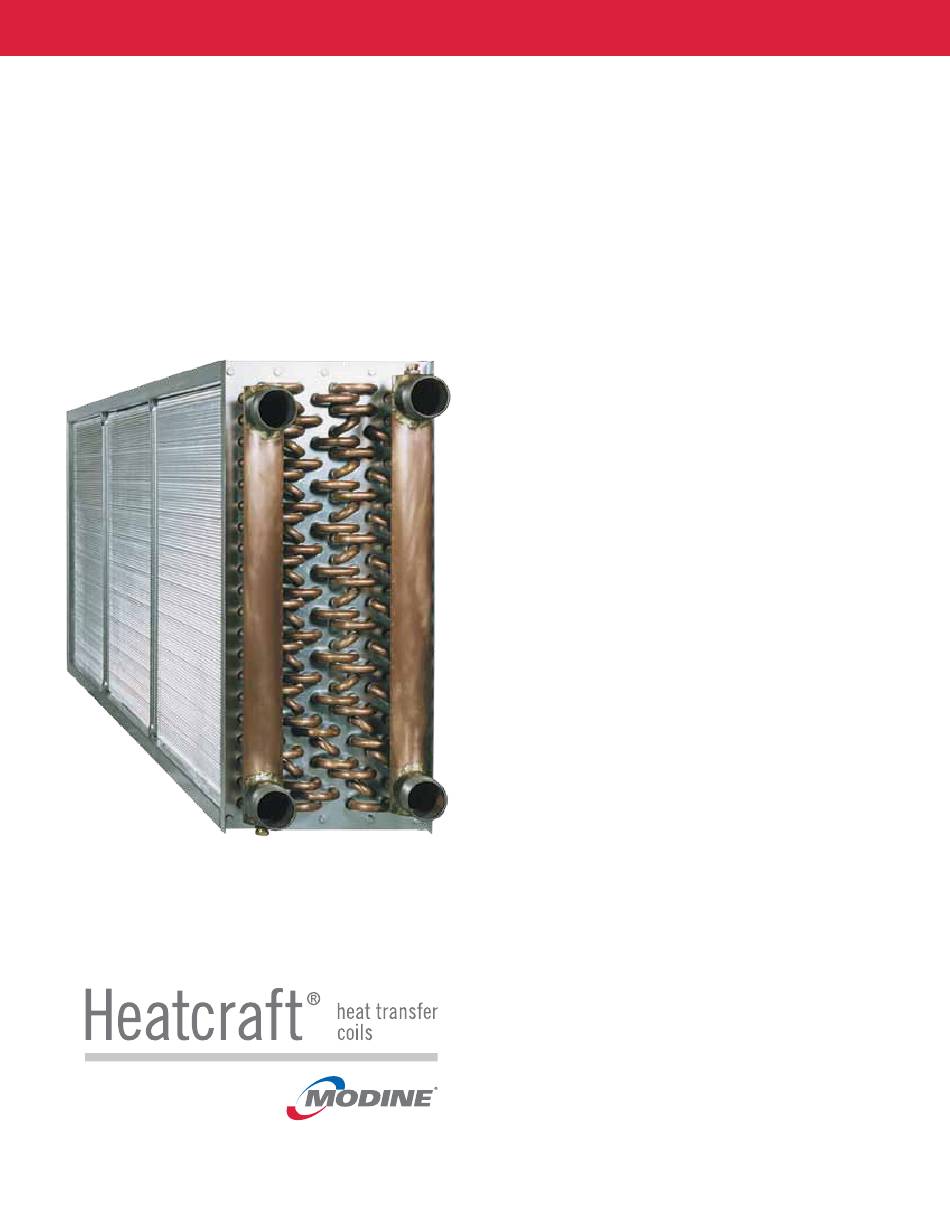

InstallatIon, operatIon and MaIntenance GuIde
Fluid Coil installation, operation
and MaintenanCe

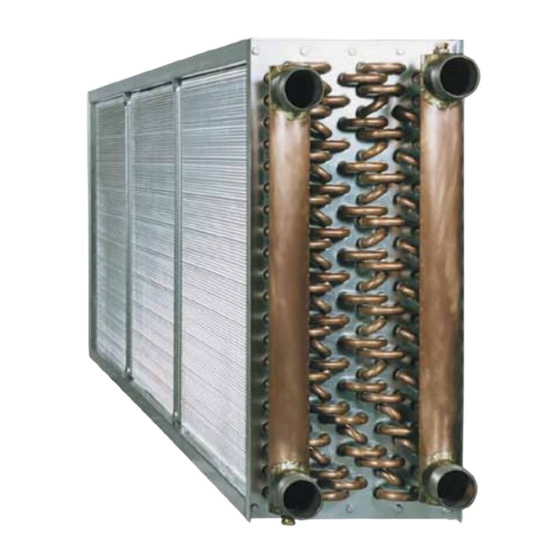

Guidelines for the installation, operation and maintenance
of the Heatcraft brand of fluid cooling and heating coils
manufactured by Modine in Grenada, MS have been pro-
vided to help insure proper performance of the coils and
their longevity. These are general guidelines that may have
to be tailored to meet the specific requirements of any one
job. As always, a qualified party or individual should per-
form the installation and maintenance of any coil. Protec-
tive equipment such as safety glasses, steel toe boots and
gloves are recommended during the installation and routine
maintenance of the coil.
receIVInG InstructIons
All Heatcraft coils are factory tested, inspected and carefully
packaged.
Damage to the coils can occur after they have left the factory.
Therefore, the coils should be inspected for shipping dam-
age upon receipt. The freight bill should also be checked
against items received for complete delivery. Damaged and/
or missing items should be noted on the carrier's freight bill
and signed by the driver.
For additional assistance, contact your local Modine coil
representative.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Modine Manufacturing Heatcraft 5WS1406C24.00
Summary of Contents for Modine Manufacturing Heatcraft 5WS1406C24.00
- Page 1 InstallatIon, operatIon and MaIntenance GuIde Fluid Coil installation, operation and MaintenanCe Guidelines for the installation, operation and maintenance of the Heatcraft brand of fluid cooling and heating coils manufactured by Modine in Grenada, MS have been pro- vided to help insure proper performance of the coils and their longevity.
-
Page 2: Nomenclature And Installation
noMenClature and installation noMenclature MountInG All water and glycol coils are designed to be fully drainable when properly mounted. Vertical air-flow is not recommended for dehu- 24.00 x 144.00 midifying coils. 5 = Tube Outside Diameter 3 = 0.375” Horizontal Air Flow Level with the 4 = 0.500”... -
Page 3: Installation
installation Continued Once installed, the coil should be pressurized to 100 psig InstallatIon with dry nitrogen or other suitable gas. The coil should be left Carefully remove the coil from the shipping package to avoid pressurized for a minimum of 10 minutes. If the coil holds damage to the finned surface area. -
Page 4: Operation And Maintenance
operation and MaintenanCe MaIntenance Figure 3. Mist eliminator Installation General Air flow Long bracket on top Coil Filters and mist eliminators should be inspected on a regular basis and changed as needed. Maintaining clean filters and mist eliminators is a cost effective way to help maintain maxi- mum coil performance and service life. - Page 5 MaintenanCe, Freeze proteCtion, Flushing Coils c. Pressure test coils per the installation instructions. % Propylene Freeze % Ethylene Freeze d. After the coil has been leak tested and found to be free Glycol by Volume point Glycol by Volume point from leaks, let it sit for 24 hours.
- Page 6 Modine Grenada LLC Tel: 800-225-4328 Fax: 662-229-4212 Grenada, MS Email: coils@modine.com...
