HyperX Alloy MKW100 Manual

Overview

Overview

What's Included

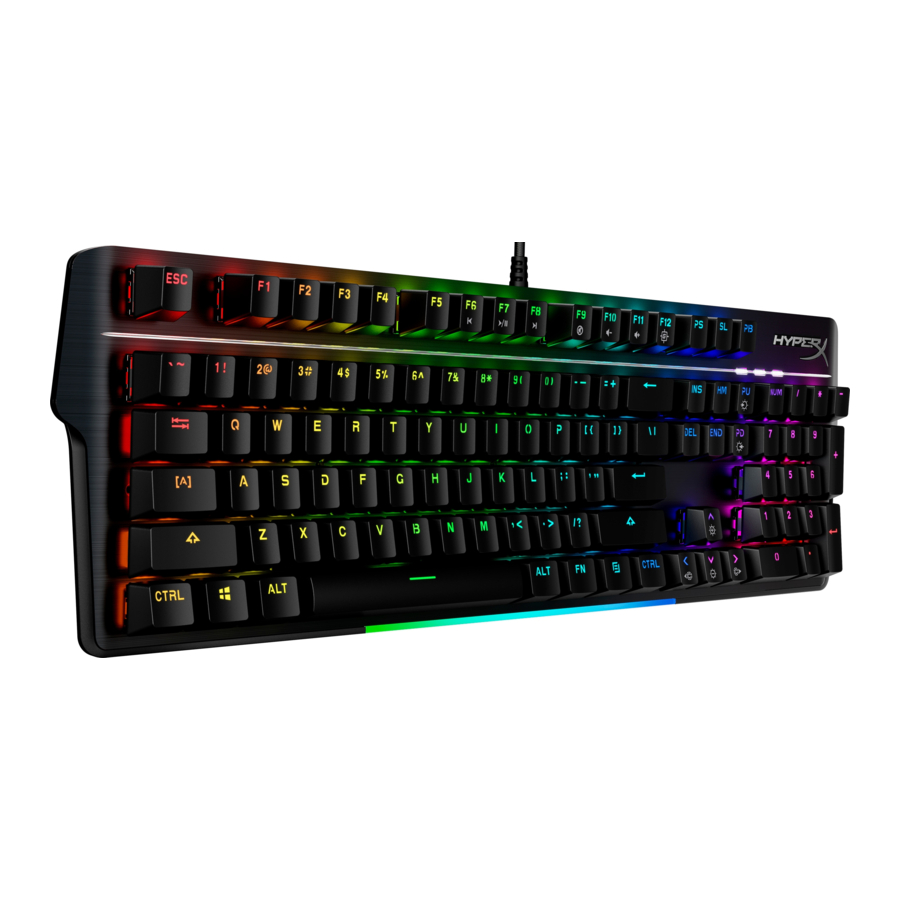

  • HyperX Alloy MKW100 Keyboard
  • Non-Detachable Braided USB-A cable
  • Detachable Wrist Rest

What’s Included

  1. Media control keys
  1. Volume control keys
  1. Game Mode key
  1. LED mode control keys
  1. Game Mode / Num Lock / Caps Lock indicators
  1. LED color control keys (Solid Lighting Effect only)
  1. LED brightness control keys
  1. LED light bar
  1. Detachable wrist rest

Installation

Installation
Connect the USB-A connector to the computer or game console

Function Keys

Press and a function key at the same time to activate its secondary feature as indicated on the keycap side-print.

Function Keys Secondary Feature
Skip back, Play/Pause, or Skip forward through your media.
Mute, Decrease, or Increase computer audio.
Enable Game Mode to disable the Windows key and prevent accidental interruption during gaming. The Game Mode indicator will illuminate when Game Mode is enabled.
Cycle between the 6 built-in Lighting Effects
RGB Wave <-> Stacking <-> Solid <->
Breathing <-> Color Cycle <-> Paint
Increase or decrease the LED backlight brightness. There are 5 levels of brightness.
Cycle between the 5 built-in LED colors. Only applies for Solid Lighting Effect
Red <-> Purple <-> Green <-> Yellow <-> Blue

HyperX NGENUITY Software

To customize Lighting, Game Mode and Macro Settings, download the HyperX NGENUITY Software at: hyperxgaming.com/ngenuity.

There are 6 Lighting Effects that are customizable within NGENUITY
RGB Wave, Stacking, Solid, Breathing, Color Cycle, Paint

All customization changes made within NGENUITY are automatically saved onto the keyboard's onboard memory. Settings are retained when moving the keyboard from one system to another. However, if another system has NGENUITY running with the keyboard attached, NGENUITY will overwrite the settings stored on the keyboard's onboard memory.

When NGENUITY is running, NGENUITY will take priority for keyboard customization control and function keys for Lighting Effects will not function.

When NGENUITY is not running, the keyboard's onboard memory will be used and function keys for Lighting Effects will function.

Factory Reset

Factory Reset
If you are experiencing any issues with the keyboard, you can perform a factory reset. Onboard memory will be cleared, and all settings will revert to factory default settings.

Press and hold FN + ESC for 5 seconds to perform a factory reset of the keyboard. The Game Mode / Num Lock / Caps Lock indicators will flash rapidly and return to normal once reset is complete.

Specifications

Keyboard Specifications

Switch TTC
Type Mechanical
Backlight Light Effects RGB (16,777,216 colors) Per-key RGB lighting * and 5 brightness levels
Onboard Memory 1 profile
Polling Rate 1000Hz
Anti-ghosting 100% anti-ghosting
Rollover N-key
Media Control Yes
Game Mode Yes
OS compatibility Windows® 10, 8.1, 8, 7
Console compatibility PS4, PS5, Xbox One, Xbox Series X|S

Switch Specifications

Switch TTC Red
Operation Style Linear
Operating Force 45g
Actuation Point 2.0 mm
Total Travel Distance 4.0 mm
Life Span (Keystrokes) 50 million

Keycap Specifications

Material PC + ABS

Physical Specifications

Width 471.74mm
Depth 194.62mm
Height 34.66mm
Weight (with cable) 995g
Cable Type Attached, Braided USB-A
Cable Length 1.8m

* Per-key RGB lighting customizable with HyperX NGENUITY software

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/
