HyperX Alloy Elite - Mechanical Gaming Keyboard Manual

What's included

• HyperX Alloy Elite Mechanical Gaming Keyboard
• 8x Gaming keycaps
• Keycaps puller
• Wrist rest

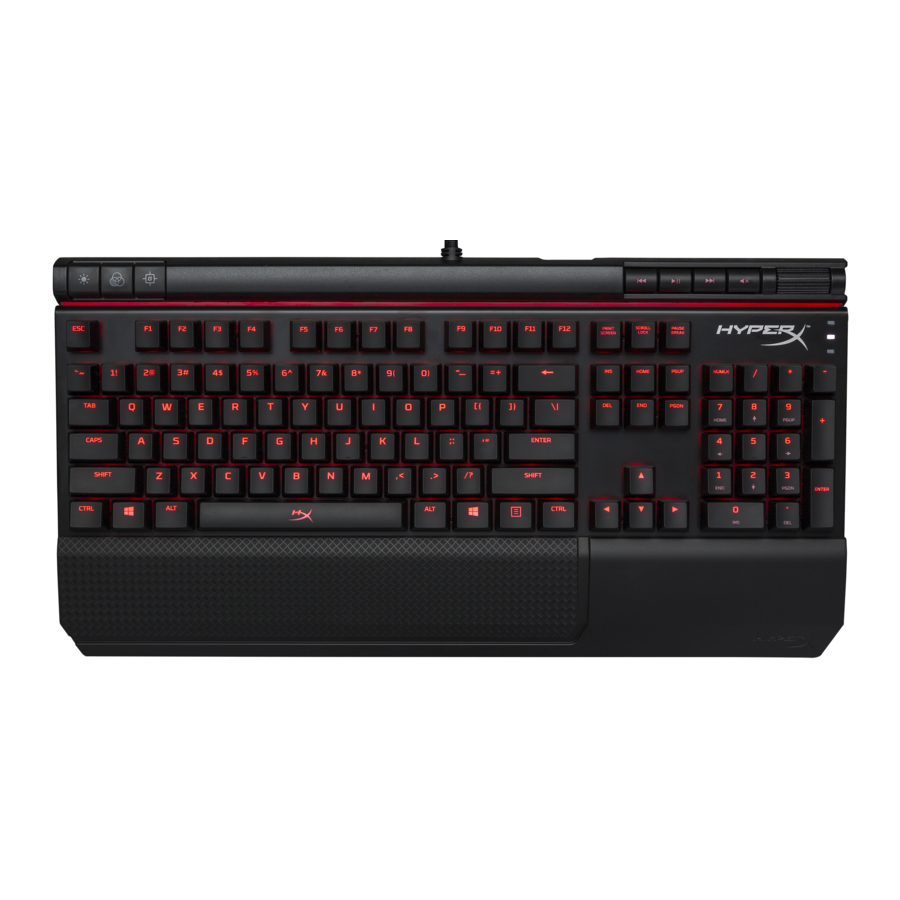

Keyboard Overview

1. Brightness control button
2. LED mode control button
3. Game Mode button
4. Back USB port (USB 2.0 pass-through)
5. Media control buttons
6. Volume mute button
7. Volume control wheel
8. Game Mode / Num Lock / Caps Lock indicators
9. Detachable wrist rest

Keyboard Installation

1. Connect both USB connectors to the computer.


Function Keys

Function Keys	Secondary Feature
	Change the LED Backlight brightness. There are 4 levels of brightness: OFF, low, medium and high.
	Switch between the LED backlight modes.
	Enable Game Mode to disable the Windows key and prevent accidental interruption during gaming. When Game Mode is enabled the indicator will illuminate.
	Play/pause , skip backwards or skip forward while listening to music or watching videos.
	Mute computer audio.
	Increase or decrease computer audio volume.

LED backlight modes

There are six LED backlight modes: ► Solid (default) ► Breathing ► Trigger ► Explosion ► Wave ► Custom.

	Solid: Constant lightning (default setting).
	Breathing: Slow rhythmic blinking that mimics breathing.
	Trigger: Individuals keys will light up when pressed and slowly fade after one second.
	Explosion: A lighting effect will radiate from individual keys when pressed.
	Wave: Keys will light up from left to right in a wave pattern.
	Custom: You can choose which keys you want to light up.

Follow these steps to customize:

1. Switch the backlight mode to Custom.
2. Hold until the backlight turns off.
3. Press the key or keys you want to have backlight ON.
4. When finished, press again to save your custom backlight profile.

Keyboard factory reset

If you are experiencing any issue with the keyboard you can perform a factory reset. You will lose your custom LED profile by doing this.

Function Keys	Secondary Feature
	Press all three keys simultaneously until the keyboard LED backlight blinks twice.
