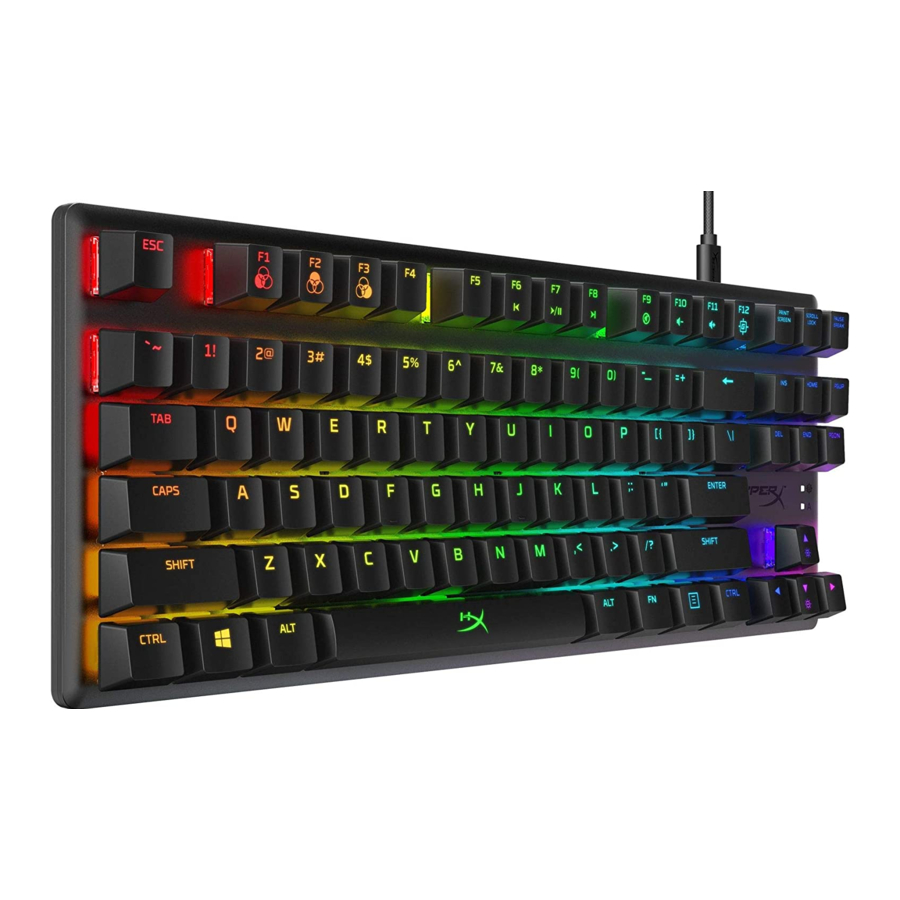

HyperX Alloy Origins Core - Mechanical Gaming Keyboard Manual

What's Included

• HyperX Alloy Origins Core Mechanical Gaming Keyboard


• Detachable USB Type-C cable


Overview

FN + F1, F2, F3 = Onboard memory profile selection
FN + F6, F7, F8 = Media control keys
FN + F9, F10, F11 = Volume control keys
FN + F12 Game Mode key
Game Mode / Num Lock / Caps Lock indicators
FN + Up & Down = LED brightness control keys
Keyboard feet with three adjustable angles (3°, 7°, 11°)
Keyboard USB-C port

Installation

1. Connect the USB-C connector to the keyboard.
2. Connect the USB connector to the computer.

Function Keys

Press and a function key at the same time to activate its secondary feature.

Function Keys	Secondary Feature
	Switch between the profiles on the onboard memory.
	Play/pause, skip backward, or skip forward through your media.
	Mute, decrease, or increase your volume level.
	Toggle Game Mode on/off. Game Mode will disable the Windows key. When Game Mode is enabled, the indicator on the top right of the keyboard will illuminate.
	Increase or decrease the LED backlight brightness. There are 5 levels of brightness: Off, 25%, 50%, 75%, 100%.

HyperX NGENUITY Software

To customize Lighting, Game Mode and Macro Settings, download the HyperX NGENUITY Software here: hyperxgaming.com/ngenuity.

Using with Console

Connect to PS4 or Xbox One using the included USB cable.

Factory Reset

If you are experiencing any issue with the keyboard, you can perform a factory reset. Onboard memory will be cleared, and all settings will revert back to default.

Function Keys	Secondary Feature
Hold both keys for 5 seconds	Perform a factory reset on the keyboard.

Specifications

Keyboard
Switch: HyperX Switch
Type: Mechanical
Backlight: RGB (16,777,216 colors)
Light effects: Per key RGB lighting** and 5 brightness levels
Onboard memory: 3 profiles
Connection type: USB Type-C to USB Type-A
Adjustable keyboard feet: 3°, 7°, 11°
Anti-ghosting: 100% anti-ghosting
Key rollover: N-key mode
LED indicator: Yes Media control: Yes
Game Mode: Yes
OS compatibility: Windows^® 10, 8.1, 8, 7
Console compatibility: PS4, Xbox One

Key Switches
Switch: HyperX Red Switch
Operation style: Linear
Operating force: 45 g
Actuation point: 1.8 mm
Total travel distance: 3.8 mm
Life span (keystrokes): 80 million

Cable
Type: Detachable, Braided
Length 1.8 m

Dimensions
Width: 360.0 mm
Depth: 132.5 mm
Height: 34.5 mm
Weight (keyboard and cable): 900 g

**Per key RGB lighting customizable with HyperX NGENUITY Software

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/
