HyperX Alloy Origins HX-KB6RDX Manual

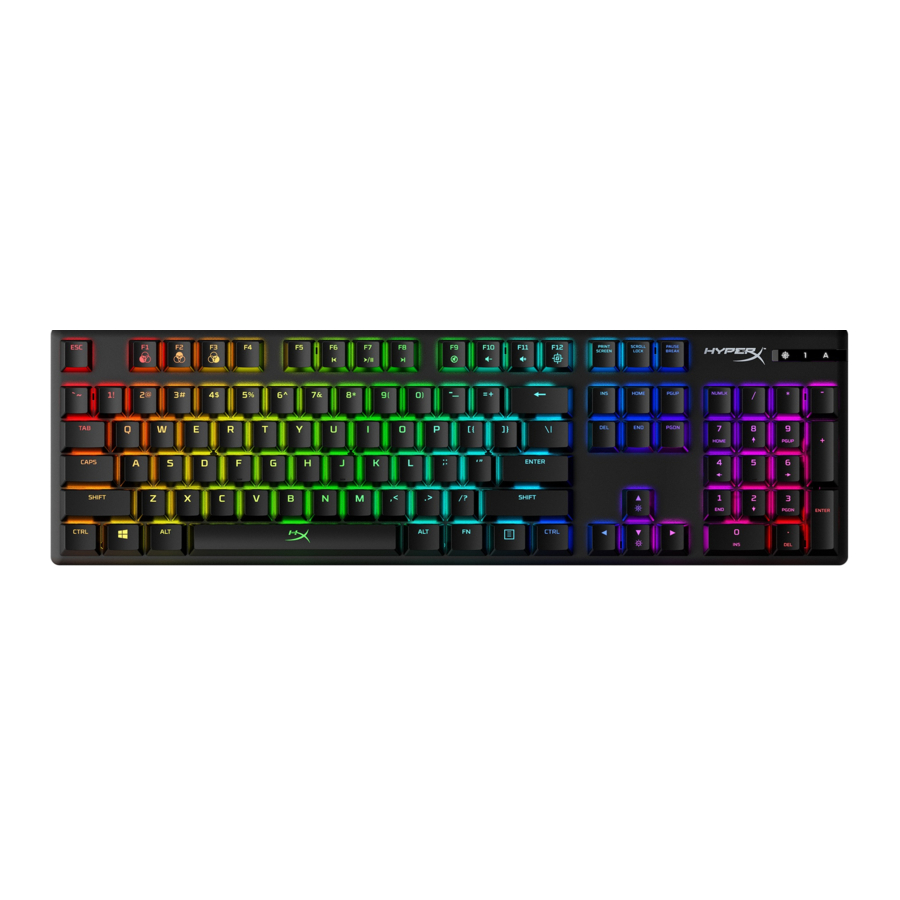

Overview

What's Included

• HyperX Alloy Origins Mechanical Gaming Keyboard
• Detachable USB Type-C cable

1. FN + F1, F2, F3 = Onboard memory profile selection
2. FN + F6, F7, F8 = Media control keys
3. FN + F9, F10, F11 = Volume control keys
4. FN + F12 Game Mode key
5. Game Mode / Num Lock / Caps Lock indicators
6. FN + Up & Down = LED brightness control keys
7. Keyboard feet with three adjustable angles
8. Keyboard USB-C port

Specifications

Keyboard

• Switch: HyperX Switch
• Type: Mechanical
• Backlight: RGB (16,777,216 colors)
• Light effects: Per key RGB lighting** and 5 brightness levels
• Onboard memory: 3 profiles
• Connection type: USB Type-C to USB Type-A
• Anti-ghosting: 100% anti-ghosting
• Key rollover: N-key mode
• LED indicator: Yes
• Media control: Yes
• Game Mode: Yes
• OS compatibility: Windows^® 10, 8.1, 8, 7
• Console compatibility: PS4, Xbox One

Key Switches

• Switch: HyperX Red Switch
• Operation Style: Linear
• Actuation force: 45 g
• Key travel distance: 1.8 mm
• Total travel: 3.8 mm
• Life span (Keystrokes): 80 million

Cable

• Type: Detachable, Braided
• Length 1.8 m

Dimensions

• Width: 442.5 mm
• Depth: 132.5 mm
• Height: 36.39 mm
• Weight (keyboard and cable): 1075 g

**Per key RGB lighting customizable with HyperX NGENUITY Software

Installation

1. Connect the USB-C connector to the keyboard.
2. Connect the USB connector to the computer.

Function Keys

Press and a function key at the same time to activate its secondary feature.

Function Keys	Secondary Feature
	Switch between the profiles on the onboard memory.
	Play/pause, skip backward, or skip forward through your media.
	Mute, decrease, or increase your volume level.
	Toggle Game Mode on/off. Game Mode will disable the Windows key. When Game Mode is enabled, the indicator on the top right of the keyboard will illuminate.
	Increase or decrease the LED backlight brightness. There are 5 levels of brightness: Off, 25%, 50%, 75%, 100%.

HyperX NGENUITY Software

To customize Lighting, Game Mode and Macro Settings, download the HyperX NGENUITY Software here: hyperxgaming.com/ngenuity.

Using with Console

Connect to PS4 or Xbox One using the included USB cable.

Factory Reset

If you are experiencing any issue with the keyboard, you can perform a factory reset. Onboard memory will be cleared, and all settings will revert back to default.

Function Keys	Secondary Feature
Hold both keys for 5 seconds	Perform a factory reset on the keyboard

Support

Questions or Setup Issues?
Contact the HyperX support team at: hyperxgaming.com/support/
