OPERATOR'S MANUAL
TDU 107
Touch Display Unit
4189341218F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDU 107 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deif TDU 107

Summary of Contents for Deif TDU 107

  • Page 1 OPERATOR'S MANUAL TDU 107 Touch Display Unit 4189341218F...

  • Page 2: Table Of Contents

    1. Introduction 1.1 About the Operator's manual ......................................1.1.1 Intended users of the Operator's manual ................................. 1.1.2 Software versions ..........................................1.1.3 List of technical documentation ....................................1.1.4 Technical support ..........................................1.1.5 Symbols for hazard statements ....................................1.1.6 Symbols for notes ..........................................
  • Page 3 Additional Operator Panel (AOP) .................................... Language .............................................. 4.10 User permissions .......................................... 4.10.1 Password levels ..........................................4.10.2 User permissions .......................................... 4.11 Display Config ..........................................4.11.1 More settings ........................................... 4.12 Language Mgt ..........................................4.13 Language translations ........................................4.13.1 Introduction ............................................4.13.2 Before you begin ...........................................

  • Page 4: Introduction 1.1 About The Operator's Manual

    This is the operator's manual for DEIF's Touch Display Unit, TDU 107 controlling the AGC-4 Mk II or AGC-4 genset or mains controller. The manual is for the operator who uses the TDU 107. The manual includes an introduction to the unit, basic operator tasks, alarms, logs, and more advanced operator tasks.

  • Page 5: Symbols For Hazard Statements

    1.1.5 Symbols for hazard statements DANGER! This highlights dangerous situations. If the guidelines are not followed, these situations will result in death, serious personal injury, and equipment damage or destruction. WARNING This highlights potentially dangerous situations. If the guidelines are not followed, these situations could result in death, serious personal injury, and equipment damage or destruction.

  • Page 6: Warnings And Safety

    1.3.2 Third party equipment DEIF takes no responsibility for the installation or operation of any third party equipment, including the genset. Contact the genset company if you have any doubt about how to install or operate the genset. OPERATORS MANUAL 4189341218F EN...

  • Page 7: Disclaimer

    DEIF A/S reserves the right to change any of the contents of this document without prior notice. The English version of this document always contains the most recent and up-to-date information about the product. DEIF does not take responsibility for the accuracy of translations, and translations might not be updated at the same time as the English document.

  • Page 8: Overview Of The Unit

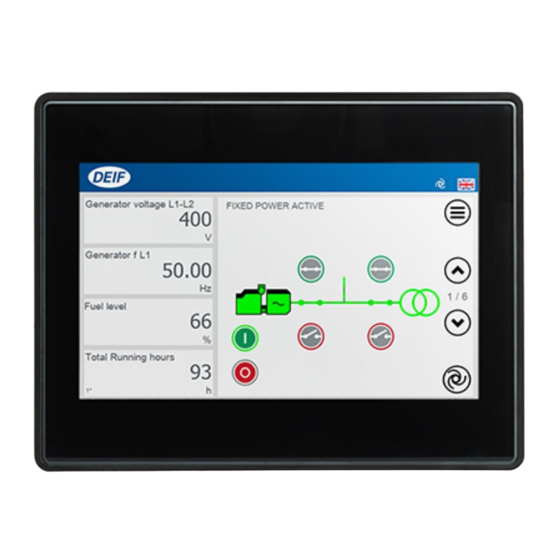

    This manual applies to both TDU 107 Core and TDU 107 Extended. The software features are the same. The Touch Display Unit, TDU 107, is a touch screen solution for controlling an AGC-4 Mk II or AGC-4 genset or mains controller using the Ethernet port.

  • Page 9: Layout

    Layout 2.2.1 Unit Figure 2.2 TDU 107 layout Item Notes Touch screen area Operate the controller by touching the screen. Frame OPERATORS MANUAL 4189341218F EN Page 9 of 40...

  • Page 10: Status Bar

    2.2.2 Status bar Item Notes Fuel level * Shows the fuel level. Diesel Exhaust Fluid (DEF) percentage ** Shows the DEF percentage. Running hours *** Shows the total of running hours. Shows a USB drive was detected. USB drive Prompts to remove the USB drive safely. Shows a user is logged on.

  • Page 11: Core Connections

    Ethernet USB 2.0 The TDU 107 Core can be connected to the controller directly or using a switch. Use a USB type A-B cable to connect a service computer to the AGC if the TDU Core is connected directly to the controller.
  • Page 12 Port 0 Port 1 In system configurations without a high data transfer connection it is possible to connect the TDU 107 Extended version directly to the controller and connect a service PC to the TDU 107. AGC-4* example wiring for a system configuration without a high data transfer connection...

  • Page 13: Operating The System

    3. Operating the system Menus The menu pages give you access to the features and to other menus. Item Notes Shows available features or other menus. Features Selects feature or menu. 3.1.1 Return (back) navigation Some displays allow you to go back to the previous feature or menu. Use Return to return to a previous menu or display.

  • Page 14: Keyboards

    Keyboards 3.2.1 Text keyboard You enter text information on the display by using the virtual text keyboard. Item Notes Text Shows the text you are entering. Keyboard Selects letters, numbers, or symbols. Cursor Moves the cursor to the left. Moves the cursor to the right. Enter Confirms the text entered.

  • Page 15: Value Keyboard

    3.2.2 Value keyboard You enter number values on the display by using the virtual value keyboard. Item Notes Value Shows the value you are entering. Previous value Shows the value before any changes. Minimum value Shows the minimum value you can enter. Maximum value Shows the maximum value you can enter.

  • Page 16: Software Update Using Usb

    14. To complete the configuration, select Continue. 15. Select Done, then select Start HMI. 16. The TDU 107 restarts. 17. Remove the USB drive from the TDU 107. The TDU 107 is now updated and ready to use. OPERATORS MANUAL 4189341218F EN Page 16 of 40...

  • Page 17: Features

    4. Features Home : Control panel Operation: Mode change, open/close breakers, and start/stop GENSET. Shows selected measurements. Item Notes Hold for > 3 seconds to configure instrument Changes instrument shown. properties. Instrument values Scrolls up or down instrument pages. Engine information Opens the engine information page.

  • Page 18: Change Instrument

    4.1.1 Change instrument Changes the displayed instrument value shown on the Control panel page. Item Notes Instrument value to change Selects instrument to change. Refresh Refreshes the list of values. Scrolls page left. Scrolls page right. Scroll and search Searches for values. Save Saves the change.

  • Page 19: Instrument Property

    4.1.2 Instrument property Configures the displayed instrument properties: unit, decimals, offset, and multiply. Item Notes Instrument value to change Selects instrument to change. Factory setting Returns the properties back to the factory default values. Save Saves the change. Instrument properties Configures the different instrument properties.

  • Page 20: Supervision

    Supervision Views the state of the system in real-time. * Item Notes Live system overview Shows the system state. * Menu Opens the menu page. NOTE * Actual system shown depends upon your plant configuration. OPERATORS MANUAL 4189341218F EN Page 20 of 40...

  • Page 21: Controller Settings

    Controller settings Views or configures the controller parameter settings. 24 % 09/05/2019 - 12:46:16 DEIF Channel Value Timer Enabled 1000 -P> -5,0 % 1010 -P> -5,0 % 10,0 1030 I> 115,0 % 10,0 1040 I> 120,0 % 1050 I> 115,0 % 10,0 1060 I>...

  • Page 22: Edit Settings

    4.3.1 Edit settings Edits the controller setting that was selected. * Item Notes Setting Shows the name of the setting. Shows the value of the setting. Value Opens the Value keyboard to edit value. * Value (Scroll) Scrolls left or right to increase or decrease the value. Toggles on or off additional settings.

  • Page 23: Filter Groups

    4.3.2 Filter groups Lists the filter groups you can use to filter the controller settings page. Item Notes Shows the list of filter groups. Selects a filter group. Filter groups Returns to previous display. OPERATORS MANUAL 4189341218F EN Page 23 of 40...

  • Page 24: Alarms

    Alarms Views or acknowledges any alarms created in the system. Item Notes Back Returns to previous display. Acknowledge all alarms Acknowledges all unacknowledged alarms. Alarms list Scrolls the alarm list up or down. Shows the state of the alarm. Alarm state Acknowledged alarm.

  • Page 25: Alarms Popup

    4.4.1 Alarms popup New alarms activated in the system are shown on the alarms popup at the top of the display. Item Notes Alarm Shows the activated alarm. Alarms list Opens the Alarms list (shortcut). Alarm settings Opens the Alarm settings (shortcut). Acknowledge Acknowledges the alarm (Shortcut).

  • Page 26: Logs

    Shows the list of all recorded events or alarms created in the system. You can also filter, merge, or view further details on the events. 24 % 09/05/2019 - 12:46:16 DEIF Description Timestamp Remote comm. GB On 14/05/2019 - 09:27:26...

  • Page 27: Exhaust After-Treatment Dashboard (Tier4)

    Exhaust After-Treatment Dashboard (Tier4) Shows information about the Exhaust After-Treatment system. * Item Notes Return Returns to previous display. Shows the engine status. Engine interface status Shows an engine warning. Shows an engine shutdown. Engine emission system failure Shows an emission failure or malfunction. High temperature - Regeneration Shows a high temperature and regeneration is in process.

  • Page 28: Alternator Curve

    Alternator curve Views or configures the safe operation limits for the alternator. * Item Notes Return Returns to previous display. Alternator curve Shows the safe operation limits for the alternator. Import (Leading) Opens the capacitive Q< configuration. Export (Lagging) Opens the inductive Q> configuration. Setting point Shows the numbered setting points.

  • Page 29: Additional Operator Panel (Aop)

    * The logic condition(s) must be configured in your M-Logic project for the LED status and buttons to work. NOTE ** LED name and button name are saved locally on the TDU 107. More information See Application notes M-Logic AGC-4 Mk II for more information about how to create and configure M-Logic projects.

  • Page 30: Language

    Language Selects an active language for the display. * 24 % 09/05/2019 - 12:46:16 DEIF en-gb de-de fr-fr Item Notes Return Returns to previous display. Shows the available active languages. Languages * Selects the language for the display. NOTE * The actual languages shown must be both installed and active to be listed for selection.

  • Page 31: User Permissions

    4.10 User permissions 4.10.1 Password levels Table 4.1 Password level symbols Symbol Password level Symbol Password level No login required Level 1 - Customer Level 2 - Service Level 3 - Master 4.10.2 User permissions Features of the display can be restricted to the AGC password levels. Item Notes Return...

  • Page 32: Display Config

    DEIF DD/MM/YYYY - hh:mm:ss Set date & time Date format Number format # ###,## More settings Home page Control Panel DEIF - Blue Insert theme code CONFIGURATION SETTINGS Export config Import config Item Notes Return Returns to previous display. Edits the display settings: •...

  • Page 33: More Settings

    Parameter shortcut Shows or hides the Parameter button on the home page. Breaker buttons Shows or hides the breaker buttons on the home page. TDU 107 clock Select the master clock for the system. master OPERATORS MANUAL 4189341218F EN Page 33 of 40...

  • Page 34: Language Mgt

    4.12 Language Mgt Manages the language translations available on the display. Only Active languages can be used on the display. Item Notes Return Returns to previous display. Import Imports all language files present on the USB device. Export Exports the selected language to the USB device. Create language Creates a new language file to the USB device.

  • Page 35: Language Translations

    (Provided in English) NOTE The TDU 107 only reads the AGC texts at start-up. If you edit the AGC texts in the Utility software, while the TDU is already running, you must restart the TDU 107 to read the new texts.

  • Page 36: Create Or Edit Language Translation

    ◦ Example: 20. Your new language file is shown for selection. 21. Select your new language for your TDU 107 display. • The TDU 107 now reloads all the texts after confirmation. OPERATORS MANUAL 4189341218F EN...

  • Page 37: Export Or Import Settings

    4.14 Export or import settings 4.14.1 Introduction You can export or import your TDU 107 configuration to a USB drive. This can be useful for backing up your configuration or transferring the configuration to another TDU 107. The configuration includes: •...
  • Page 38 • The TDU 107 must be restarted for the new configuration to be applied. 7. Select Confirm to restart. OPERATORS MANUAL 4189341218F EN Page 38 of 40...

  • Page 39: Access Lock

    The TDU 107 supports the Access lock function from the AGC. When a digital input is configured for this function and is active (high), attempting to operate the TDU 107 displays the Access lock message in the status bar. Configuration and operation can no longer be saved or changed.

  • Page 40: End-Of-Life

    In Europe, the disposal of WEEE is governed by the WEEE directive issued by the European Parliament. DEIF complies with this directive. You must not dispose of WEEE as unsorted municipal waste. Instead, WEEE must be collected separately, to minimise the load on the environment, and to improve the opportunities to recycle, reuse and/or recover the WEEE.
