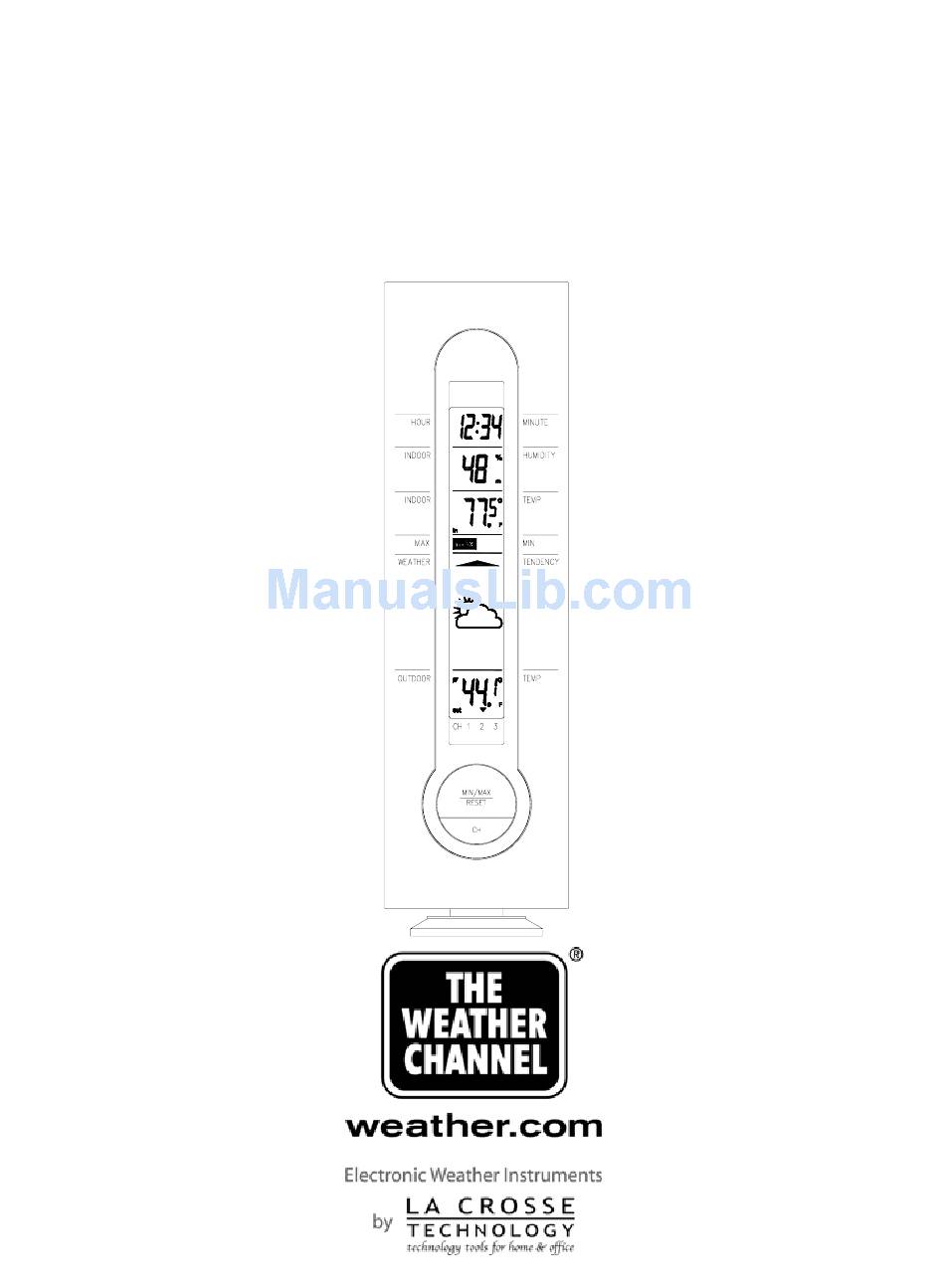

- Page 1 WS-7042TWC Wireless 433 MHz Weather Station with Forecast Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Inventory of Contents/Additional Equipment Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Function Keys Time Setting Features Weather Forecast Indoor Temperature and Humidity Outdoor Temperatures Minimum & Maximum Records (Indoor, Outdoor & Resetting) Additional Remote Temperature Sensor Units (Set-Up, Viewing &... -
Page 3: Inventory Of Contents/Additional Equipment

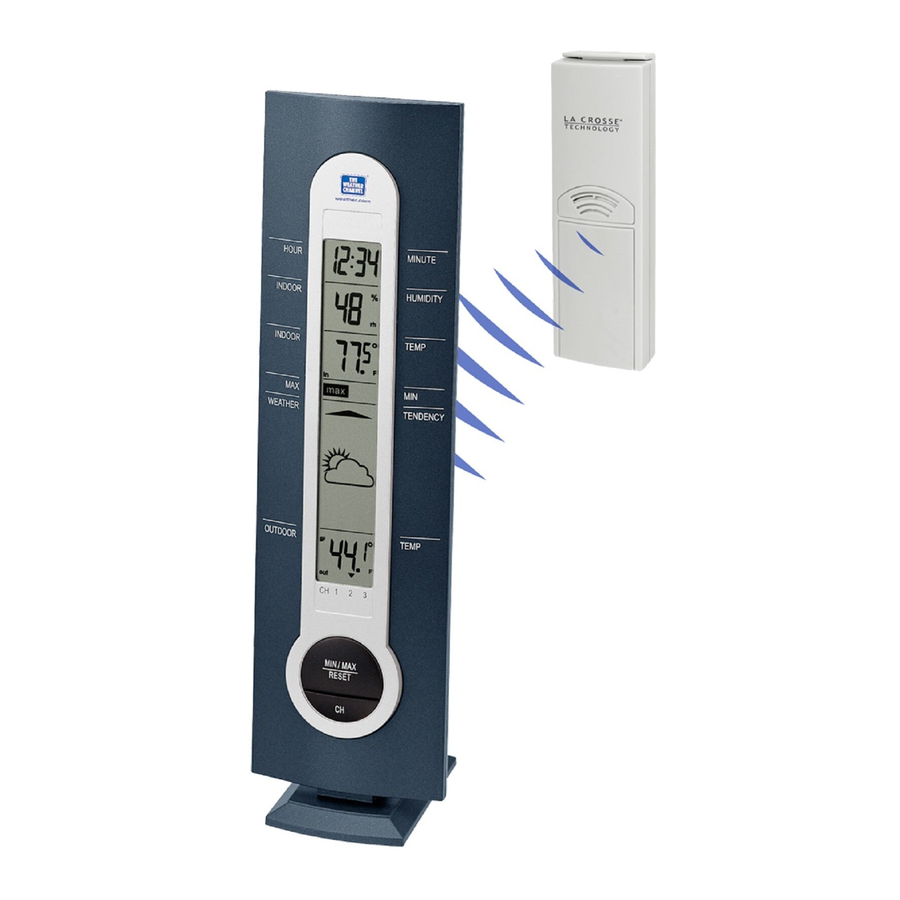

INVENTORY OF CONTENTS 1. The indoor weather station (Figure 1). 2. One TX6U remote temperature sensor with mounting bracket (Figure 2). 3. Three each, ½” Philips screws. 4. One strip double-sided adhesive tape. 5. Instruction manual and warranty card. Time LCD Indoor LCD Forecast LCD Outdoor LCD... -
Page 4: Quick Set-Up Guide
QUICK SET-UP GUIDE Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor weather station and remote temperature sensor 3 to 5 apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor weather station. -
Page 5: Detailed Set-Up Guide
DETAILED SET-UP GUIDE Battery Installation A. Remote Temperature Sensor 1. Remove the mounting bracket. bracket snaps on and off easily. 2. Remove the battery cover, by sliding the cover down. 3. Observing the correct polarity install 2 AA batteries. tightly (to avoid start-up problems make sure they do not spring free). -
Page 6: Program Mode
A. Function Keys There are four function buttons on the WS-7042TWC. The two buttons on the front are labeled “MIN/MAX/RESET” and “CH”. back are labeled “SET” and “+”. -
Page 7: Weather Forecast
The weather forecasting feature is estimated to be 75% accurate. The weather forecast is based solely upon the change of air pressure over time. The WS-7042TWC averages past air-pressure readings to provide an accurate forecast—creating a necessity to disregard all weather forecasting for 12-24 hours after the unit has been set-up, reset, or moved from one altitude to another (i.e. - Page 8 A. Weather Icons There are 3 possible weather icons that will be displayed in the FORECAST LCD: Sunny—indicates that the weather is expected to improve (not that the weather will be sunny). Sun with Clouds—indicates that the weather is expected to be fair (not that the weather will be sunny with clouds).
-
Page 9: Indoor Temperature And Humidity
OUTDOOR LCD. (This feature is explained in further detail in section V—Adding Remote Temperature Sensors). IV. Minimum and Maximum Temperature Records The WS-7042TWC keeps a record of the MINIMUM and MAXIMUM temperature for both the indoor and outdoor modes. A. Viewing Minimum and Maximum Temperature Records 1. -
Page 10: Units (Set-Up, Viewing & Operation)
V. Adding Remote Sensors (optional) The WS-7042TWC is able to receive signals from 3 different remote temperature sensors. The remote temperature sensor model(s) that you choose will come with their own set of instructions. - Page 11 B. Viewing and Operating Multiple Remote Sensors To view the temperature of a different remote sensor unit, press and release the “CH” button. An arrow over one of the numbers at the bottom of the LCD will be seen. To view the minimum/maximum temperature: 1.
-
Page 12: Mounting
MOUNTING Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the remote temperature sensor on a North-facing wall. The sending range is 80ft; obstacles such as walls, concrete, and large metal objects will reduce the range. Also, extreme and sudden changes in temperature will decrease the accuracy of the indoor weather station and changes in elevation will result with inaccurate weather forecasting for the next 12 to 24 hours. - Page 13 B. MOUNTING WITH ADHESIVE TAPE 1) With a nonabrasive solution, clean and dry the back of the mounting bracket and the mounting surface to ensure a secure hold. The mounting surface should be smooth and flat. 2) Remove the protective strip from one side of the tape.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. Solution: 1. Remove all batteries, reinsert into remote temperature sensor first, then into the indoor temperature station. 2. Place remote temperature sensor closer to the indoor temperature station. -
Page 15: Maintenance & Care
MAINTENANCE AND CARE INSTRUCTIONS • Extreme temperatures, vibration and shock should be avoided to prevent damage to the units. • Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents. They may mark the displays and casings. •... -
Page 16: Specifications
SPECIFICATIONS Temperature measuring range: Indoor Outdoor Indoor relative humidity measuring range Indoor temperature checking interval Indoor humidity checking interval Outdoor temperature checking interval (Remote Temperature Sensor) Outdoor temperature reception (Indoor Weather Station) Transmission Range: Power Supply: Indoor Weather Station: Remote Temperature Sensor: Battery life cycle: Recommended battery type: Dimensions (L x W x H) -
Page 17: Warranty Information
WARRANTY INFORMATION La Crosse Technology provides a 1-year warranty on this indoor weather station. Contact La Crosse Technology immediately upon discovery of any defects covered by this warranty. Before sending the indoor weather station in for repairs, contact La Crosse Technology. - Page 18 For warranty work, technical support or information contact: FCC ID: OMO-01RX (Receiver), OMO-01TX (transmitter) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
