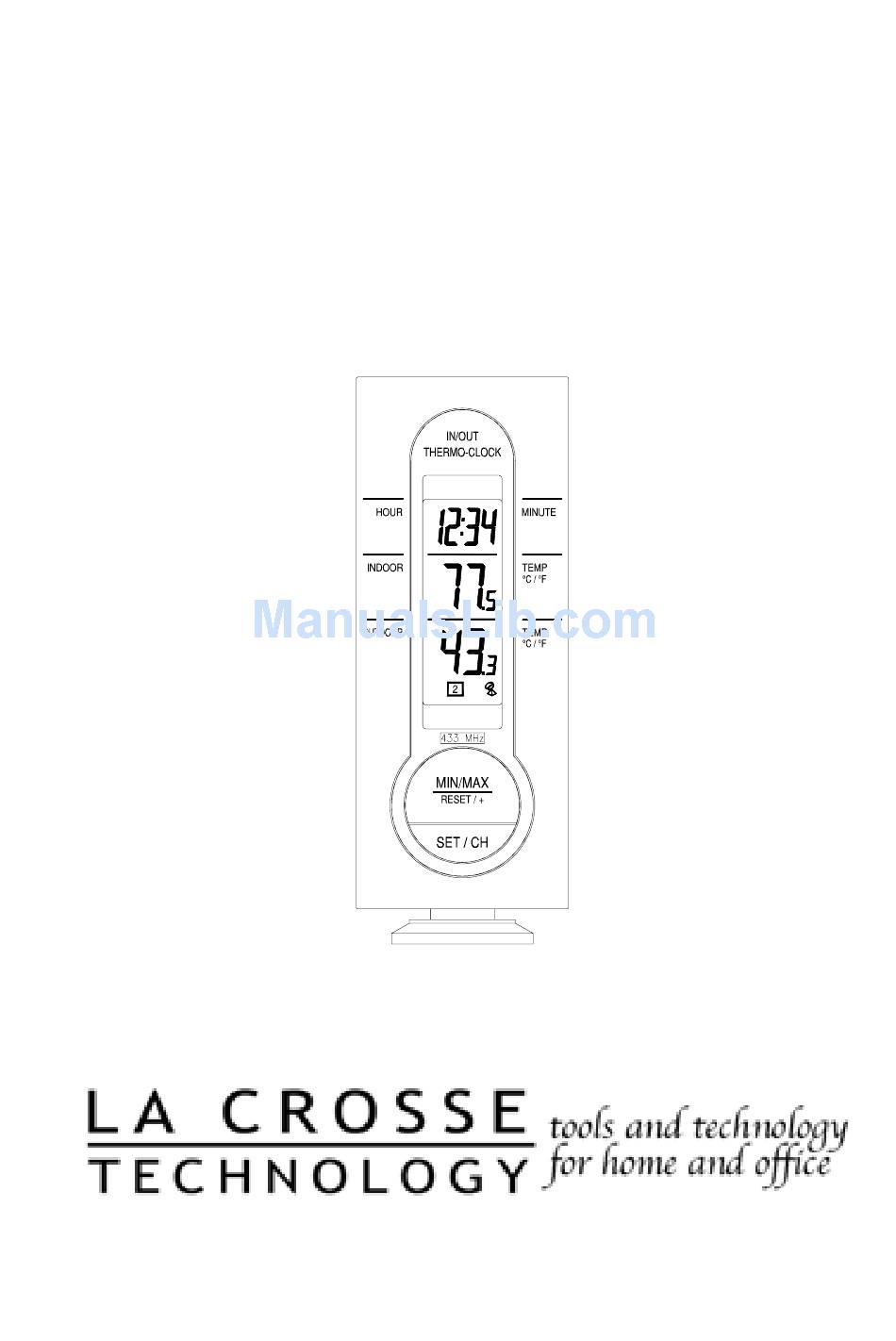

- Page 1 WS-7034U-IT Wireless 915 MHz Temperature Station Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Page Quick Setup Inventory of Contents Detailed Setup Guide Battery Installation Setting the Time Selecting Units of Measurement Features Minimum and Maximum 9-10 Temperatures Resetting Minimum and Maximum Temperatures Adding additional remote 11-12 temperature sensors (optional) Mounting 12-13 Troubleshooting... -
Page 3: Quick Setup
QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor temperature station and remote temperature sensor 3 to 5 feet apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor temperature station. - Page 4 display will show both the indoor temperature and an outdoor temperature. If the indoor temperature station does not display both temperatures after the 10 minutes please retry the set up as stated above. After both indoor and outdoor temperatures are displayed for 10 minutes you can place your remote temperature sensor outdoors and set your time.
-
Page 5: Inventory Of Contents
NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be avoided. To complete the set up of your indoor temperature station after the 10 minutes have passed please follow the steps on pages 8-9. INVENTORY OF CONTENTS The indoor temperature station (Figure The remote temperature sensor... -
Page 6: Detailed Setup Guide
Figure 1 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver. 2 Fresh AAA Alkaline batteries. 2 Fresh AA Alkaline batteries DETAILED SETUP GUIDE Battery Installation Install 2 AA batteries in the remote temperature sensor. Make sure they do not spring free, or start-up... -
Page 7: Setting The Time
problems may occur. Install 2 AAA batteries in the Battery indoor temperature Cover station. Do not press any buttons for at least ten minutes. Setting the Time Press and hold the “SET” button for 5 second, “12h” will appear in the TIME LCD. -
Page 8: Selecting Units Of
Press and release the “SET” button to move to the minute setting Press and release the “MIN/MAX” button to set the minutes. Press and release the “SET” button to activate the clock. Note: When in 12h mode, there is only a “PM”... -
Page 9: Features
FEATURES Minimum and Maximum Temperatures Press and release the “MIN/MAX” button, “MIN” appears next to the indoor and remote temperatures. The recorded minimum temperature is displayed. Press the “MIN/MAX” button, “MAX” appears next to the indoor and remote temperatures. The recorded maximum temperature is displayed. -
Page 10: Adding Additional Remote
“RESET/+” button for 4 seconds. Adding Additional Remote Temperature Sensors (optional) The WS-7034U-IT is able to receive signals from 3 different remote temperature sensors. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-7034U-IT. -
Page 11: (Optional) Mounting
first into all the remote temperature sensors. Second install batteries into the indoor temperature station and do not press any buttons for ten minutes. Transmission problems will arise if this is not done correctly. To view the temperature of a different remote temperature sensor unit, press and release the “SET/CH”... - Page 12 Remote Temperature Sensor Remove the mounting bracket from the remote temperature sensor. Mount the bracket in the desired location with either screws or adhesive tape. Reattach the remote temperature sensor into mounting bracket. Indoor Temperature Station The indoor temperature station comes with the table stand already mounted.
-
Page 13: Troubleshooting
TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology via e-mail or phone, or visit our website, www.lacrossetechnology.com Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. - Page 14 so the straight-line signal is not passing through more than two or three walls. Problem: Temperatures do not match if units are placed next to each other. Solution: Each temperature sensor is manufactured to be accurate to within 1 degree plus or minus and under normal conditions, so two sensors could be as much as 2 degrees different.
-
Page 15: Maintenance And Care
Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology repairs. SPECIFICATIONS Transmitting 915MHz Frequency... - Page 16 Measuring Temperatures Indoor 14.1°F to 139.82°F with 0.2 °F resolution. Temperature Station (-9.9°C to 59.9°C with 0.1°C resolution). -39.8 °F to 139.8°F with Remote Temperature 0.2°F resolution. Sensor (-39.8°C to 59.9°C with 0.1°C resolution). Temp accuracy +/- 1°F (+/- .5°C). Transmitting Maximum feet...
-
Page 17: Warranty Information
(59 x 22 x 65 mm). Sensor Battery life Up to 24 months. WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date... - Page 18 La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as...
- Page 19 Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier);...
- Page 20 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work)
- Page 21 FCC ID: OMO-01RX (Receiver), OMO-01TX (sensor) Freq. 915 MHz La Crosse Technology Made in China WS-7034it All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or...
- Page 22 duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences.
