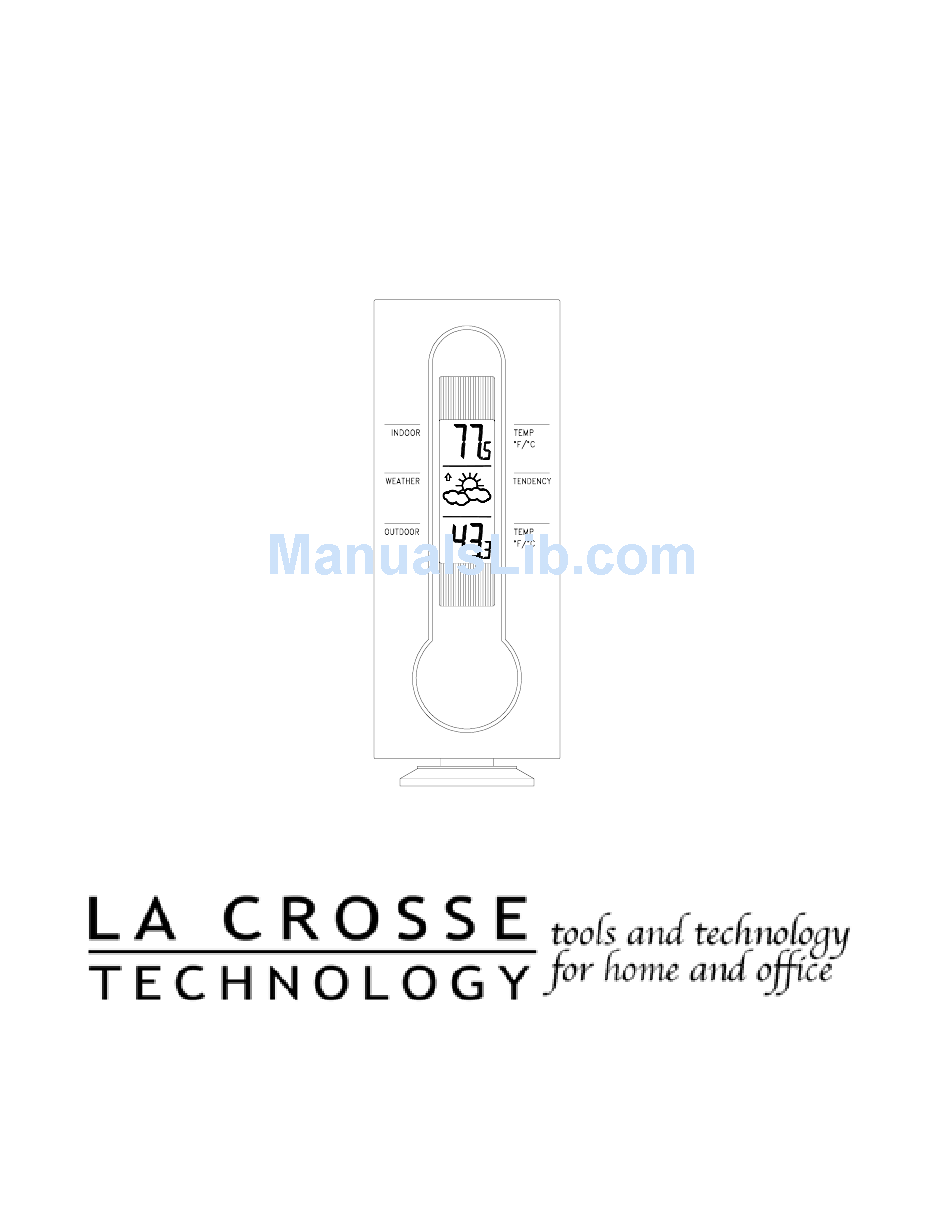

- Page 1 WS-7032U Wireless 433 MHz Miniature Weather Station Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Inventory of Contents/Additional Equipment Quick set-up guide Battery installation Features: Indoor temperature Weather Forecast icons & tendency arrows Outdoor temperature Mounting Troubleshooting Maintenance and Care instructions Specifications Warranty Page 8-10 11-13 17-18... -
Page 3: Inventory Of Contents/Additional
INVENTORY OF CONTENTS WS-7032U—Weather Station. TX6U—Remote Temperature Sensor. Three each, ½” Philips screws. One strip double-sided adhesive tape. Instruction manual & Warranty card. ADDITIONAL EQUIPMENT Two fresh AAA 1.5V batteries (for weather station). Two fresh AA 1.5V batteries (for remote sensor) One Philips screwdriver. -
Page 4: Quick Set-Up Guide
QUICK SET-UP GUIDE Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor station and outdoor remote 3 to 5 apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the outdoor remote first then into the indoor station. - Page 5 The remote sensor should be placed in a dry, shaded area. The remote sensor has a range of 80 feet. Any walls that the signal will have to pass through will reduce distance. An outdoor wall or window will have 20 to 30 feet of resistance and an interior wall will have 10 to 20 feet of resistance.
-
Page 6: Battery Installation
DETAILED SET-UP GUIDE BATTERY INSTALLATION REMOTE TEMPERATURE SENSOR Remove cover. Place your thumb over the two air-vent slots on the face of the Remote Sensor, gently battery cover down and off. Observing polarity, install 2 AA batteries. The batteries will fit tightly (to avoid start-up problems make sure that they do not spring free during installation). -
Page 7: Features
batteries. The batteries will fit tightly (to avoid start-up problems make sure that they do not spring free during installation). Replace the battery cover. To switch between °F and °C, press the °F/°C button on the back of the unit. Note: After the batteries have been installed into the Weather Temperature Station the LCD segments should light up. -
Page 8: Indoor Temperature
LCD. The temperature is monitored as soon as the batteries are installed. WEATHER FORECAST The weather forecasting feature is estimated to be 75% accurate. The weather forecast is based solely upon the change of air pressure over time. The WS-7032U averages past INDOOR LCD FORECAST LCD... -
Page 9: Weather Icons
an accurate forecast—causing a necessity to disregard all weather forecasting for 12-24 hours after the unit has been set-up, reset, or moved from one altitude to another (i.e. from one floor of a building to another). In areas where the weather is not affected by the change of air pressure, this feature will be less accurate. -
Page 10: Weather Tendency Arrows
with rain,” or the reverse. It will not change from “sunny” directly to “rainy,” although it is possible for the change to occur quickly. If the symbols do not change then the weather has not changed, or the change has been too slow and gradual to register. -
Page 11: Mounting With Screws
Note: Extreme and sudden changes in temperature will decrease the accuracy of the Weather Temperature Station, and changes in elevation will result with inaccurate weather forecasting for the next 12 to 24 hours. These changes will require a 12 to 24 hour wait before obtaining reliable data. -
Page 12: The Weather Station
location. Through the three screw holes of the bracket, mark the mounting surface with a pencil. Where marked, start the screw holes into the mounting surface. Screw mounting bracket onto the mounting surface. Ensure that the screws are flush with the bracket. Snap the Remote Temperature Sensor onto the mounted bracket. -
Page 13: Wall Mounting
with the use of a wall hanging screw (not included). WALL MOUNTING Place a screw (not included) into an appropriate wall, leaving approximately 3/16 of an inch (5mm) extended from the wall. Place the Weather Station onto the screw using the hanging hole on the backside. Gently pull the Station down to lock the screw into place. -
Page 14: Maintenance And Care Instructions
Solution: 1) Remove all batteries—wait 30 seconds— then reinsert into sensor first, then into the station. 2) Place sensor closer to station. 3) Be sure there are no obstructing objects. 4) Be sure all batteries are fresh. Problem: The LCD screens are faint/dim. Solution: Replace batteries. - Page 15 Do not use solvents or scouring agents; they may mark the displays and casings. • Do not submerge in water. • Immediately remove all low powered batteries to avoid leakage and damage. • Opening the casings invalidates the warranty. Do La Crosse Technology for repairs. repair unit. Contact...
-
Page 16: Specifications
SPECIFICATIONS Temperature measuring range Indoor: 32°F to 104°F with 0.2°F resolution: (0°C to 40°C with 0.1°C resolution). “OFL” displayed if outside this range. Outdoor: -21.9°F to 157.9°F with 0.2°F resolution: (-29.9°C to 69.9°C with 0.1°C resolution). “OFL” displayed if outside this range. Temperature checking intervals Indoor: Every 10 seconds. -
Page 17: Warranty
Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 18 The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay ground return shipping charges to the owner of the product to a USA address only.
- Page 19 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020...
- Page 20 www.lacrossetechnology.com FCC ID: OMO-01RX (WEATHER STATION) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
