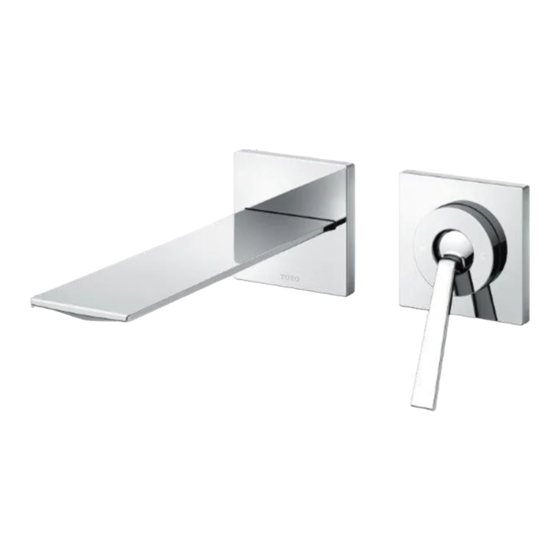

Operation Manual Wall-Mounted Single Handle Faucet (Embedded Type) TLP02309 Model Number TLP02310 Introduction Safety Precautions ....1-4 Names of Parts ......5 How to Use How to use ........ 6-8 Maintenance Daily Care ........ 9-11 Periodic Checks ....12-13 What to Do? Thank you for choosing the Wall-Mounted Single Handle Faucet (Embedded Type).
Safety Precautions (Be sure to follow all precautions for safety sake.) Read the section on “Safety Precautions” thoroughly to ensure proper use. WARNING ●Read this manual carefully and keep it where it is easily available. ●This manual employs various indications in order to install the product safely and Do not directly touch the left side of the handle cover.
Page 13
CAUTION CAUTION Do not subject the product to strong force or impact. Do not use cleaning agents other than neutral detergent. Otherwise, the product may break and leak water that may wet (Refer to page 11.) household articles and cause damage to your property. If you use cleaning agents other than neutral detergent, the faucet may discolor or break.
Names of Parts How to Use How to adjust the temperature Turn the lever handle. Lever Cold water comes out if you turn the lever handle handle to the right of center. If you turn it to the left, the water temperature rises gradually. Cold water Hot water Right...
Page 15
To use cold/hot water Open and close the Pop-up waste (only when the Pop-up waste are mounted). Lift the lever handle. Pull the pulling bar. Water comes out. At the highest position, the flowrate becomes the maximum. The Pop-up waste close and water can be accumulated in a wash bowl.
Daily Care In order for the product to exert its full performance and to be used Wiping with a cloth in a sanitary condition, perform care daily. Care for the water discharge port ●Slightly dirty Soak a piece of cloth in cold or lukewarm water, wring well and wipe away dirt 1.
Periodic Checks For safe and comfortable use, please conduct the following checks. Notes Looseness of the product (More than twice a year) Do not use the materials that may break the faucet. ・ Acidic detergents, chlorine bleaches and Check for any parts that seem alkali detergents abnormal such as being loose The faucet surface may discolor or the plastic part(s)
Troubleshooting How to stop water in an emergency How to anchor the spout In case of an emergency such as leaking water around the piping or water does not stop flowing, close the water shutoff valve or the main valve as shown in figure below. Hexagonal wrench Main valve Main valve...
[Before asking for repairs, please check “Troubleshooting” (Page 14).] Replacement of part(s) The indents are worn and the friction Parts and products that are dismounted for repairs belong to TOTO. area becomes large. Therefore, a force somewhat stronger than when first using the product is needed.
Page 20
[Information we want to know] (1) Address, name and telephone number (2) Name of product (3) Model number (4) Date of installation (5) Details of trouble and status of abnormality (From where water leaks, etc.) TLP02309 Model number (6) Desired date of visit 06401E0001B...
