Toto TLP02309 Installation Manual

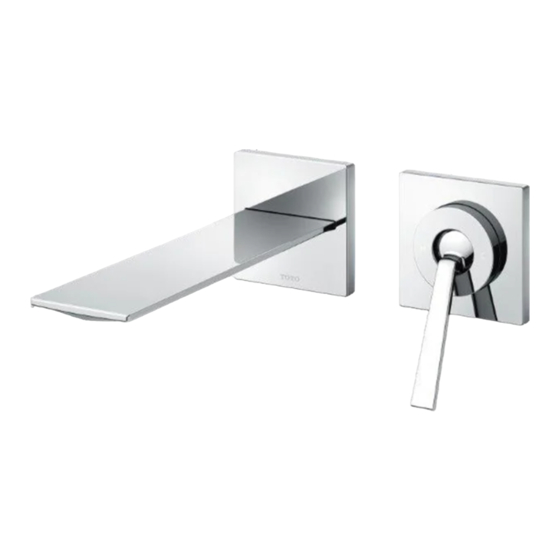

Wall-mounted single handle faucet (embedded type)
Hide thumbs
Also See for TLP02309:
- Operation manual (40 pages) ,
- Installation manual (8 pages) ,
- Manual (8 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toto TLP02309
Summary of Contents for Toto TLP02309

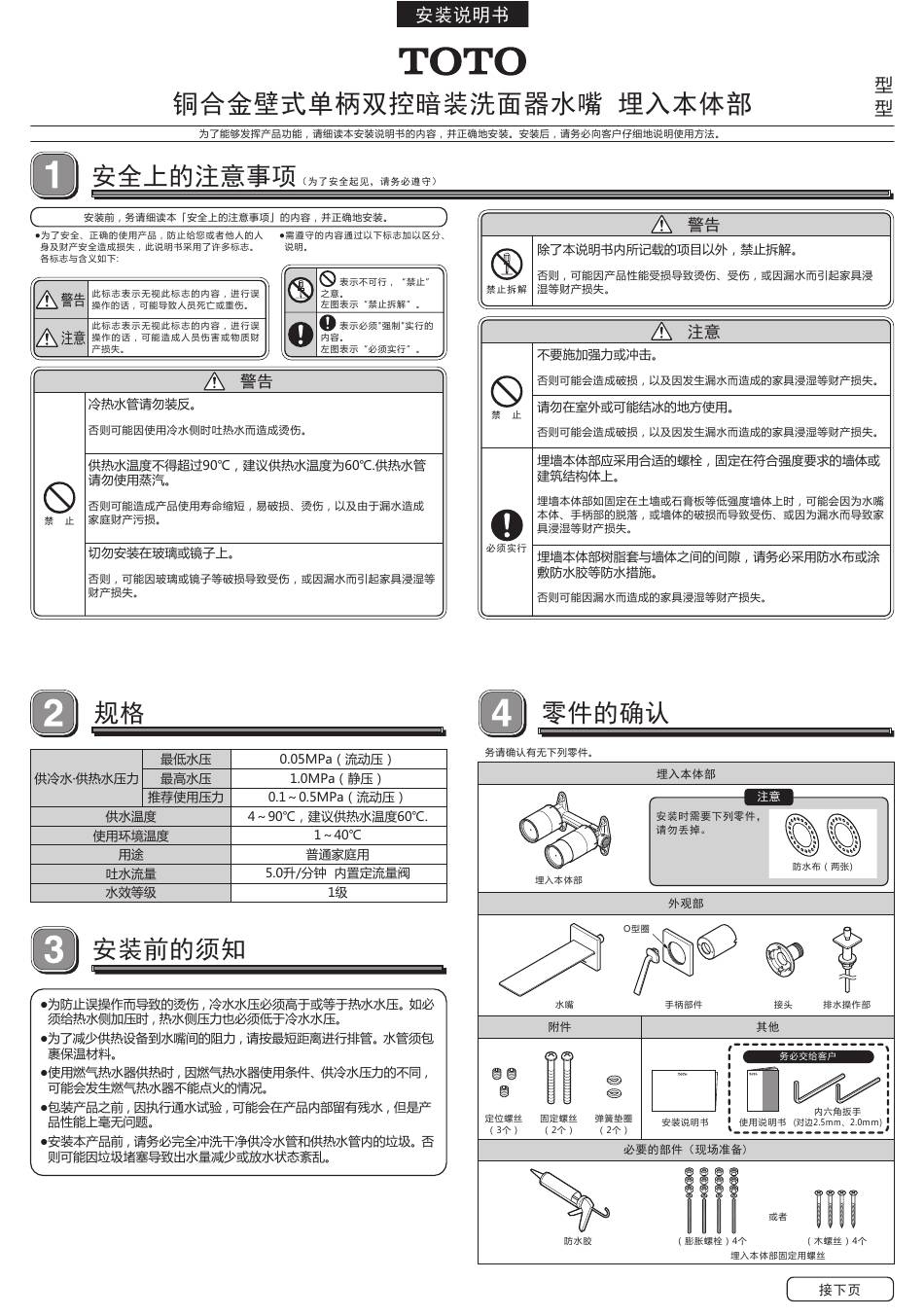

- Page 1 03N50E 2017.8 TLP02309 TLP02310...
- Page 2 TLP02309 (LS915,LS916) 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13 TLP02310 (LS915,LS916) 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13 TLP02309 16.5 (mm) φ56±4 C G1/2 H G1/2 70±13 TLP02310 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13...
- Page 3 120mm 70±13 ...
- Page 5 03N50E Installation Manual 2017.8 TLP02309 Wall-Mounted Single Handle Faucet (Embedded Type) TLP02310 Install the product according to this Installation Manual so that the product fulfills its function. When the installation is over, fully explain how to use the single handle faucet to the customer.
-
Page 6: Continued On The Next Page
Completion Drawing TLP02309 (LS915,LS916) 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13 TLP02310 (LS915,LS916) 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13 Completion Drawing TLP02309 16.5 (mm) φ56±4 C G1/2 H G1/2 70±13 TLP02310 16.5 φ56±4 (mm) C G1/2 H G1/2 70±13... - Page 7 Installation Procedure 1 Before anchoring the product Connect the cold-/hot-water supply pipes. clean the inside of cold-/hot-water supply pipes. Embedded part (1) Raise the cold-/hot-water pipes. Cold-water (2) Connect the cold-/hot-water pipes Anchoring of supply to the embedded part. embedded part Cold-water Cautions supply pipe...
-
Page 8: Checking Items
Checking Items Finishing of the wall (Continued) When the installation is over, check the following items. (3) Apply the adhesive designated for the wall material to the wall bed. Curing cover Adhesive Cold-water (4) Attach the waterproof sheet to the supply curing cover and affix it to the wall bed.
