IMPORTANT SAFEGUARDS
1.
Do not join converter connection until installation is complete and AC power is supplied to the
emergency driver.
2.
This product is for use with an emergency LED lighting load and supplies 7.0 W of constant output
power to LED lamps rated from 15-56 Vdc. Operates emergency LED load in the emergency
mode for a minimum of 90 minutes.
3.
Make sure all connections are in accordance with the NEC and any local regulations.
4.
To reduce the risk of electric shock, disconnect both normal and emergency power supplies and
converter connector from the emergency driver before servicing.
5.
This emergency driver is suitable for factory or field installation inside a suitable lighting fixture.
6.
Do not use outdoors. This product is suitable for use in damp locations where the ambient
temperature is 5°C minimum, +55°C maximum. Product is not suitable for heated air outlets and
wet or hazardous locations.
7.
An unswitched AC power source is required (120-277 VAC, 50/60 Hz).
8.
Do not install near gas or electric heaters.
9.
Do not attempt to service the battery. A sealed, no-maintenance battery is used that is not field
replaceable. Contact Dual-Lite for information on service.
10. The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
11. Do not use this product for other than intended use.
12. Servicing should be performed by a qualified service personnel.
13. Equipment should be mounted in locations and at heights where it will not be subjected to
tampering by unauthorized personnel
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other
reproductive harm. Thoroughly wash hands after installing, cleaning, or otherwise touching this product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
CAUTION: DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION.
P/N 93080541
When using electrical equipment, basic safety precautions should
always be followed including the following.
READ AND FOLLOW
ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
required to correct the interference at his own expense.
INSTALLER:
CLASS 2 OUTPUT

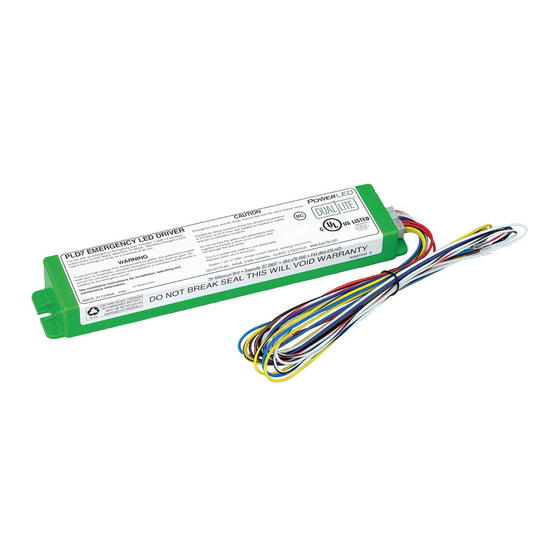

Emergency LED Battery Pack Installation,
Operation, and Service Instructions
PLD7
Advertisement
Related Manuals for Current Dual-Lite PLD7
Summary of Contents for Current Dual-Lite PLD7
- Page 1 PLD7 Emergency LED Battery Pack Installation, Operation, and Service Instructions P/N 93080541 CLASS 2 OUTPUT IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following. READ AND FOLLOW ALL SAFETY INSTRUCTIONS Do not join converter connection until installation is complete and AC power is supplied to the emergency driver.
- Page 2 AC driver. 3. Ensure the output current of the LED driver does not exceed 1.6 Amps. This is the current into the blue wire. 4. Ensure the LED fixture’s rated efficacy is equal to or greater than 65 lm / watt. This is to ensure that the LED fixture can be mounted at or below the maximum rated mounting height of 25.8 ft.
- Page 3 SUPPLIED TEST SWITCH/ INDICATOR LIGHT LARGE BUSHING "STATUS" PLASTIC SW INDICATOR LABEL EM DRIVER TUBE TY-WRAP SWITCH INDICATOR MALL SHING M DRIVER 93071446 SMALL BUSHING ILLUSTRATION 3 UL SWITCH 93071865 COVER "CAUTION" Mounting Height: This product meets or exceeds the NFPA minimum light LABEL SHING requirements with all loads, down to the smallest rated lamp load, at heights...
- Page 4 EMERGENCY BACK-UP ONLY CONVERTER BATTERY CONN. BLACK EM LED VIOLET (+) VIOLET (+) TEST SW/LED INDICATOR BROWN (-) BROWN (-) DRIVER WHITE COMMON WHT/BLK BLUE YEL/BLK YELLOW LED (+) LED LOAD LED (-) NOTE: For short term testing of the emergency function, the battery must be charged for at least one hour. The emergency driver must be charged for at least 24 hours before conducting a long term test.
